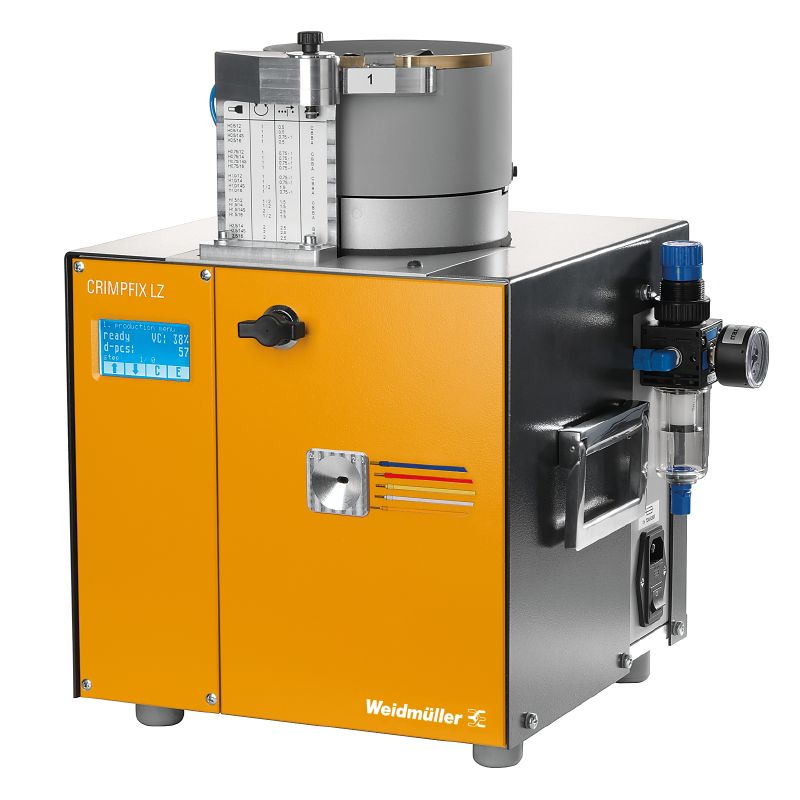

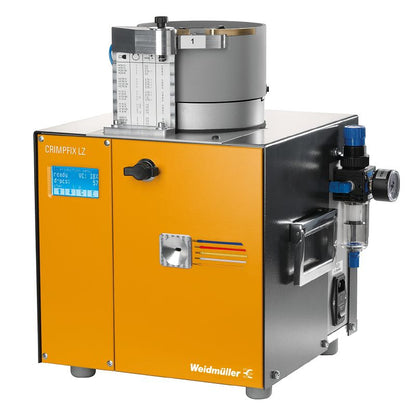

9027310000 - Automatic Crimping Tool for Ferrules, 8mm Length

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the CRIMPFIX LZ, an advanced automatic tool for stripping and crimping twin wire-end ferrules This tool meets ROHS standards and weighs 31,000 grams, ensuring quality and compliance It operates efficiently using compressed air within a pressure range of 5 to 55 bar and connects electrically at 100-240 V, 50/60 Hz, consuming 110 VA of power Capable of processing wire-end ferrules with a cross-section from 0.

5 mm² to 15 mm², it effectively strips wires sized 2 x 05 to 2 x 15 mm², with a crimping length of 8 mm With a rapid operation pulse time of around 1 second, the CRIMPFIX LZ is an ideal solution for your mechanical crimping tasks.

Features and Benefits:

•Automatic stripping and crimping functionality.

•Compressed-air connection with a range of 5 - 5.5 bar.

•Electropneumatic drive system.

•Efficiency with a pulse time of approximately 1 second.

Specifications:
