Description:

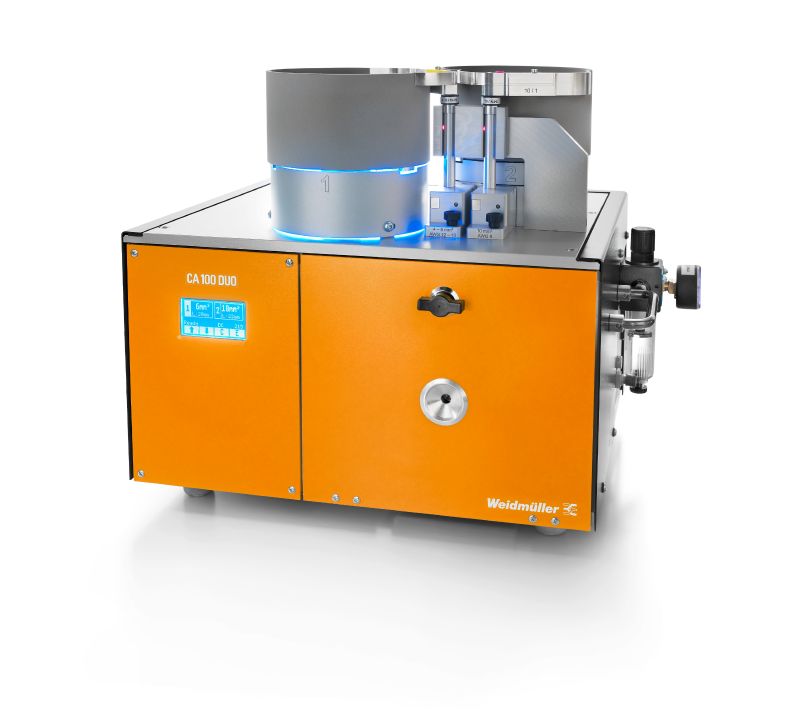

Introducing the CA 100 DUO S, an advanced automatic machine tailored for both stripping and crimping tasks Meeting RoHS compliance, this machine is equipped with a compressed-air connection that functions at a pressure of 5 to 55 bar It can efficiently crimp wires ranging from a minimum cross-section of 4 mm² to a maximum of 10 mm², with an adjustable crimping length of 6 to 18 mm The electrical requirements include an input of 100-240 V at 50/60 Hz, consuming 100 VA of power.
For added ease of use, the machine comes with a plastic collar and operates using electropneumatic technology With a pulse time of about 3 seconds, it effortlessly manages stripping tasks within the range of 4 to 6 mm².
Features and Benefits:
•RoHS compliant with exemption.
•Equipped for automatic stripping and crimping.
•Includes consumables with plastic collar.
•Electropneumatic drive system.
•Used for automatic wire stripping and crimping.
Specifications:
| Depth | 550 mm |
| Height | 440 mm |
| Width | 415 mm |
| Crimping range, max. | 10 mm² |
| Crimping range, min. | 4 mm² |
| Stripping range | 4 - 6 mm² (10 mm² opt.)/ AWG 12-10 (AWG 8 opt.) |
| Pulse time | approx. 3 s |
| Electrical connection | 100-240 V / 50/60 Hz / 100 VA |
| Compressed-air connection | 5 - 5.5 bar |
| Crimping length | 6 - 18 mm |
