Description:

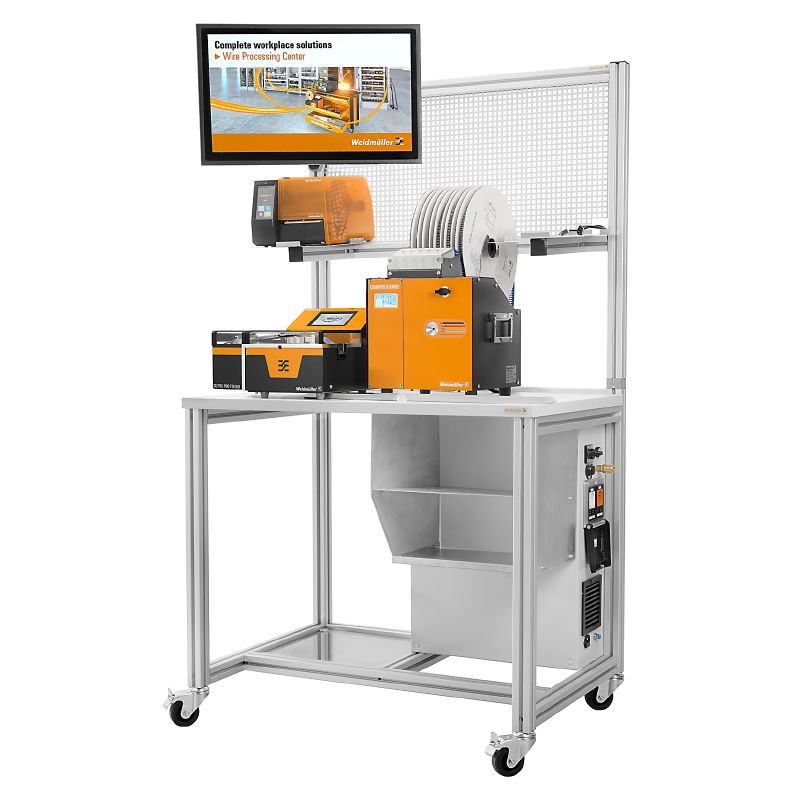

Introducing the WIRE PROCESSING CENTER, designed to automate essential tasks such as cutting, stripping, and crimping at a voltage of 115V This advanced machine features a thermotransfer printer and is compatible with software solutions to enhance its wire processing capabilities Please note that this product is currently discontinued and not available for purchase.
Features and Benefits:
•Automatic machines for wire processing.
•Thermotransfer printing capability.
•PC compatibility with various Windows operating systems.
•LCD display for easy monitoring.
•Touch display for user-friendly operation.
•Mobile use with panel ready for additional connections.
Specifications:
| Depth | 750 mm |
| Height | 1800 mm |
| Width | 1100 mm |
| Net weight | 65,000 g |
| Supply voltage | 100…240 V AC |
| Compressed-air connection | 5.5 bar |
| Print resolution, max | 300 DPI |
| Printing speed | 150 mm/s |
| Length pre-selection, min | 2 mm |
| Length pre-selection, max | 999,999 mm |
| Insertion length, min | 27 mm |
| Stripping range | 0.5 - 2.5 mm² (~AWG 20-14) |
| Wire end ferrules cross-section, min | 0.5 mm² |
| Wire end ferrules cross-section, max | 2.5 mm² |
| Flexible/solid individual conductors | max. 10 mm² / max. 2.5 mm² |
| Load capacity | max. 180 kg |
| Type of display | 15-inch touchscreen |
| Indicator display | LCD display |
| Drive | electrical |
| Electrical connection | 100 - 240 V AC / 50/60 Hz |
