Description:

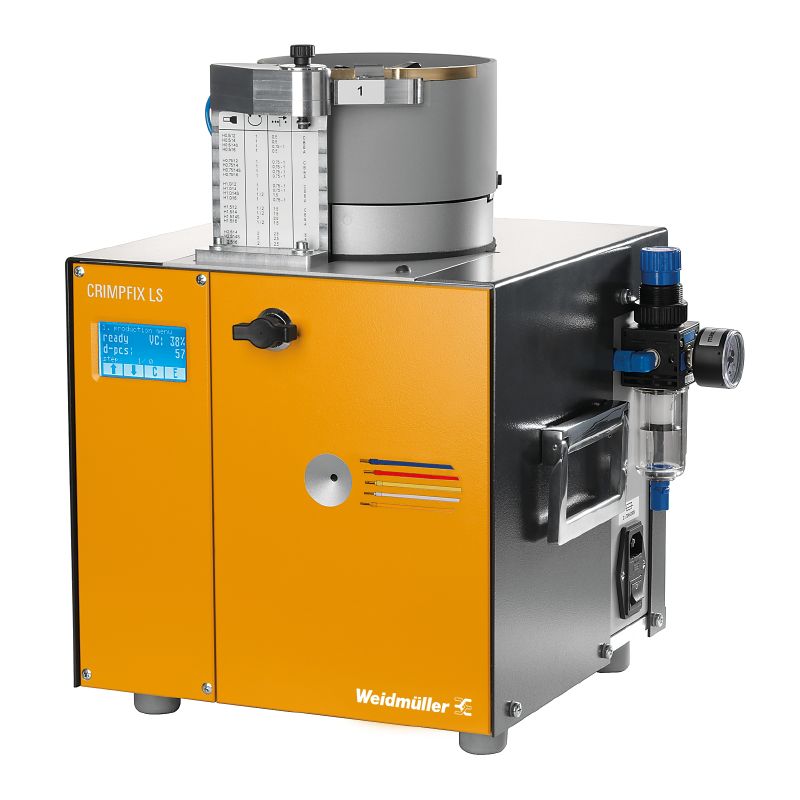

Introducing the CRIMPFIX LS PZ3, a cutting-edge tool tailored for the automatic stripping and crimping of cables Complying with various environmental standards like RoHS, this innovative device utilizes an electropneumatic drive for optimal efficiency It's specifically designed to work with loose cable lugs, featuring a versatile stripping range for wires from 05 mm² to 25 mm² (equivalent to AWG 20-14).
Plus, it includes a compressed-air connection that operates within a pressure range of 5 to 55 bar, ensuring consistent and dependable performance.
Features and Benefits:
•Automatic stripping and crimping capabilities.
•Electropneumatic drive for enhanced efficiency.
•Compatible with loose cable lugs.
•Compressed-air connection (5 - 5.5 bar).
Specifications:
| Order No. | 9025300000 |
| GTIN (EAN) | 4008190380335 |
| Depth | 330 mm |
| Depth (inches) | 12.992 inch |
| Height | 460 mm |
| Height (inches) | 18.11 inch |
| Width | 390 mm |
| Width (inches) | 15.354 inch |
| Net weight | 35,000 g |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption | 6c, 7a, 7cI |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | d2df479e-2b79-4e98-adc7-b03577df98ae |
| Electrical connection | 100-240 V / 50/60 Hz / 110 VA |
| Crimping length | 6/8/10 mm |
| Length of wire-end ferrule | 12/14/16 mm |
| Pulse time | approx. 1 s |
| Stripping range | 0.5 - 2.5 mm² (~AWG 20-14) |
| Wire end ferrules cross-section, max. | 2.5 mm² |
| Wire end ferrules cross-section, min. | 0.5 mm² |
| ETIM Classifications | {'ETIM 6.0': 'EC002778', 'ETIM 7.0': 'EC002778', 'ETIM 8.0': 'EC002778', 'ETIM 9.0': 'EC002778', 'ETIM 10.0': 'EC002778'} |
| ECLASS Classification | {'ECLASS 9.0': '17-13-01-01', 'ECLASS 9.1': '17-13-01-01', 'ECLASS 10.0': '17-13-01-01', 'ECLASS 11.0': '17-13-01-01', 'ECLASS 12.0': '17-13-01-01', 'ECLASS 13.0': '17-13-01-01', 'ECLASS 14.0': '17-13-01-01', 'ECLASS 15.0': '17-13-01-01'} |
