Description:

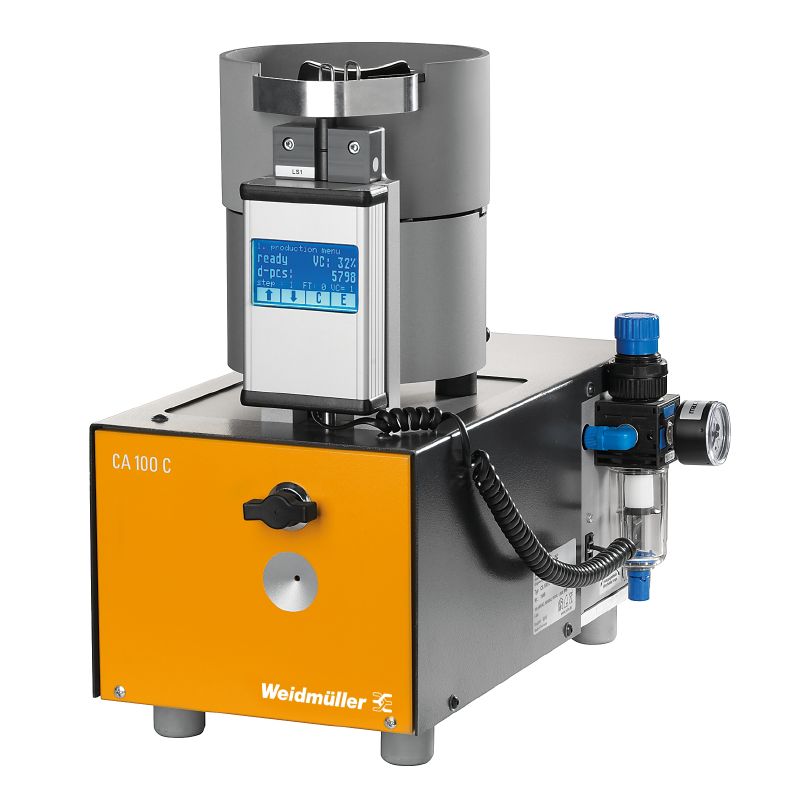

Introducing the CA 100 C, an automatic stripper and crimper expertly designed for handling loose cable lugs, whether they include plastic collars or not This versatile tool effectively processes wire end ferrules with a cross-sectional area of 014 mm² to 034 mm² It operates efficiently on electrical inputs of 100-240 V at 50/65 Hz and comes equipped with a compressed-air connection that operates at 5 bar.
Meeting RoHS standards, it ensures safety by using lead as a hazardous substance With a rapid crimping cycle that takes about 15 seconds, it streamlines your wiring tasks for optimal productivity.
Features and Benefits:
•Automatic operation for efficiency.
•Crimping length options of 6/8 mm.
•Electropneumatic drive for reliable performance.
•Suitable for automatic stripping and crimping of electrical connections.
Specifications:
| Depth | 280 mm |
| Height | 390 mm |
| Width | 410 mm |
| Net weight | 23,000 g |
| Compressed-air connection | 5 bar |
| Electrical connection | 100-240 V / 50/65 Hz |
| Stripping range | 0.14 - 0.34 mm² (~AWG 26 - 22) |
| Length of wire-end ferrule | 10/12 mm |
| Pulse time | approx. 1.5 s |
| Wire end ferrules cross-section, max. | 0.34 mm² |
| Wire end ferrules cross-section, min. | 0.14 mm² |
| RoHS Compliance Status | Compliant |
| REACH SVHC | Lead 7439-92-1 |
