2580000000 - Automatic Wire Stripping & Crimping Tool, 0.5-2.5 mm²

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

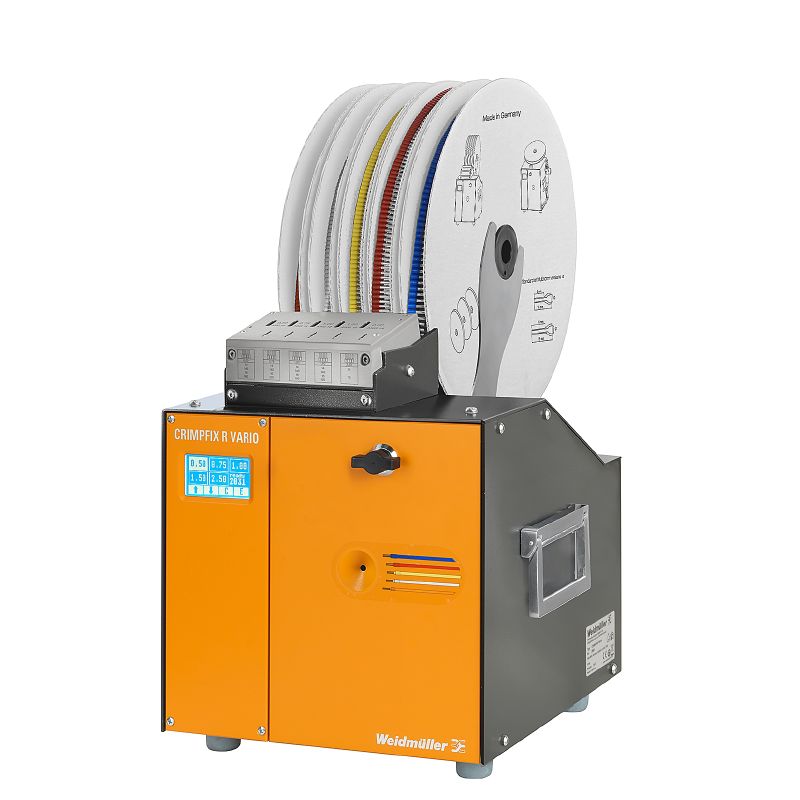

Introducing the CRIMPFIX R VARIO, an advanced automatic tool engineered for wire processing efficiency Adhering to RoHS standards, this device ensures compliance with environmental safety regulations It operates using an electropneumatic mechanism and requires a compressed-air supply of 5 to 55 bar This versatile tool can handle wire-end ferrules with crimp lengths of 8 or 10 mm, while accommodating wire sizes ranging from 0.

5 mm² to 25 mm² (approximately AWG 20-14) With a pulse time of around 2 seconds and a minimum insertion length of 27 mm, it guarantees precise performance The electrical connection operates between 100 - 240 V at 50/60 Hz, ensuring reliable functionality for your wire processing needs.

Features and Benefits:

•Compliant with RoHS regulations.

•Electropneumatic drive for efficient operation.

•Operates on compressed-air connection of 5 - 5.5 bar.

•Supports crimp lengths of 8/10 mm.

•Stripping range for wire sizes from 0.5 mm² to 2.5 mm².

•Pulse time of approximately 2 seconds.

•Minimum insertion length of 27 mm.

Specifications:
