9028510000 - 22mm Automatic Stripping Tool for 0.05-6.0 mm² Wires
9028510000 - 22mm Automatic Stripping Tool for 0.05-6.0 mm² Wires
SKU: SKU: 9028510000 Download PDF
- 9028510000 - 22mm Automatic Stripping Tool for 0.05-6.0 mm² Wires
- 9028510000 - 22mm Automatic Stripping Tool for 0.05-6.0 mm² Wires
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:

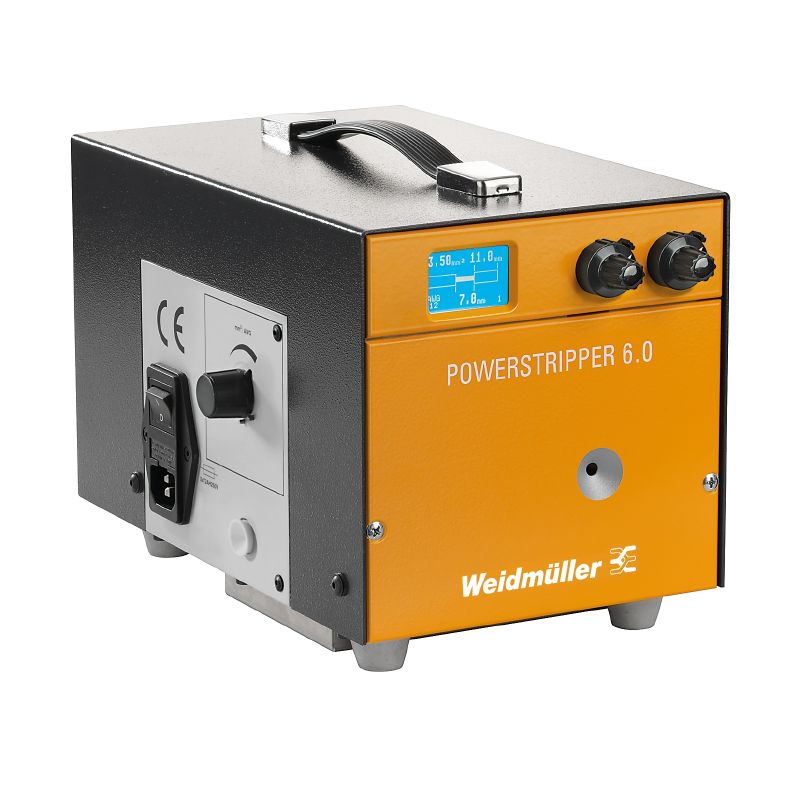

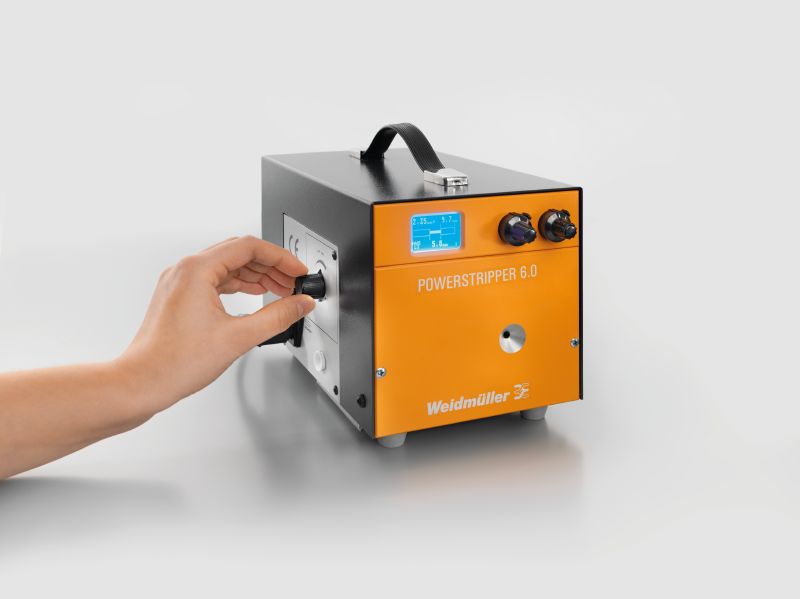

Introducing the POWERSTRIPPER 60, an advanced automatic stripping tool perfect for efficient conductor preparation This device is RoHS compliant and adheres to various environmental regulations It is designed to strip conductors with a minimum length of 22 mm and accommodates wire sizes ranging from 005 to 60 mm² (AWG 30-10) With a quick stripping time of around 05 seconds per operation, this tool enhances productivity across a variety of electrical applications.
Features and Benefits:
•Automatic stripping capability for greater efficiency.
•Stripping range of 0.05 - 6.0 mm².
•Electrical drive with a power supply of 100-240 V.
•Compliant with environmental regulations.
Specifications:
| Depth | 295 mm |
| Height | 190 mm |
| Width | 190 mm |
| Net weight | 7,500 g |
| Conductor length, min. | 22 mm + stripping length |
| Electrical connection | 100-240 V / 50/60 Hz / 70 VA |
| Outer diameter of conductor max. | 5 mm |
| Pull-off length | 3-20 mm |
| Pulse time | approx. 0.5 s |
| Classification ETIM 6.0 | EC002778 |
| Classification ETIM 7.0 | EC002778 |
| Classification ETIM 8.0 | EC002778 |
| Classification ETIM 9.0 | EC002778 |
| Classification ETIM 10.0 | EC002778 |
| ECLASS 9.0 | 17-13-01-01 |
| ECLASS 9.1 | 17-13-01-02 |
| ECLASS 10.0 | 17-13-01-02 |
| ECLASS 11.0 | 17-13-01-01 |
| ECLASS 12.0 | 17-13-01-01 |
| ECLASS 13.0 | 17-13-01-01 |
| ECLASS 14.0 | 17-13-01-01 |
| ECLASS 15.0 | 17-13-01-01 |
