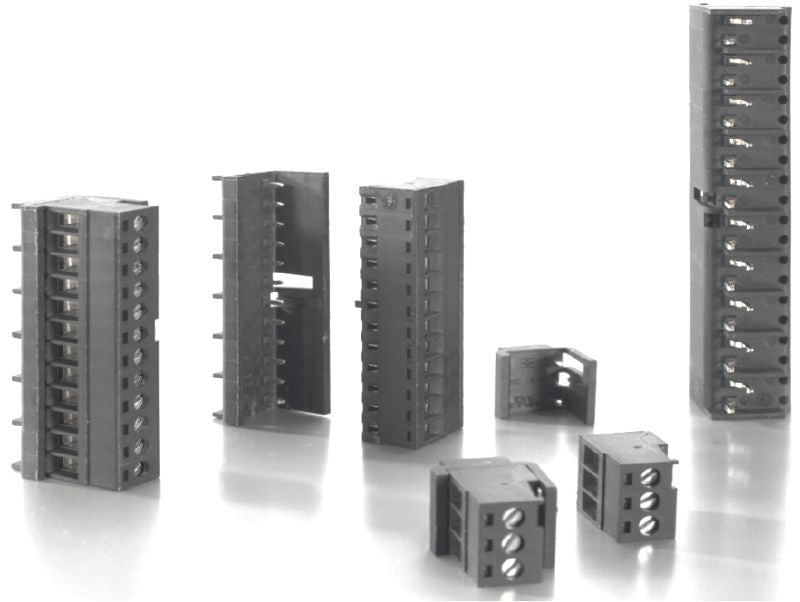

2761050000 - Black RoHS Compliant Insulating Set with UL Approvals (Pack of 40)
2761050000 - Black RoHS Compliant Insulating Set with UL Approvals (Pack of 40)
SKU: SKU: 2761050000 Download PDF
- 2761050000 - Black RoHS Compliant Insulating Set with UL Approvals (Pack of 40)
- 2761050000 - Black RoHS Compliant Insulating Set with UL Approvals (Pack of 40)
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Introducing the SET BSCZ/SSC, a product meticulously engineered with a strong emphasis on both compliance and performance It adheres to RoHS regulations and holds specific UL approvals, showcasing its dependable nature This item comes in a sophisticated black hue and is crafted from premium insulating materials For effortless ordering, it is systematically organized with comprehensive details to facilitate smooth processing.
Features and Benefits:
•RoHS compliant with exemption.
•Includes UL approval with certificate number E60693.
•Net weight of 21 g.
•Durable PA insulating material.
•Flammability rating of V-0.
•Tinned contact surfaces for better conductivity.
Specifications:
| Depth: | 15.7 mm |
| Height: | 25.2 mm |
| Width: | 45.03 mm |
| Operating temperature, min: | -50 °C |
| Operating temperature, max: | 120 °C |
| Rated current, max. number of poles (Tu=20°C): | 13.5 A |
| Rated current, min. number of poles (Tu=40°C): | 16.5 A |
| Rated voltage for surge voltage class / pollution degree II/2: | 600 V |
| Rated voltage for surge voltage class / pollution degree III/2: | 300 V |
| Rated impulse voltage for surge voltage class/ pollution degree II/2: | 4,000 V |
| Rated impulse voltage for surge voltage class/ pollution degree III/2: | 4,000 V |
| Insulating material: | PA |
| Contact material: | Cu-alloy |
| Contact surface: | tinned |
