1625530000 - Compact PCB Connector with Crimp Contacts, 18.8mm Depth (Pack of 250)
1625530000 - Compact PCB Connector with Crimp Contacts, 18.8mm Depth (Pack of 250)
SKU: SKU: 1625530000 Download PDF
- 1625530000 - Compact PCB Connector with Crimp Contacts, 18.8mm Depth (Pack of 250)
- 1625530000 - Compact PCB Connector with Crimp Contacts, 18.8mm Depth (Pack of 250)
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:

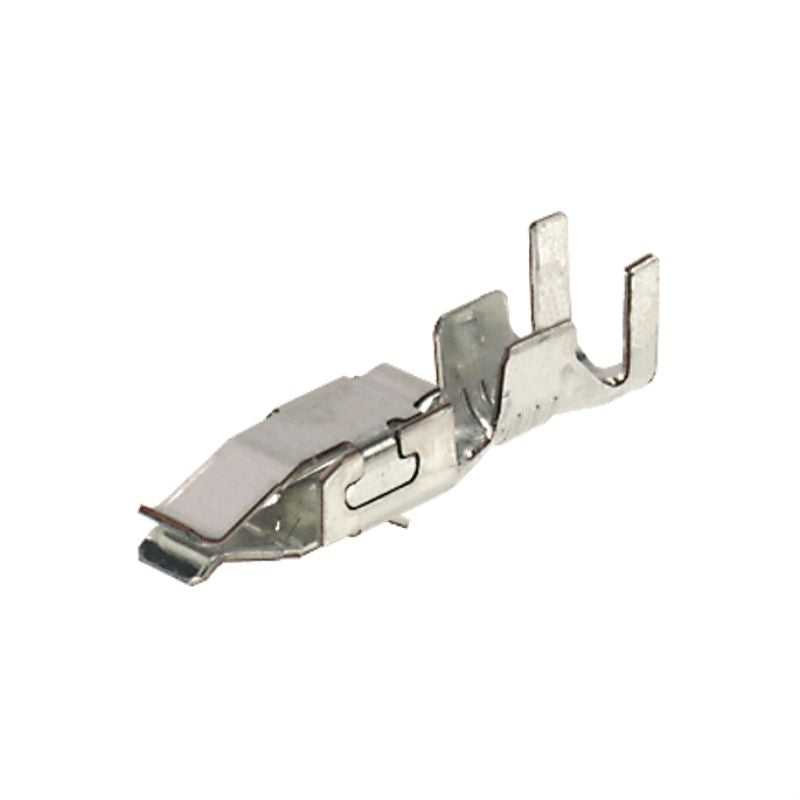

Introducing the DFFC 05-10 AG E PCB plug-in connector, expertly crafted with crimp contacts made from high-quality silver (Ag) Designed for efficiency, this connector accommodates a maximum clamping range of 1 mm² and adheres to RoHS standards for safe use Encased in practical box packaging, its compact dimensions of 188 mm in depth, 57 mm in height, and 43 mm in width make it easy to handle and install, while the lightweight design at just 0.
408 g ensures versatility in various applications.
Features and Benefits:
•Compliant without exemption for RoHS.
•Developed and manufactured following internationally recognized standards.
•Conforms to IPC-A-610 'Class 2'.

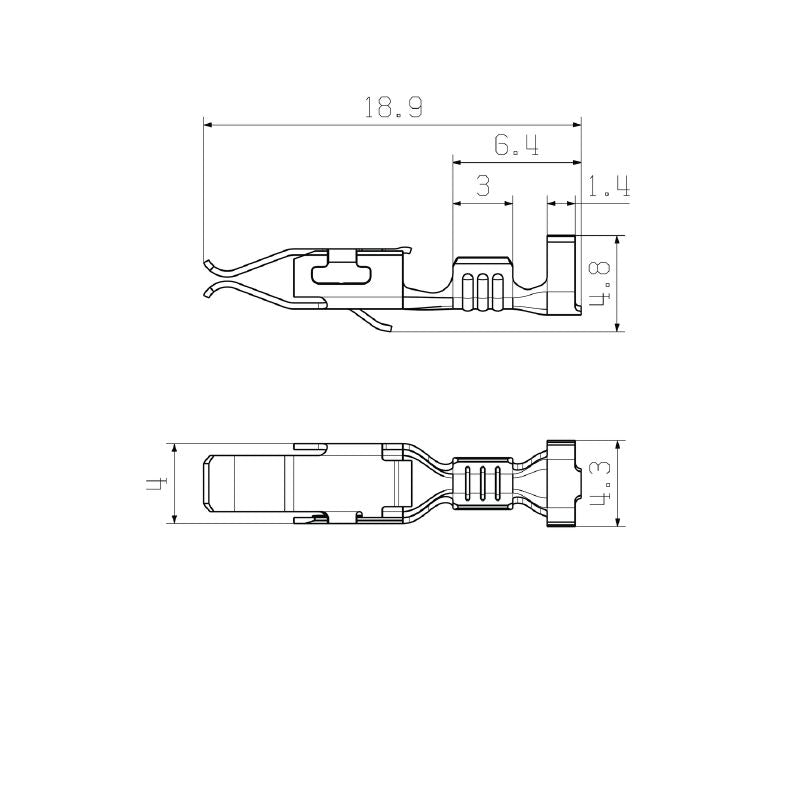

Specifications:
| Depth | 18.8 mm |
| Height | 5.7 mm |
| Width | 4.3 mm |
| Net weight | 0.408 g |
| Storage temperature, min. | -40 °C |
| Storage temperature, max. | 70 °C |
| Operating temperature, min. | -50 °C |
| Operating temperature, max. | 100 °C |
| Clamping range, min. | 0.5 mm² |
| Clamping range, max. | 1 mm² |
| Wire connection cross section AWG, min. | AWG 20 |
| Wire connection cross section AWG, max. | AWG 18 |
| Short-time withstand current resistance | 3 x 1s with 120 A |
| Tested acc. to standard | IEC 60664-1, IEC 61984 |
