Description:

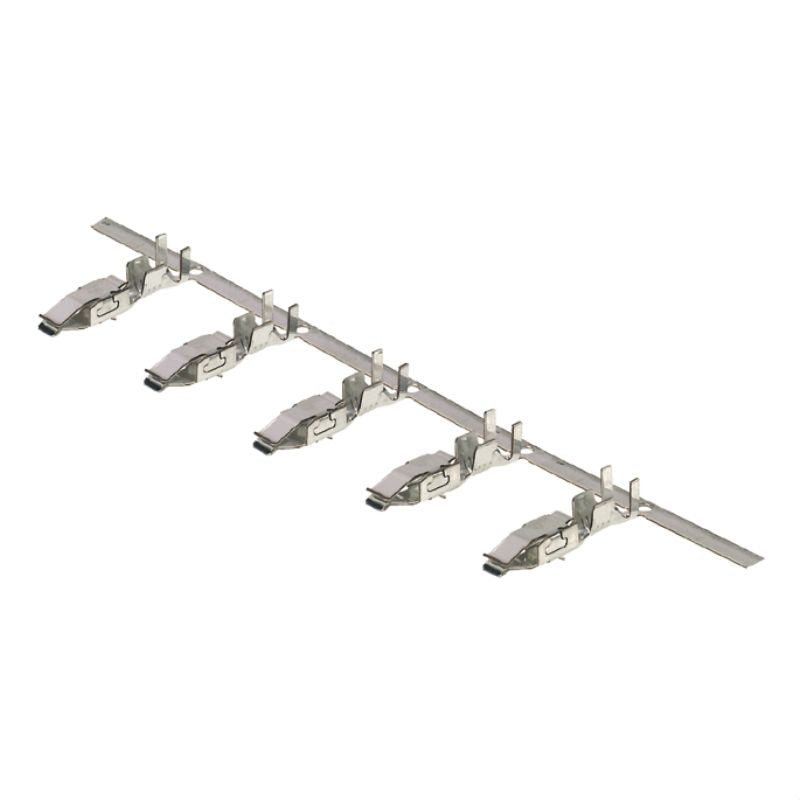

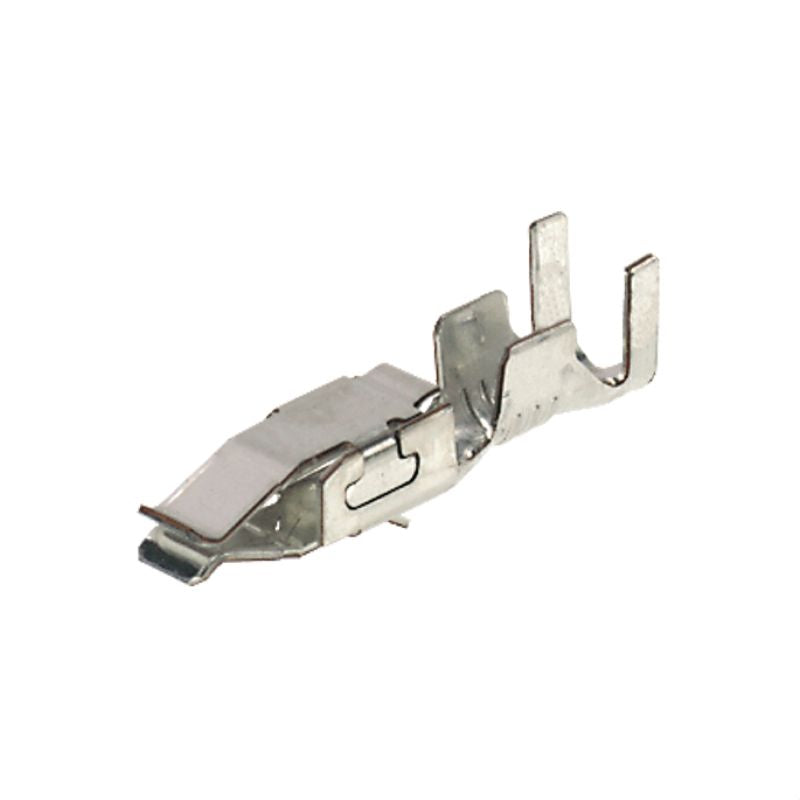

Introducing the DFFC 05-10 AG 3000, a reliable PCB plug-in connector crafted with precision This connector features robust crimp contacts made from high-quality silver (Ag), ensuring excellent conductivity It supports a clamping range of up to 1 mm² and is conveniently packaged on a reel for easy handling Additionally, it adheres to RoHS standards without any exemptions, making it an eco-friendly choice for your electronic assembly needs.
Features and Benefits:
•PCB plug-in connector with crimp contact.
•Contact material made of Cu-alloy.
•Silver contact base material.

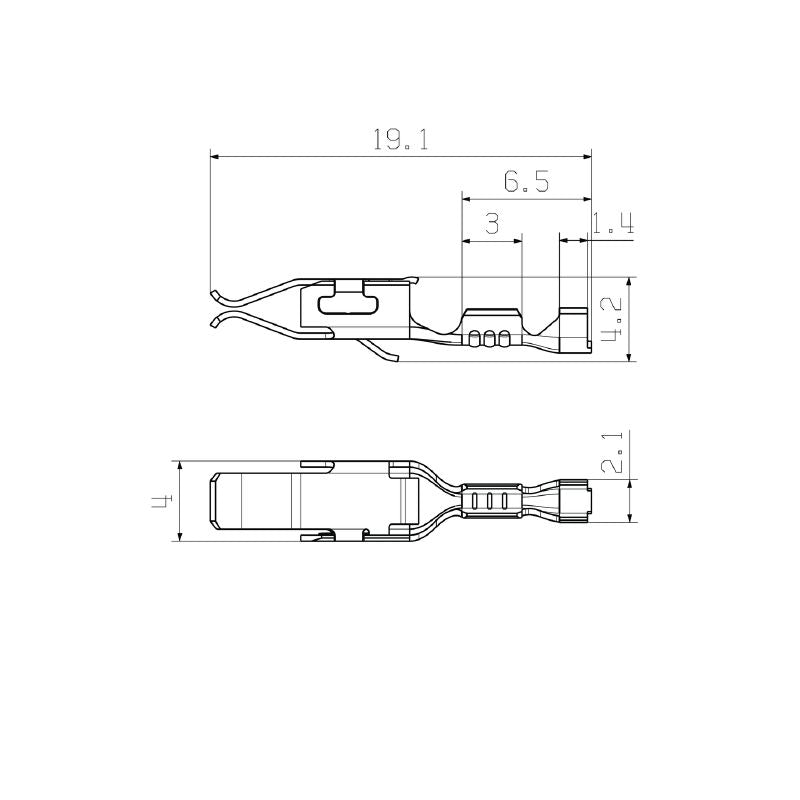

Specifications:
| Depth | 18.8 mm |
| Height | 5.7 mm |
| Width | 4.3 mm |
| Storage Temperature (Min) | -40 °C |
| Storage Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -50 °C |
| Operating Temperature (Max) | 100 °C |
| Clamping Range (Min) | 0.5 mm² |
| Clamping Range (Max) | 1 mm² |
| Wire Connection Cross Section AWG (Min) | AWG 20 |
| Wire Connection Cross Section AWG (Max) | AWG 18 |
| Short-time withstand current resistance | 3 x 1s with 120 A |
| Rated data acc. to IEC | tested acc. to standard IEC 60664-1, IEC 61984 |
| IPC conformity | Conformity: The products conform to internationally recognized standards |
