1625510000 - Silver PCB Connector 18.8mm Deep for 2.5mm² Clamping (Pack of 250)
1625510000 - Silver PCB Connector 18.8mm Deep for 2.5mm² Clamping (Pack of 250)
SKU: SKU: 1625510000 Download PDF
- 1625510000 - Silver PCB Connector 18.8mm Deep for 2.5mm² Clamping (Pack of 250)
- 1625510000 - Silver PCB Connector 18.8mm Deep for 2.5mm² Clamping (Pack of 250)
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Introducing the DFFC 15-25 AG E PCB plug-in connector, expertly designed with crimp contacts and made from high-quality silver contact material This connector supports a clamping range of up to 25 mm², ensuring reliable performance It adheres to RoHS standards and is conveniently packaged in a sturdy box Compactly sized, it measures 188 mm in depth, 57 mm in height, and 43 mm in width, weighing only 0.
444 g Ideal for various electronic applications, this connector combines functionality with quality.
Features and Benefits:
•Compliant with RoHS without exemption.
•Developed according to internationally recognized standards and norms.
•Long term storage capability for up to 36 months under specified conditions.
Specifications:

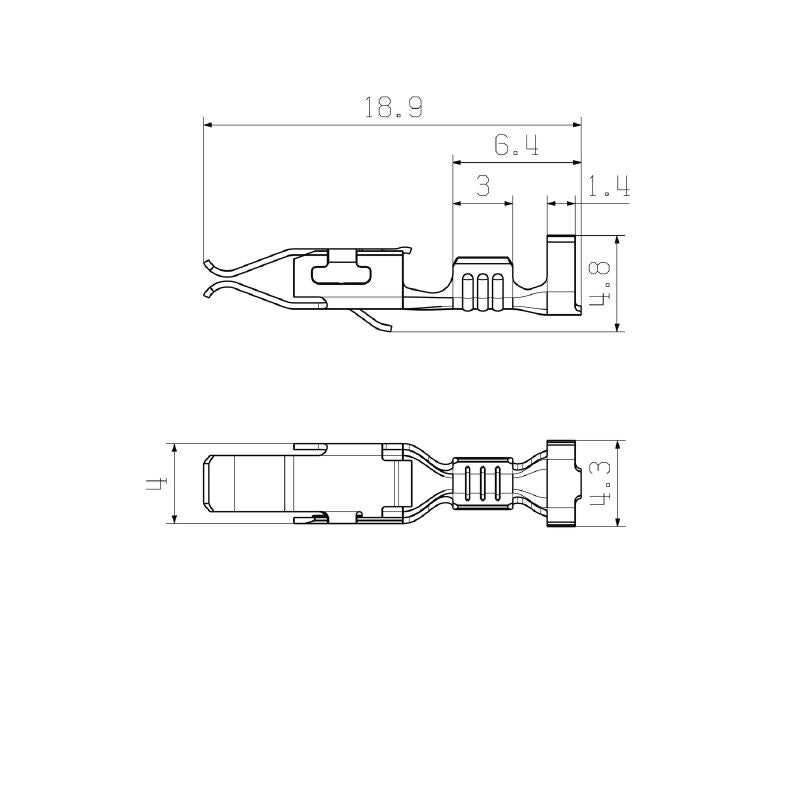

| Depth | 18.8 mm |
| Height | 5.7 mm |
| Width | 4.3 mm |
| Net weight | 0.444 g |
| Contact base material | Ag (silver) |
| Contact material | Cu-alloy |
| Contact surface | Ag (silver) |
| Storage temperature | -40 to 70 °C |
| Operating temperature | -50 to 100 °C |
| Clamping range (min) | 1.5 mm² |
| Clamping range (max) | 2.5 mm² |
| Wire connection cross section AWG (min) | AWG 16 |
| Wire connection cross section AWG (max) | AWG 14 |
| Rated impulse voltage | 0 kV |
| Short-time withstand current resistance | 3 x 1s with 120 A |
| Tested acc. to standard | IEC 60664-1, IEC 61984 |
