Description:

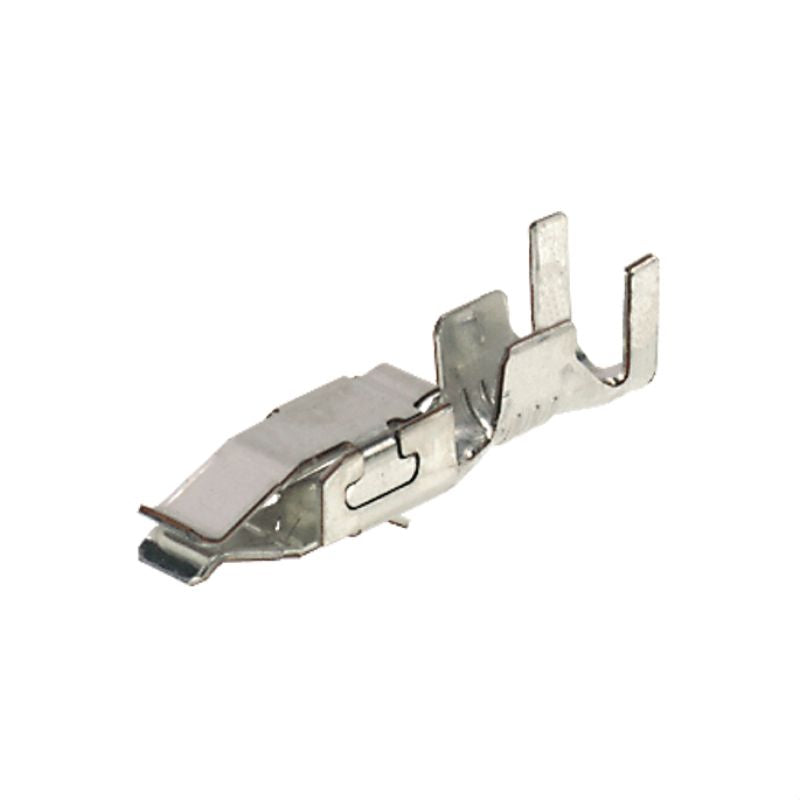

Introducing the DFFC 15-25 AG 2500, a reliable PCB plug-in connector that features crimp contacts made from silver, ensuring optimal conductivity Suitable for wire sizes up to 25 mm², this connector comes conveniently packaged in a reel, containing 2,500 units It is fully RoHS compliant and contains no SVHC materials exceeding 01 wt%, making it an eco-friendly choice With compact dimensions of 188 mm in depth, 5.
7 mm in height, and 43 mm in width, it has a net weight of just 066 grams, making it easy to integrate into your projects.
Features and Benefits:
•RoHS compliant.

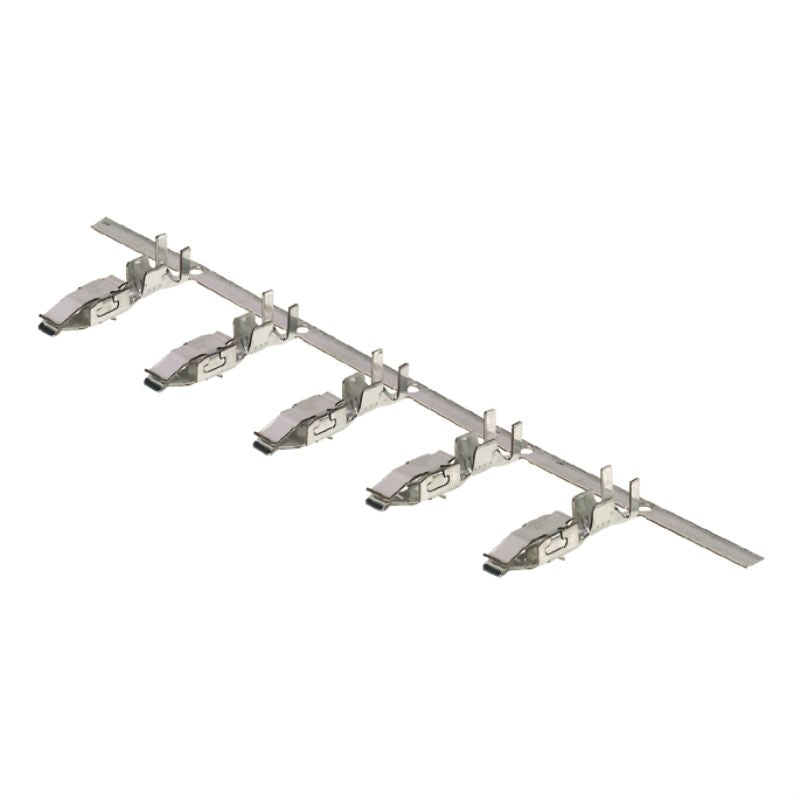

•Packaged in a reel.
•Suitable for various wire connection cross sections.
•Developed according to international standards.
Specifications:

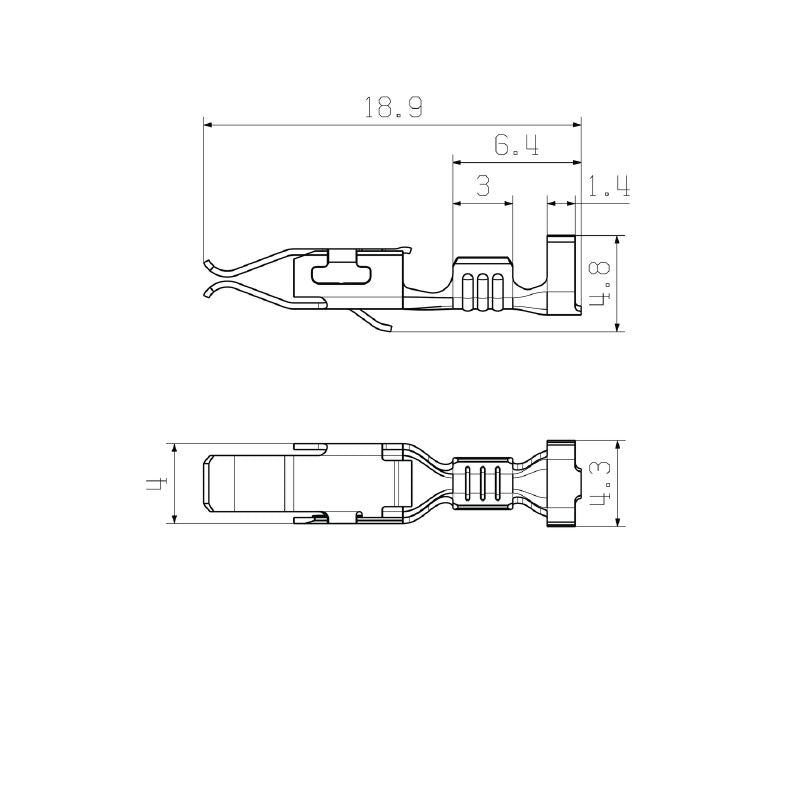

| Depth | 18.8 mm |
| Height | 5.7 mm |
| Width | 4.3 mm |
| Operating temperature, min. | -50 °C |
| Operating temperature, max. | 100 °C |
| Storage temperature, min. | -40 °C |
| Storage temperature, max. | 70 °C |
| Clamping range, min. | 1.5 mm² |
| Clamping range, max. | 2.5 mm² |
| Wire connection cross section AWG, min. | AWG 16 |
| Wire connection cross section AWG, max. | AWG 14 |
| Rated data acc. to IEC | tested acc. to standard IEC 60664-1, IEC 61984 |
| Short-time withstand current resistance | 3 x 1s with 120 A |
