2761000000 - Black RoHS-Compliant Electronics Set with Multiple Certifications (Pack of 70)
2761000000 - Black RoHS-Compliant Electronics Set with Multiple Certifications (Pack of 70)
SKU: SKU: 2761000000 Download PDF
- 2761000000 - Black RoHS-Compliant Electronics Set with Multiple Certifications (Pack of 70)
- 2761000000 - Black RoHS-Compliant Electronics Set with Multiple Certifications (Pack of 70)
Couldn't load pickup availability
Description:

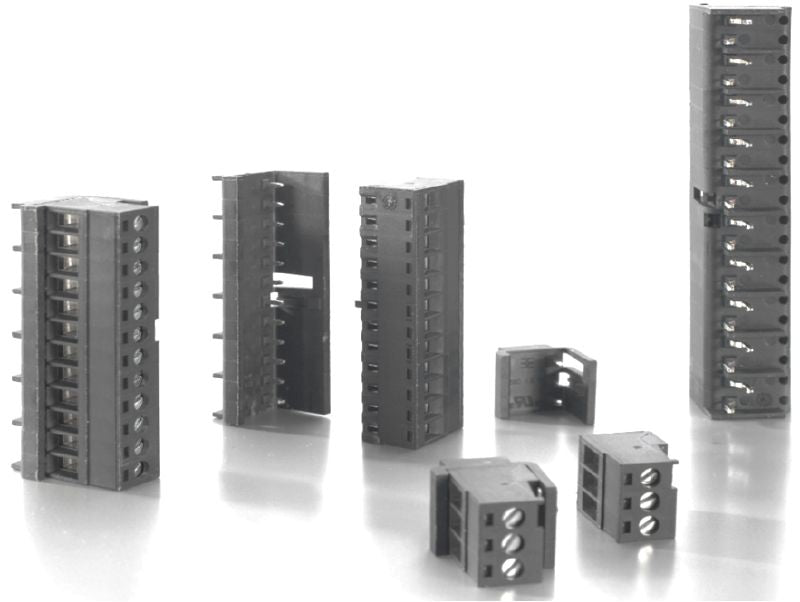

Introducing the AIM ELECTRONICS SET BSCZ/SSC 400/06/90/32 SN BK SO, a versatile product tailored for a wide range of applications and compliant with RoHS standards This item comes with multiple certifications, guaranteeing its quality and dependability It is designed with precise dimensions measured in millimeters, and the weight is listed in grams Finished in a sophisticated black color that adheres to the RAL 9011 standard, this product is not only functional but also aesthetically pleasing.
Features and Benefits:
•Compliant with RoHS exemption 6c.
•Insulating material made of PA.
•UL 94 flammability rating is V-0.
•Contact material is Cu-alloy with tinned surface.
•Operating temperature range from -50 °C to 120 °C.
Specifications:
| Depth (mm) | 15.7 |
| Height (mm) | 25.2 |
| Width (mm) | 25.03 |
| Rated current, max. number of poles (Tu=20°C) | 13.5 A |
| Rated current, min. number of poles (Tu=40°C) | 16.5 A |
| Rated voltage for surge voltage class / pollution degree II/2 | 600 V |
| Rated voltage for surge voltage class / pollution degree III/2 | 300 V |
| Rated impulse voltage for surge voltage class/ pollution degree II/2 | 4,000 V |
| Rated impulse voltage for surge voltage class/ pollution degree III/2 | 4,000 V |
