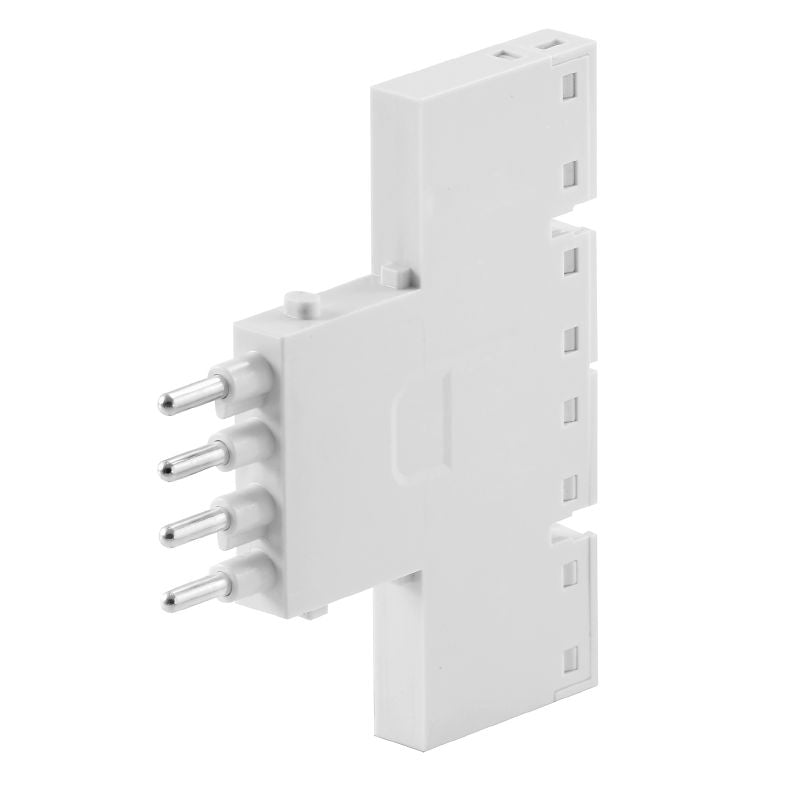

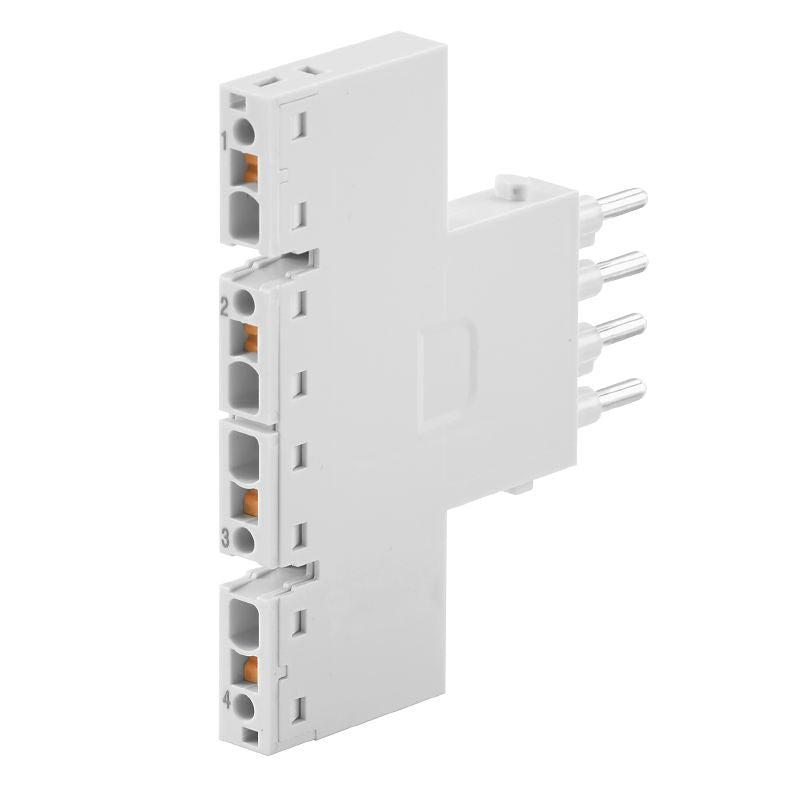

2636070000 - 4-Pole Signal Module, 250V/16A, RoHS Compliant

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the HDC MHE 4X MP signal module, expertly engineered for reliable operation at 250 V and 16 A across four poles Featuring a user-friendly PUSH IN connection system with an actuator, this module efficiently requires only 05 plug-in slots With RoHS compliance and UL file number E92202, you can trust in its quality and safety for a variety of applications.

Features and Benefits:

•Basic material is polycarbonate reinforced with glass fibre.

•Insulation resistance rated at 10 x 12 Ω.

•Plugging cycles can reach or exceed 500.

•Rated current as per DIN EN 61984 is 16 A.

•Rated impulse voltage meets DIN EN 61984 standards at 4 kV.

•Rated voltage is 250 V according to DIN EN 61984 and 600 V as per UL/CSA standards.

•Classifications follow ETIM and ECLASS standards with various versions.

•Only to be used in combination with specific mounting brackets for RockStar wall mounting housings rated IP66.

Specifications:
