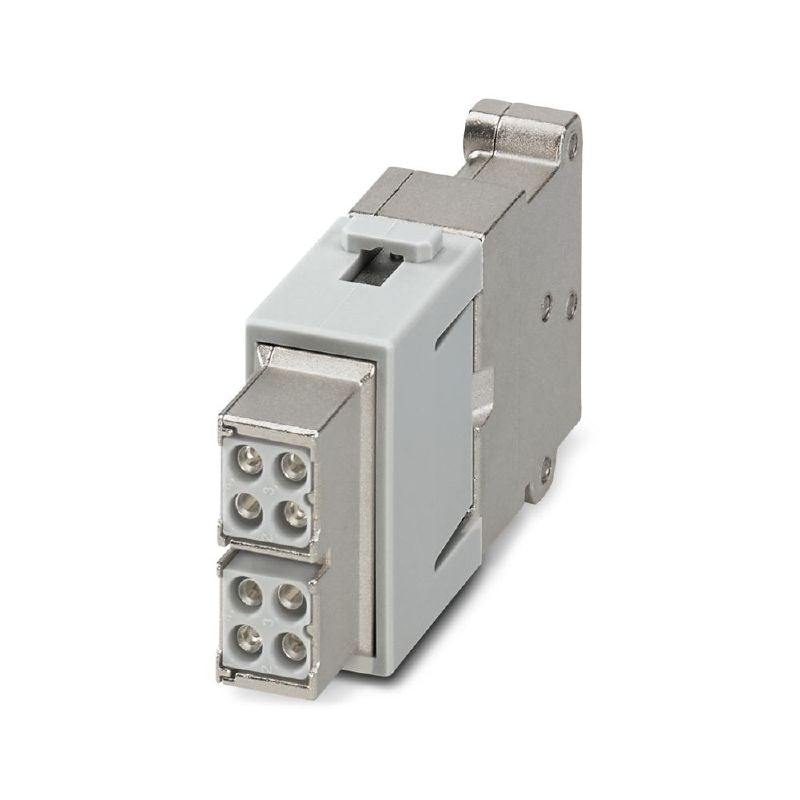

3092840000 - 8-Pole Female Data Module for 48V System, 10A Capacity

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Optimize your 48 V system with this specialized data module, capable of handling a current of 10 A This component is a reliable Category 5e option featuring 8 poles with a crimp connection Designed as a female component, it easily fits into 8 designated plug-in slots, making installation quick and efficient.

Features and Benefits:

•Constructed from high-quality polycarbonate.

•Supports a range of plugging cycles of at least 500.

•Compliant with RoHS standards.

•No SVHC above 0.1 wt% according to REACH.

•Rated for a limit temperature from -40 °C to 125 °C.

•Rated impulse voltage of 0.8 kV.

•Surge voltage category III.

•UL 94 flammability rating of V-0.

•Wide conductor cross-section compatibility from 0.14 mm² to 1.5 mm².
