3023980000 - HDC HEE 46 MP Male Insert, 111mm Depth, RoHS Compliant

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

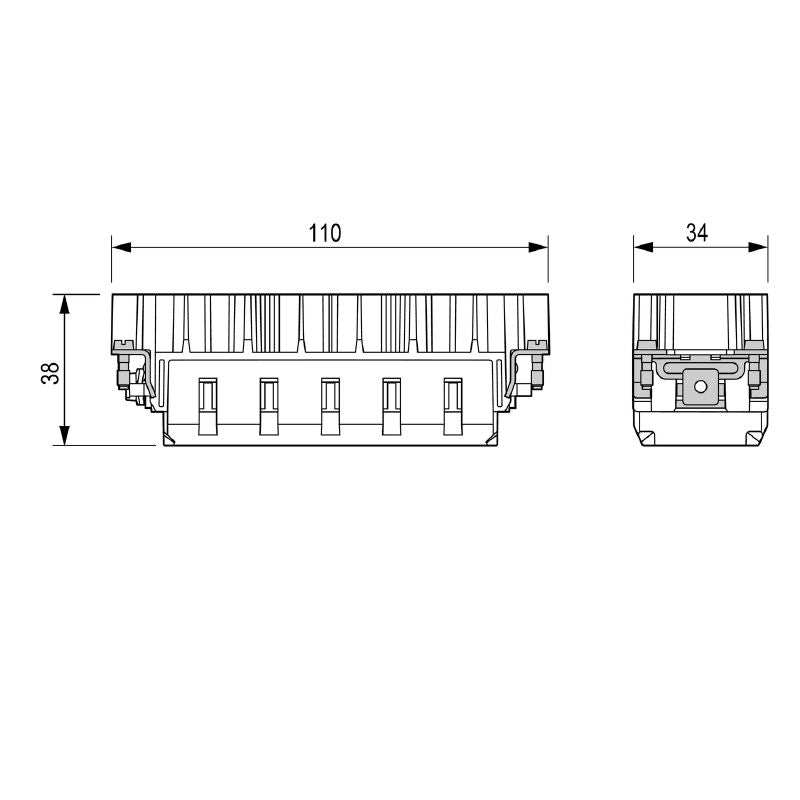

Introducing the HDC HEE 46 MP male insert, expertly crafted with 46 poles and employing a reliable PUSH IN connection method Designed with a compact installation size of 8, this insert adheres to RoHS compliance and is backed by a UL file number E310075 for your peace of mind Measuring 111 mm in depth, 38 mm in height, and 34 mm in width, this component operates efficiently within a temperature range of -40 °C to 125 °C.

Environmental safety is a priority, as it contains no SVHC materials exceeding 01 wt% Constructed from durable copper alloy, the insert also features insulation made of UL-listed, glass-fiber reinforced PC material, certified for railway applications Ideal for various industrial uses, this product combines functionality with compliance and robust construction.

Features and Benefits:

•RoHS compliant without exemptions.

•Heat resistant up to 125 °C.

•Designed for a maximum of 500 plugging cycles.

•Low smoke emission according to DIN EN 45545-2 standards.

•Insulating material is glass-fibre reinforced for durability.

Specifications:
