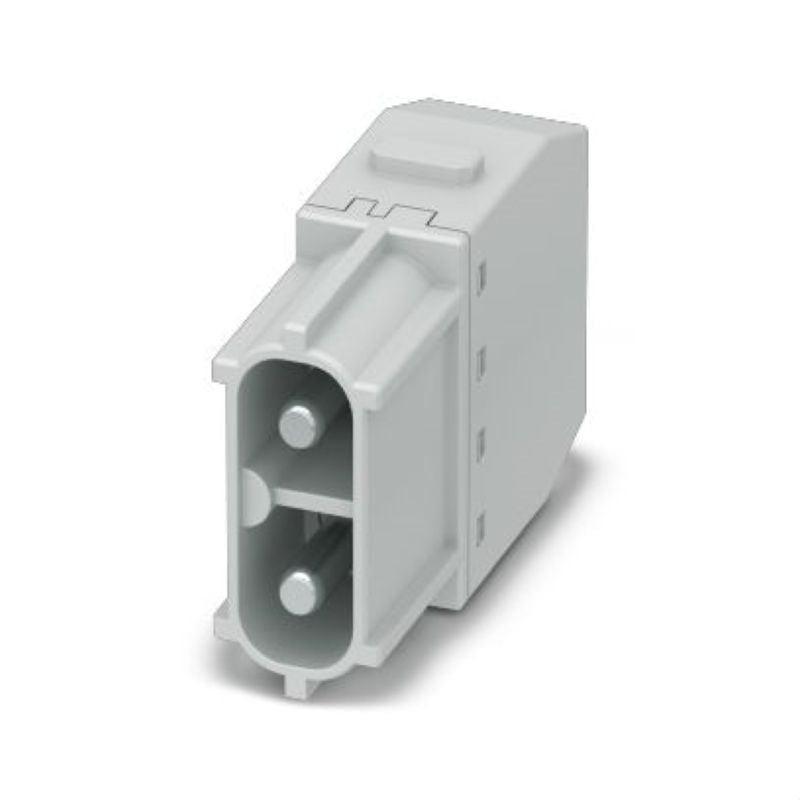

2772820000 - HDC MHX Power Module 690V 40A with Push In Connection

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the HDC MHX 2 MP power module, engineered to operate efficiently at voltages of up to 690 V and currents of 40 A This dual-pole module features a PUSH IN connection mechanism for easy installation, utilizing just one plug-in slot It carries the UL certificate number E310075 and complies with RoHS standards, with no exemptions Additionally, rest assured that this product contains no SVHC substances above 0.

1 wt% Perfect for your electrical system needs!.

Features and Benefits:

•Basic material is polycarbonate.

•Insulation resistance of 10^12 Ω.

•Can withstand a pollution severity of 3.

•Rated for 40 A current according to DIN EN 61984.

•Rated impulse voltage is 8 kV.

•Rated voltage is 690 V.

•Fit for at least 500 plugging cycles.

•Surge voltage category III.

•UL 94 flammability rating of V-0.

•Connection type for PE is screw connection via module frame.

•Compatible with conductor cross-section between 1.5 mm² and 10 mm².

•Stripping length for rated connection is 8 mm.
