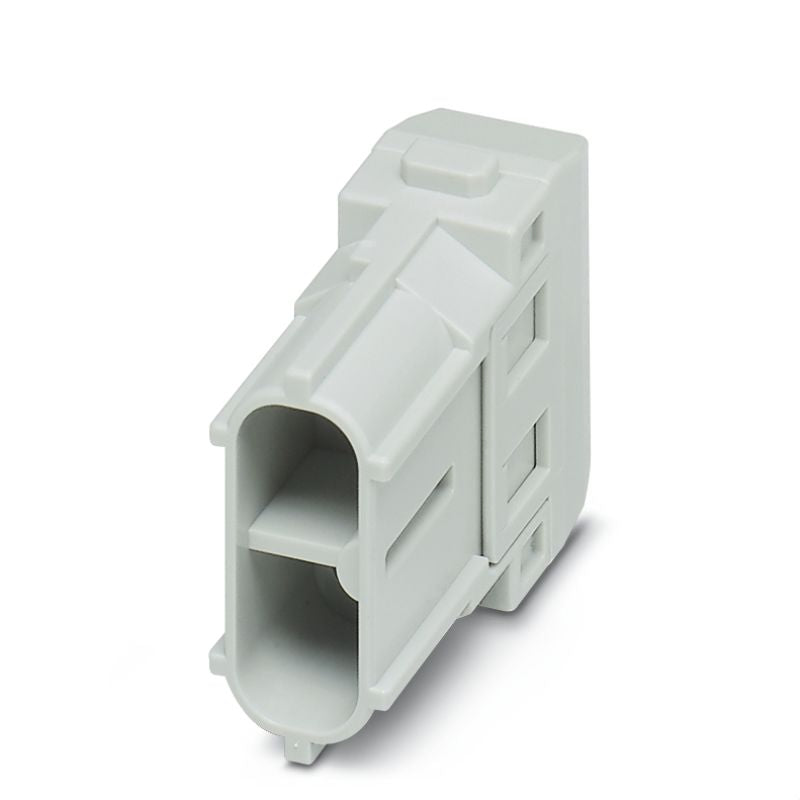

2748340000 - 830V Male Connector Module, 40A, 2-Pole Design (Pack of 5)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the HDC MHX 2 MC power module, engineered for high performance with a voltage capability of 830 V and a current rating of 40 A This compact unit features two poles and is equipped with a reliable crimp connection It occupies a single plug-in slot and is classified as a male connector, ensuring easy integration into your setup Adhering to RoHS standards, this product also boasts a UL file number, guaranteeing safety and compliance for your peace of mind.

Features and Benefits:

•Basic material is polycarbonate.

•Can withstand up to 500 plugging cycles.

•Involves a screw connection via the module frame for PE connection.

•Suitable for wire connections with cross sections between 1.5 mm² and 10 mm².

•Rated impulse voltage of 8 kV.

•Rated voltage according to UL/CSA standards is 600 V.

•Surge voltage category is III.

•Has a UL 94 flammability rating of V-0.

•Pollution severity is rated at level 3.

Specifications:
