2748450000 - 8-Pole Signal Module 400V, Compact Design 34mm Depth

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

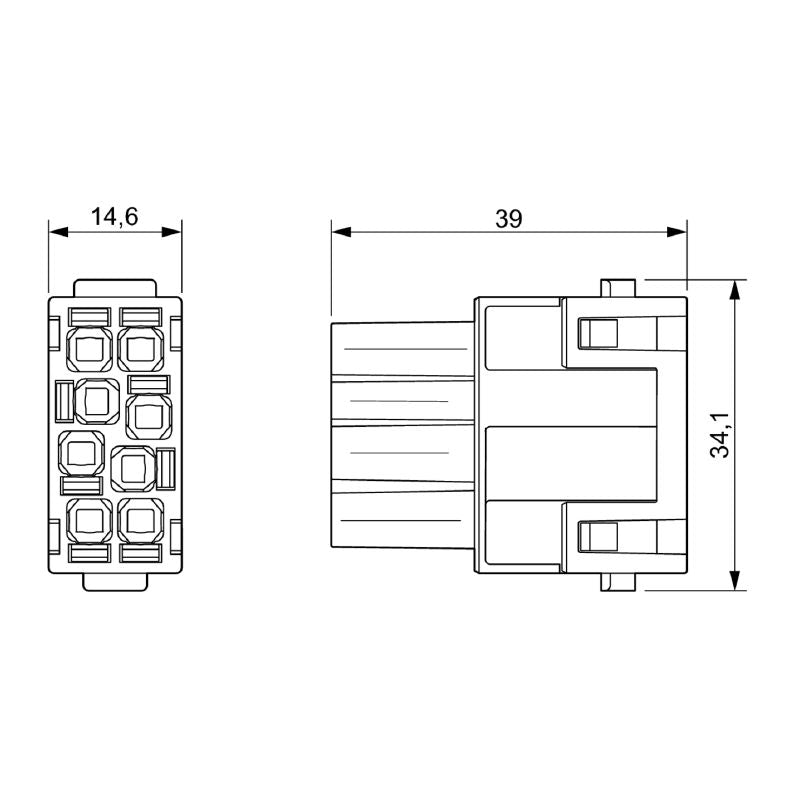

Introducing this efficient signal module, designed for optimal performance It operates at a rated voltage of 400 V and can handle a current of 16 A With 8 poles, it features a user-friendly PUSH IN connection system complete with an actuator for easy operation This module fits into a single plug-in slot for straightforward installation Its compact dimensions measure 34 mm in depth, 39 mm in height, and 34.

1 mm in width, weighing just 185 g Additionally, it meets RoHS certification and complies with UL standards, ensuring safety and reliability in your applications.

Features and Benefits:

•PUSH IN connection with actuator.

•Rated for 400 V and 16 A current.

•Complies with RoHS Standards.

•Can withstand up to 500 plugging cycles.

•Operating temperature range from -40 °C to 125 °C.

•Provides pollution severity of 3.

•UL 94 flammability rated V-0.

Specifications:
