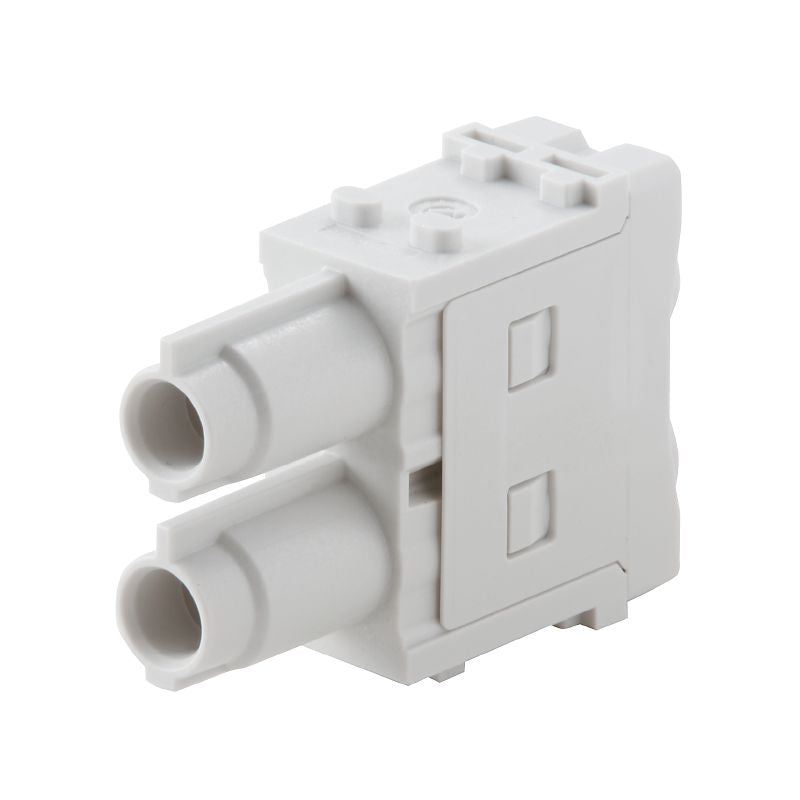

2668180000 - 1000V Power Module, 70A, 2-Pole, RoHS Compliant

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the HDC MHP 70 FC power module, equipped with a robust rating of 1000 V and 70 A This device features two poles and includes a crimp connection suitable for female connectors It requires just a single plug-in slot for seamless integration Fully compliant with RoHS standards, this module comes with additional certifications for further assurance Crafted from polycarbonate reinforced with glass fiber, it offers excellent insulation resistance and operates efficiently within a temperature range of -40 °C to 125 °C.

Features and Benefits:

•Compliant with RoHS without exemptions.

•Rated current of 70 A and a rated voltage of 1000 V.

•Insulation resistance of 10^12 Ω.

•Capable of over 500 plugging cycles.

•Flammability rating of V-0.

•Pollution severity level of 3.

•Screw connection for PE via module frame.

Specifications:
