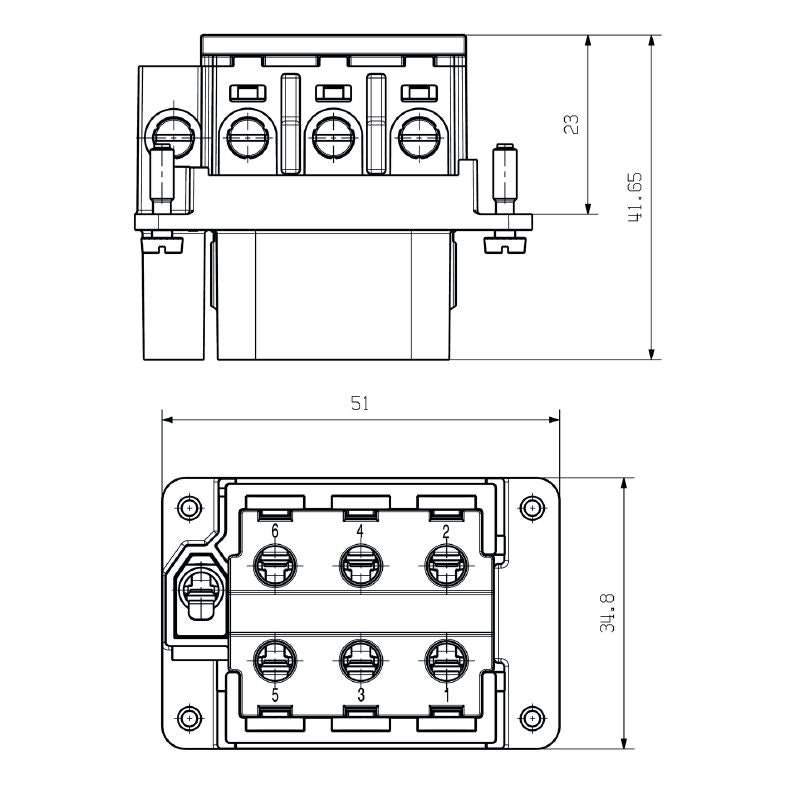

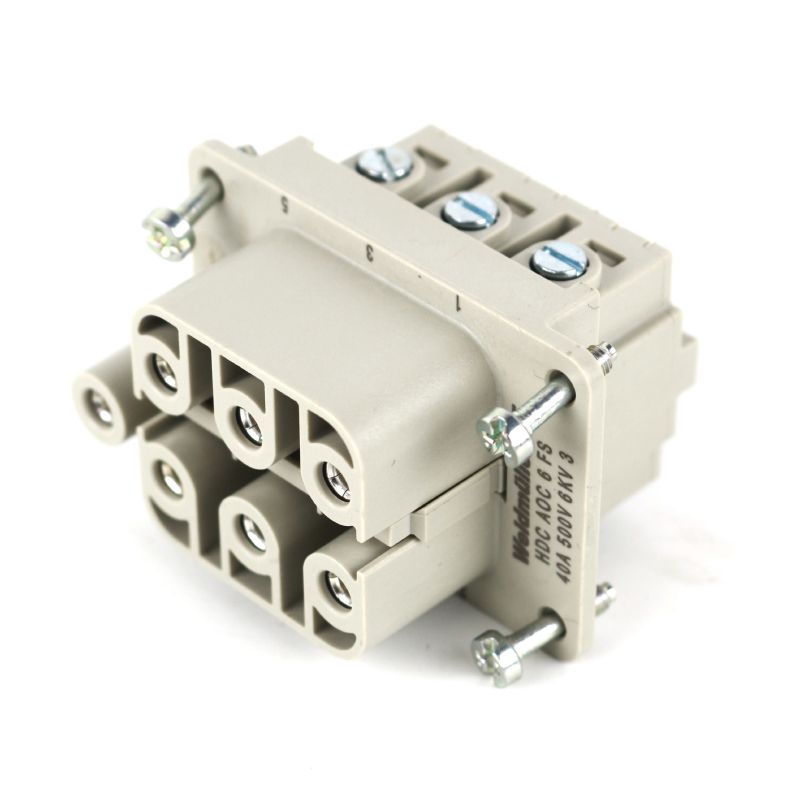

2466800000 - 6-Pole Female Connector, 500V, 40A, Polycarbonate Design

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the HDC AOC 6 FS female connector, engineered for optimal performance with a nominal voltage of 500 V and capable of handling a maximum current of 40 A This reliable connector comprises six poles and features secure screw connections, making installation straightforward Crafted from glass-fiber-reinforced polycarbonate, it boasts enhanced durability and reliability Additionally, it meets RoHS standards, ensuring compliance with environmental regulations.

Suitable for a variety of applications, the HDC AOC 6 FS is a robust choice for your connectivity needs.

Features and Benefits:

•Compliant with RoHS, specifically with exemption 6c.

•Low smoke output according to DIN EN 45545-2 standards.

•Capable of withstanding extreme temperatures ranging from -40 °C to 125 °C.

•High insulation resistance of ≥ 10¹⁰ Ω.

•Rated for 500 V with a maximum impulse voltage of 6 kV.

•Achieves a flammability rating of V-0 per UL 94 standards.

Specifications:
