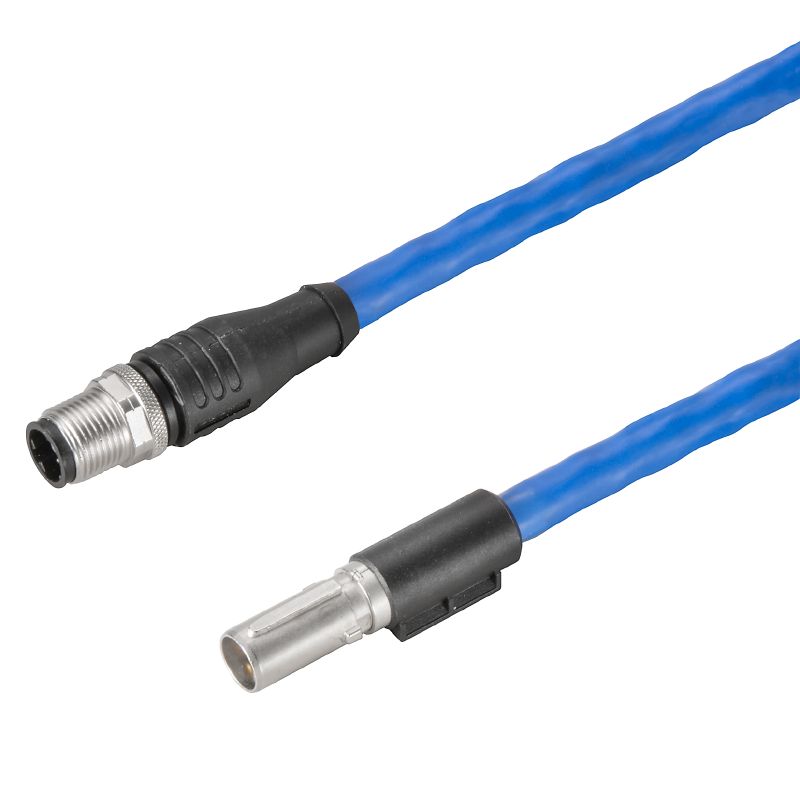

2503700100 - Shielded 1m Data Cable, 4A, 7.25mm, Robust Radox Sheath

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the HDC XX5E02 MFSM12D-0100 male-female connector cable, engineered for efficient data transmission at speeds of up to 100 MBit/s This cable is designed to function reliably in temperatures ranging from -40 °C to 90 °C It boasts a nominal current capacity of 4 A and operates at a nominal voltage of 250 V Constructed with a robust Radox EM 104 sheath, the cable is built for both durability and performance, making it a reliable choice for various applications.

It is available in an array of vibrant colors, including white, yellow, blue, and orange The cable features an outer diameter of 725 mm, with a tolerance of ±03 mm In addition, this product meets RoHS compliance standards and includes exemptions for 6c, while also containing lead as a REACH SVHC.

Features and Benefits:

•Cable supports a maximum transmission rate of 100 MBit/s.

•Indoor and outdoor use with a wide temperature tolerance.

•Color-coded for easy identification.

•High insulation resistance of ≥ 10^8 Ω.

•Compatible with both male and female M12D connectors.

Specifications:
