2466810000 - Durable 6-Pole Connector, 500V/40A, RoHS Compliant

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

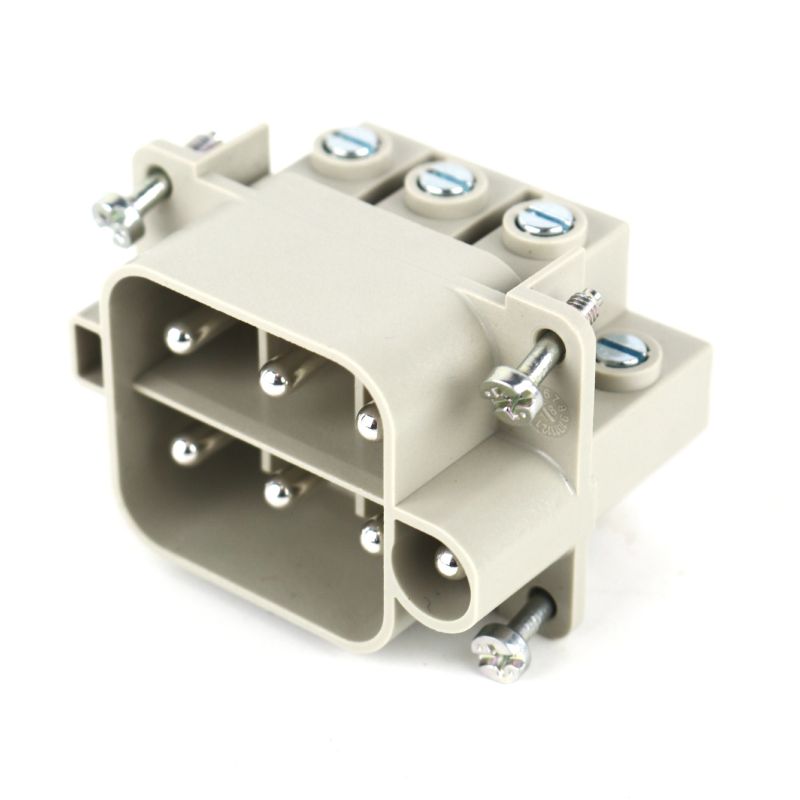

Introducing the HDC AOC 6 MS connector, expertly crafted to meet demanding connection requirements This connector features a robust pin configuration and is rated for 500 V and 40 A, equipped with six poles for versatile use With screw connections and an installation size of 3, it offers easy integration into various setups Constructed from high-quality polycarbonate and glass fiber reinforced plastic, this connector is both durable and compliant with RoHS standards.

It operates effectively within a wide temperature range of -40 °C to 125 °C, ensuring reliability in diverse environments With a volume resistance of 200 mΩ, it guarantees dependable performance in a multitude of applications.

Features and Benefits:

•RoHS compliant with exemption.

•Low smoke emissions according to DIN EN 45545-2.

•Rated for 500 V and 40 A with a maximum of 6 kV impulse voltage.

•UL 94 V-0 flammability rating.

•Color: Light Grey.

•Basic material includes polycarbonate and glass fibre reinforcement.

Specifications:
