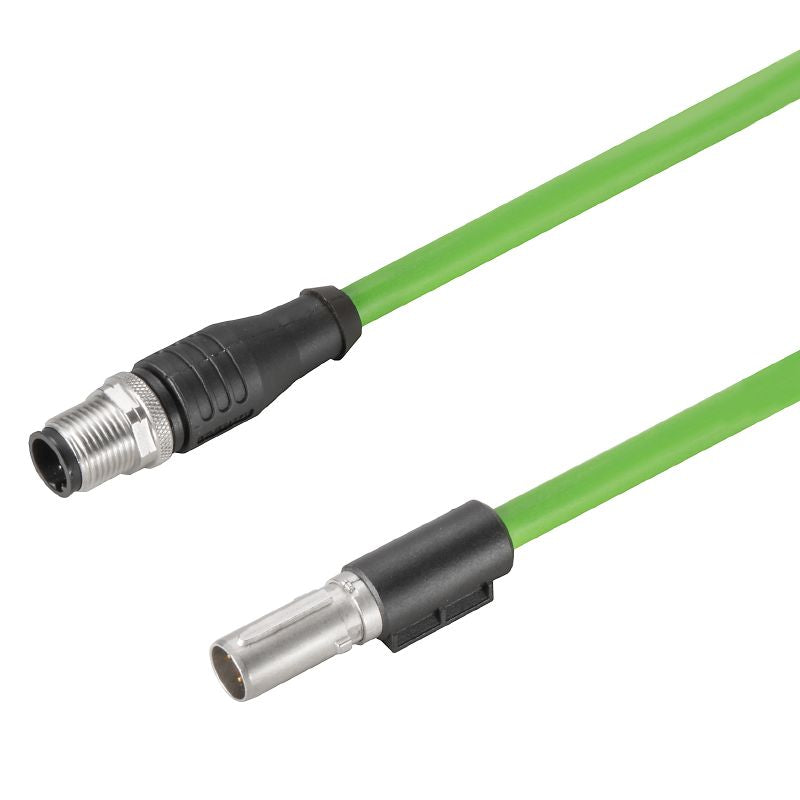

2450451800 - 18m Cat. 5e Shielded Cable, 6.5mm, Male-Female Ends

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the HDC XX5E01 MFSM12D-1800, a durable Cat 5e cable that spans an impressive 18 meters This cable is engineered with a male connector on one end and a female connector on the opposite side, utilizing D-coded pins for reliable connectivity Featuring a shielded construction, it boasts a protective sheath made from high-quality PUR material, with an outer diameter measuring 65 mm and a tolerance of ±0.

2 mm Designed to handle a nominal current of 4A and a voltage of 250V, it supports a transmission rate of 100 MBit/s while ensuring an insulation resistance of at least 10^8 Ω This cable is an excellent choice for reliable data transmission in various applications.

Features and Benefits:

•Gold (Au) contact surface.

•Compliant with RoHS exemptions.

•Halogen-free insulation.

•More than 100 plugging cycles.

•Includes color coding of white, yellow, blue, orange.

•Pollution severity rated at 2.

Specifications:
