1983900000 - HDC Heavy-Duty Connector 110mm Depth, RoHS Compliant

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

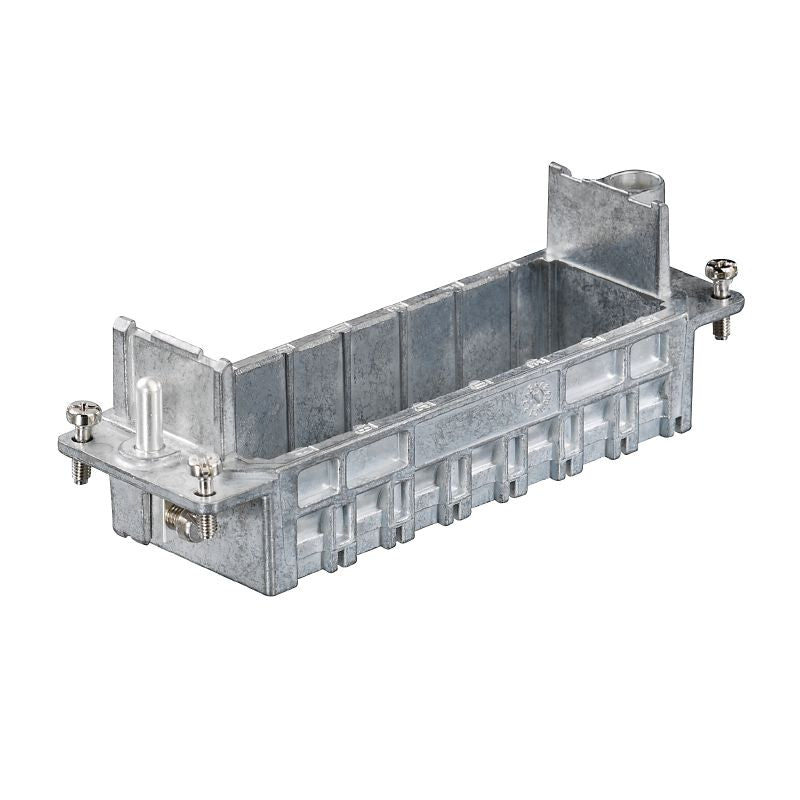

Experience the strength and reliability of the HDC CFM 24 7F connector, expertly crafted with a heavy-duty HDC insert within a ConCept frame This robust connector adheres to RoHS standards and carries the UL File Number E92202, ensuring it meets high electrical safety criteria With dimensions of 110 mm in depth, 35 mm in height, and 34 mm in width, this connector weighs a manageable 100 g It is designed to function within an extensive temperature range, from -40 °C to 125 °C, making it suitable for various challenging environments.

Features and Benefits:

•Constructed from diecast zinc.

•Low smoke according to DIN EN 45545-2.

•PE connection via screw connection.

•Maximum tightening torque for PE connection is 1.5 Nm.

•Minimum tightening torque for PE connection is 0.5 Nm.

•Installation size is 8.

Specifications:
