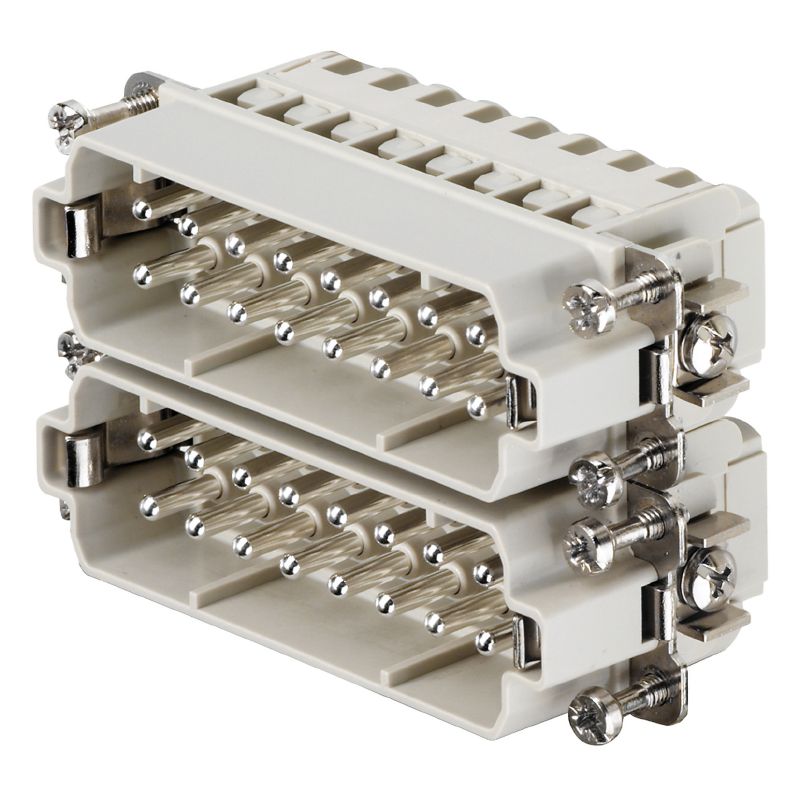

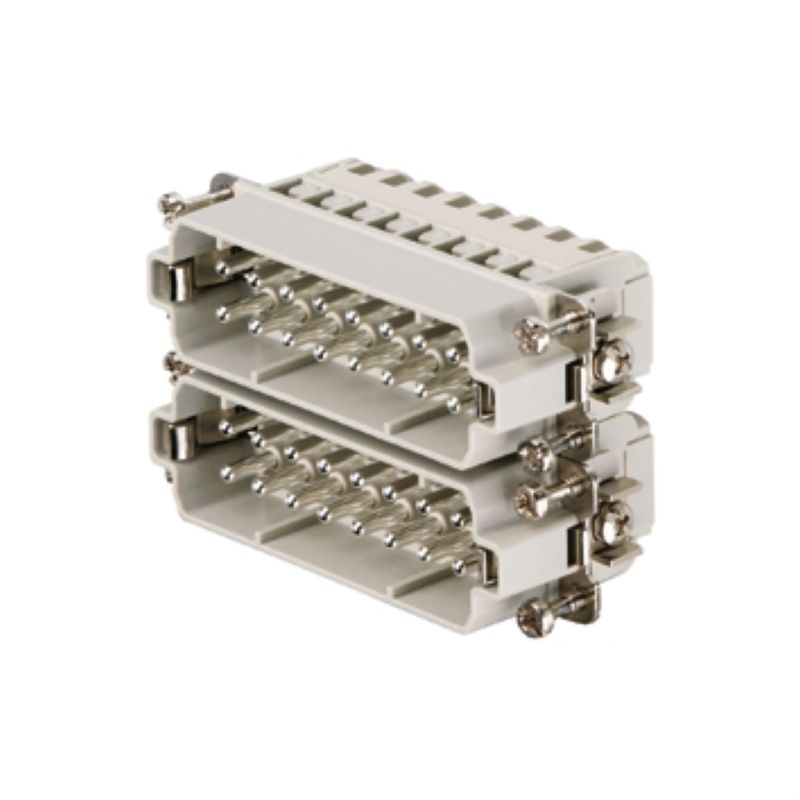

1896840000 - Compact 16-Pole Connector, 250V 16A, 73mm Depth

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

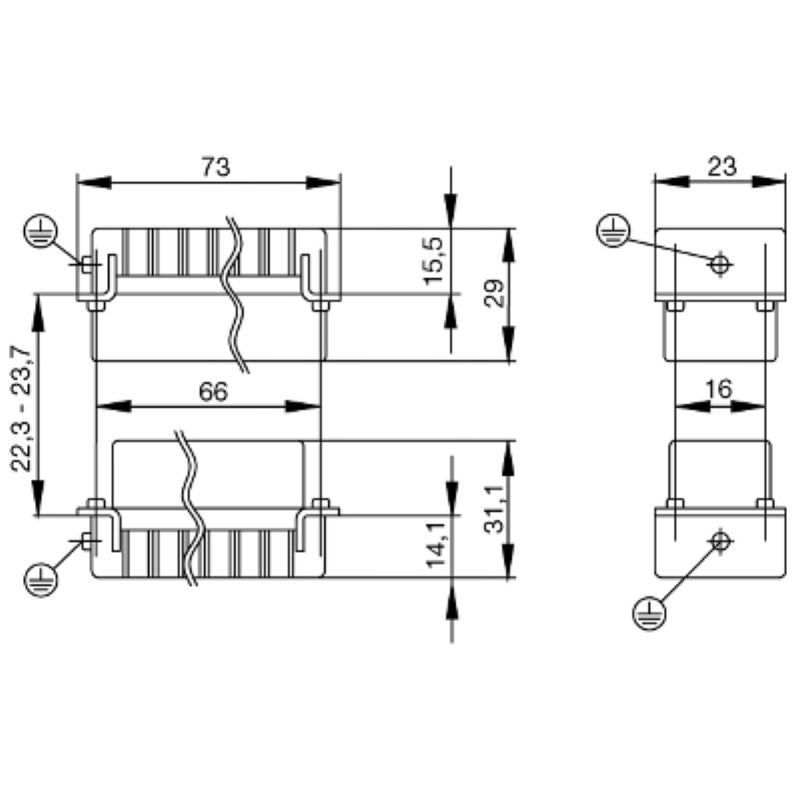

Introducing the HDC HA 16 MT 17-32, a reliable installation solution featuring a male connector that operates at 250 V and 16 A Engineered with a robust component design, it contains 16 poles and employs a tension-clamp connection method, ensuring secure and dependable setups Measuring just 73 mm in depth, 29 mm in height, and 23 mm in width, this compact connector is versatile enough for numerous applications.

Crafted from a durable copper alloy, it meets RoHS compliance regulations, making it a safe and long-lasting choice for your projects.

Features and Benefits:

•Compliant with RoHS and REACH regulations.

•Low smoke according to DIN EN 45545-2.

•Silver passivated surface finish.

•Resistant to several chemicals including acetone and petrol.

•Able to withstand temperatures from -40 °C to +125 °C.

•High number of plugging cycles of at least 500.

Specifications:
