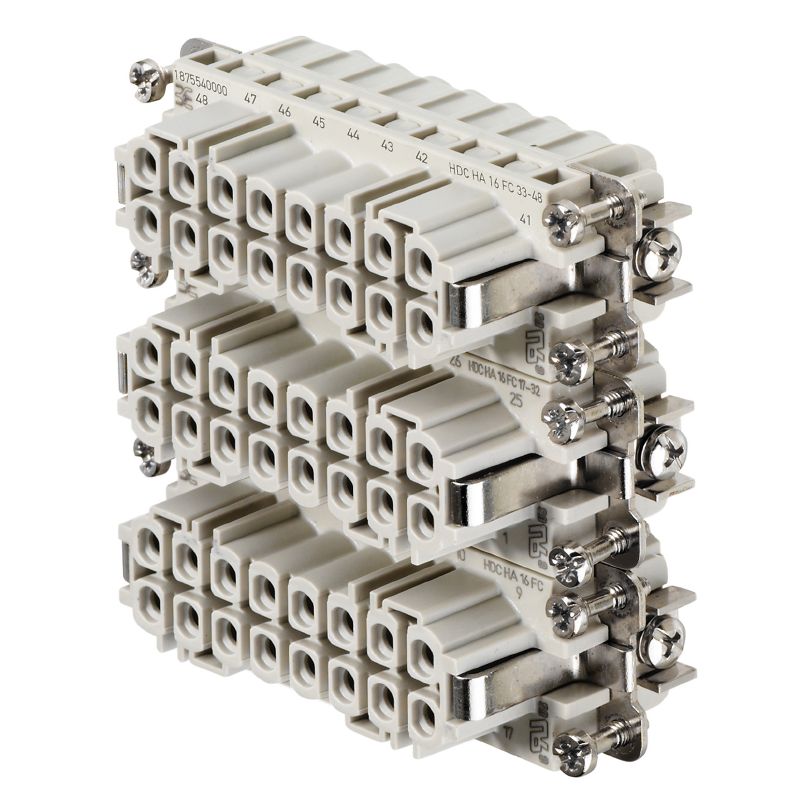

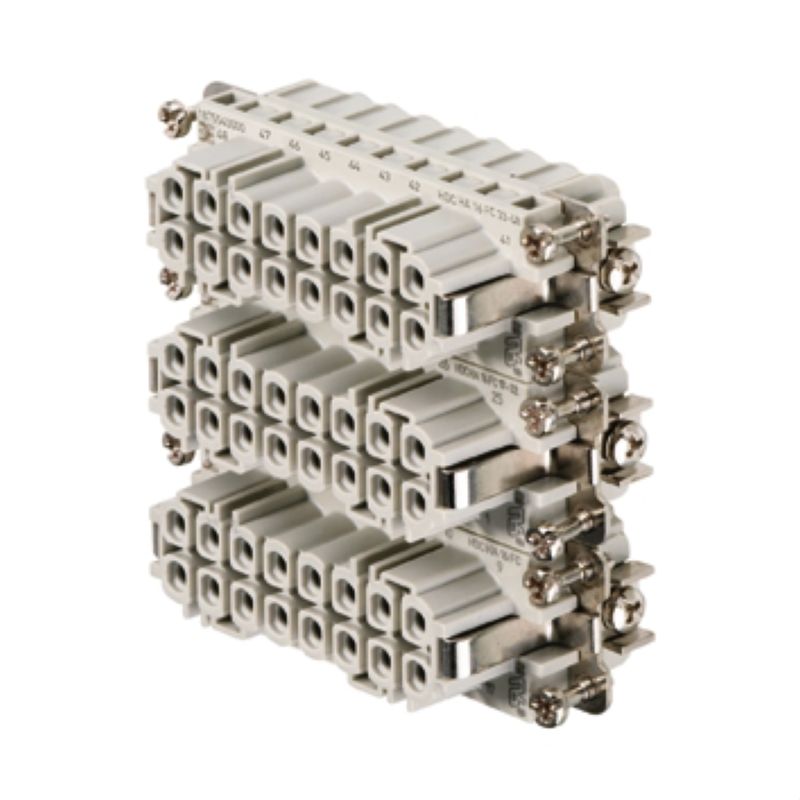

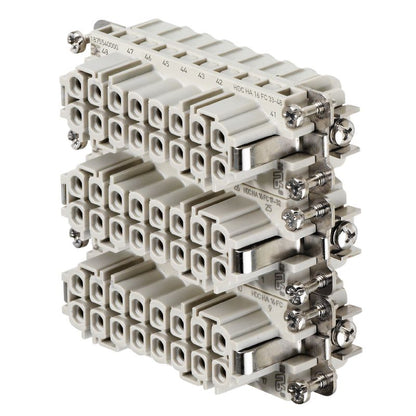

1875540000 - 16 Pole HDC Insert, 250V, 16A, 73mm Depth

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

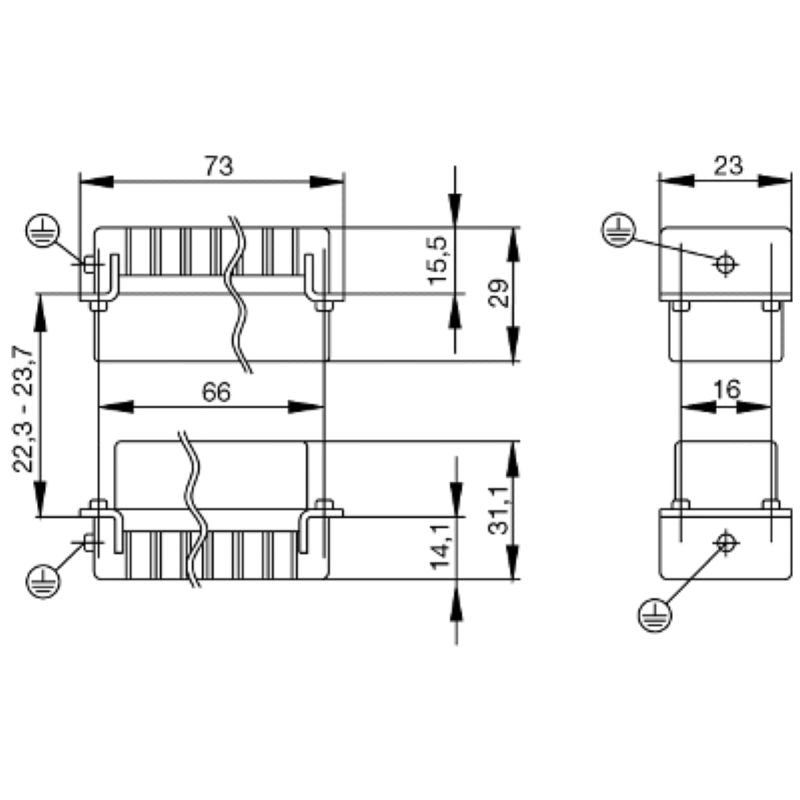

Make powerful connections with this female HDC insert rated at 250 V and 16 A This component features 16 poles and is equipped with a reliable crimp connection, making it ideal for various applications With an installation size of 5, it measures 73 mm in depth, 311 mm in height, and 23 mm in width, weighing only 308 g Designed to operate within a wide temperature range of -40 °C to 125 °C, it meets RoHS compliance standards.

Crafted from copper alloy, this insert also boasts a low smoke rating in accordance with DIN EN 45545-2, ensuring safety and effectiveness in use.

Features and Benefits:

•RoHS compliant with exemptions.

•Chemical resistance to various substances including acetone, petrol, and concentrated acetic acid.

•Plugging cycles rated for a minimum of 500 cycles using gold or silver contacts.

•Insulator material is PC glass-fibre reinforced and UL-listed.

Specifications:
