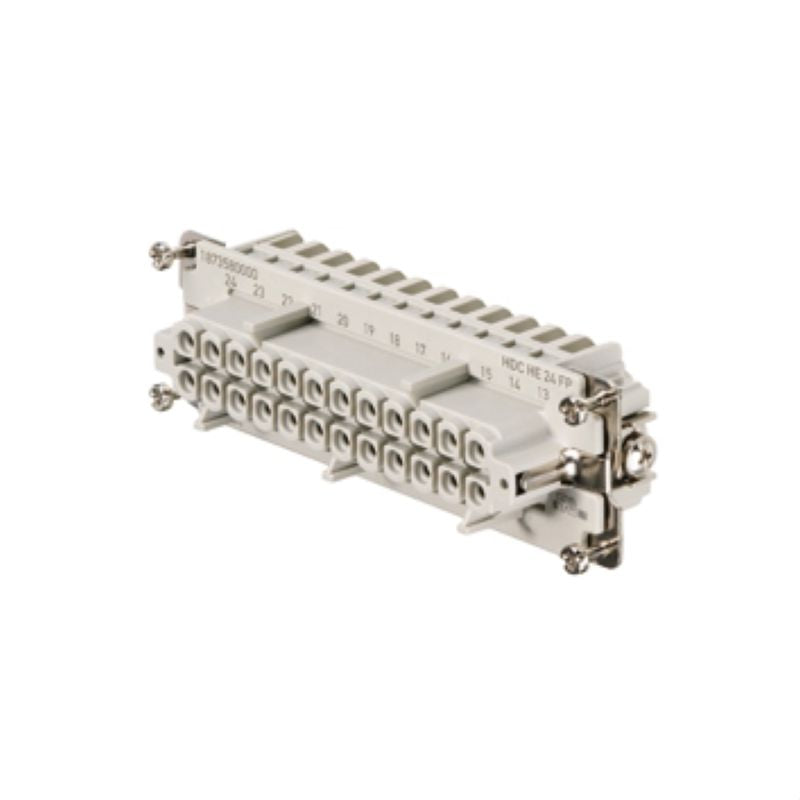

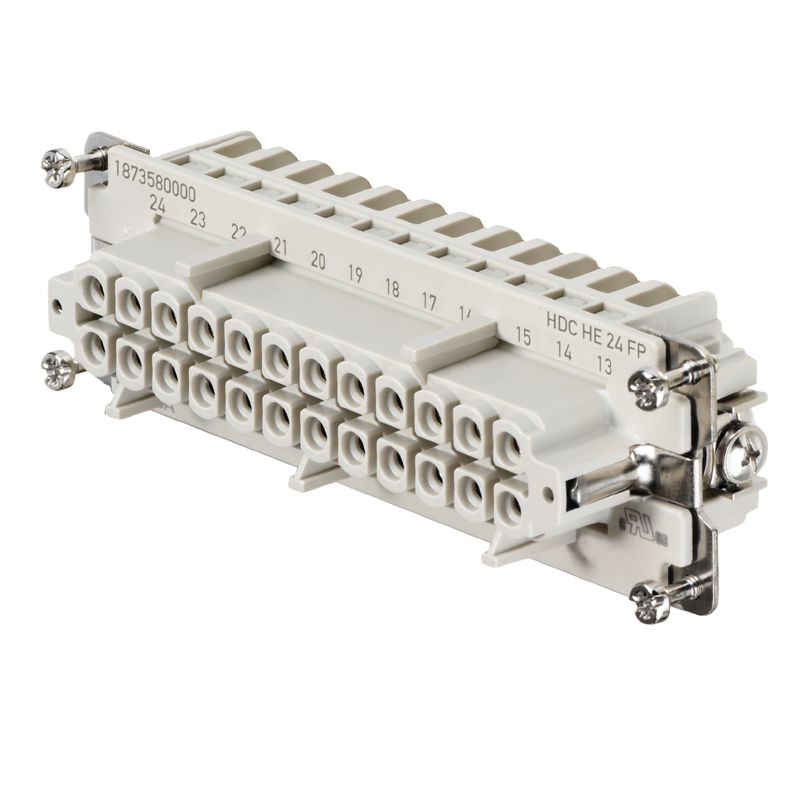

1873580000 - 24-Pole Female Insert, 500V, 16A, 111mm Deep

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

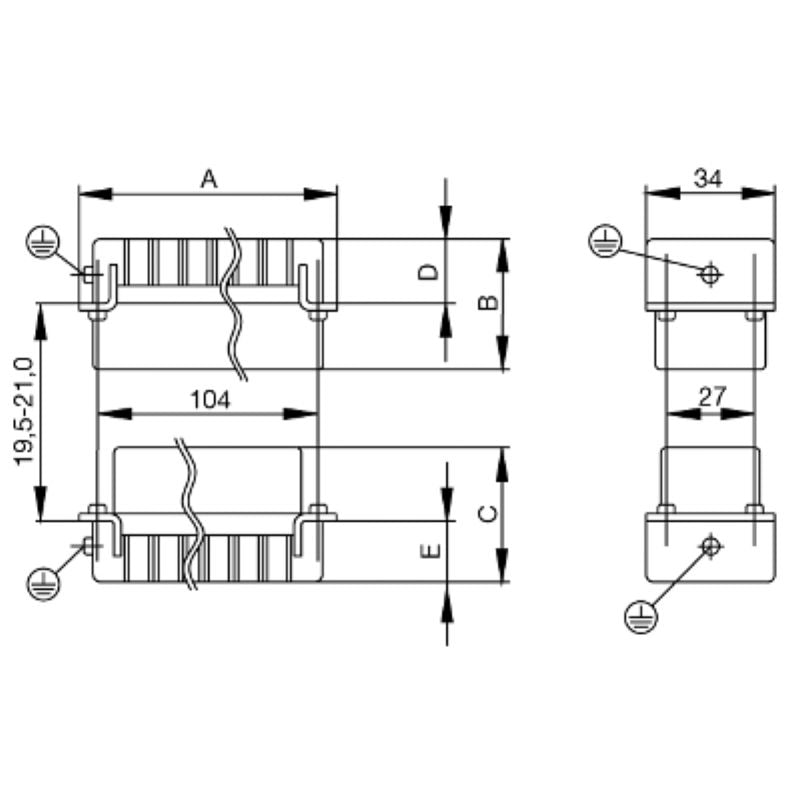

Introducing the HDC HE 24 FP female insert, an essential component for reliable electrical connections Capable of withstanding voltages up to 500 V and supporting a current rating of 16 A, this insert is engineered for versatility With 24 poles and a user-friendly push-in connection system, installation is straightforward Its compact dimensions of 111 mm in depth, 338 mm in height, and 34 mm in width, along with a lightweight design at approximately 99.

44 g, make it an excellent choice for a wide range of applications.

Features and Benefits:

•Compliant with RoHS and REACH regulations.

•Constructed from copper alloy for durability.

•PC glass-fiber reinforced insulating material that is UL-listed.

•Capable of withstanding a wide temperature range from -40 °C to 125 °C.

•Low smoke emissions conforming to DIN EN 45545-2 standards.

•Silver passivated surface finish for improved connectivity.

•High number of plugging cycles, rated at 500 or more.

Specifications:
