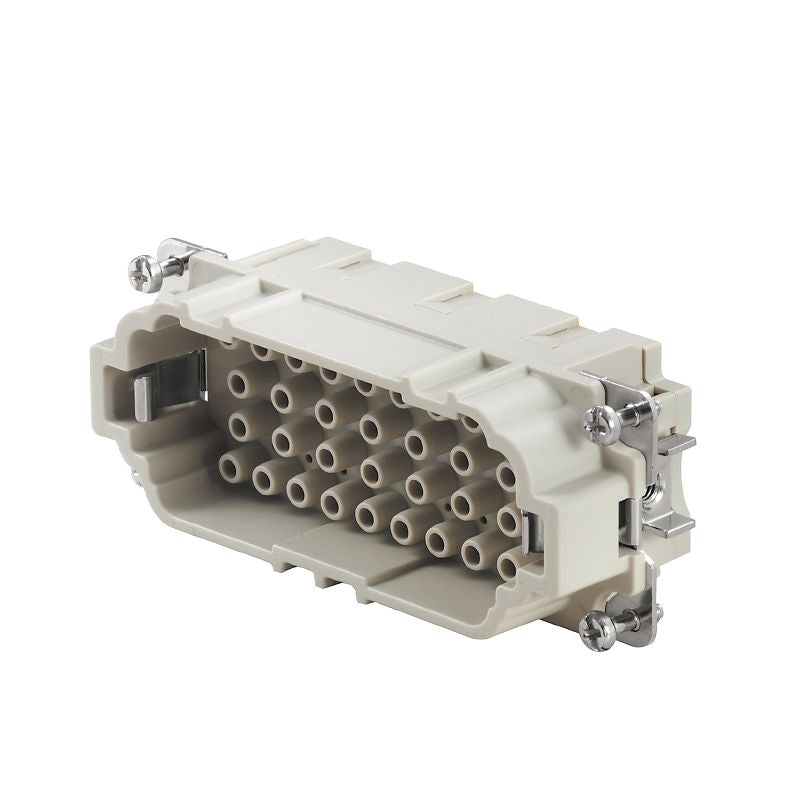

1826790000 - 32-Pole Electrical Connector, 500V, Crimp, Beige Color

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

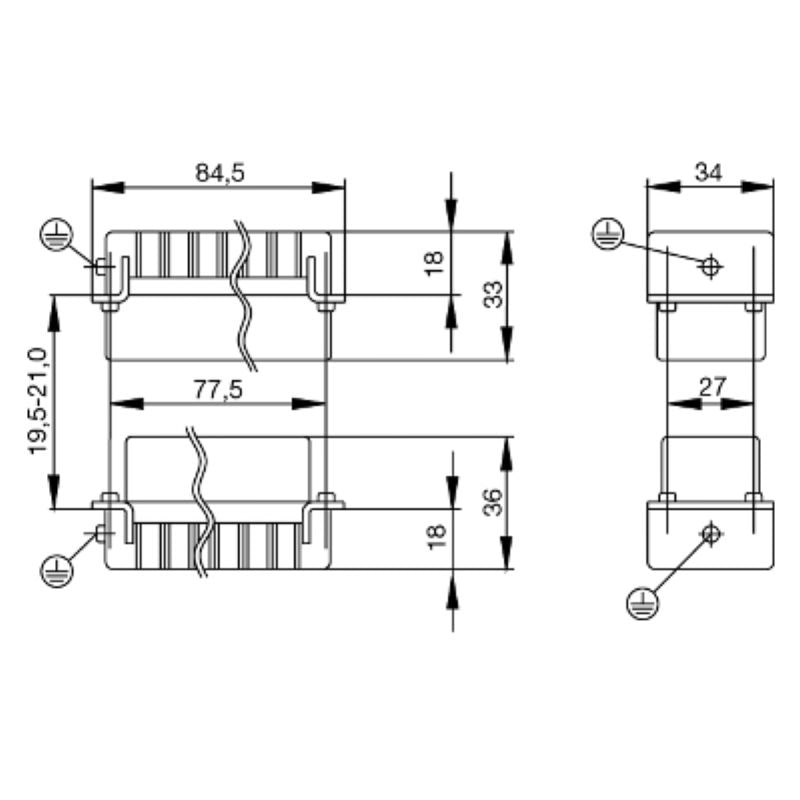

Introducing the HDC HEE 32 MC electrical connector, expertly engineered for performance with a rating of 500 V and 16 A This robust connector boasts 32 poles and is designed for crimp connections, providing reliable electrical connections With a compact installation size classified as 6, it's perfect for various applications Measuring 845 mm in depth, 33 mm in height, and 34 mm in width, this connector weighs in at just 56 g.

It is compliant with RoHS standards and bears the UL certification (E92202), ensuring safety and quality Engineered to operate in extreme temperatures ranging from -40 °C to 125 °C, it also features low smoke characteristics as per the DIN EN 45545-2 standard Constructed from durable copper alloy and finished in a subtle beige hue, the connector includes reinforced PC glass-fiber insulation and offers an impressive volume resistance of ≤2 mΩ.

With a rated current of 16 A, a rated voltage of 500 V, and an impulse voltage capability of 6 kV, the HDC HEE 32 MC connector is both versatile and dependable for your electrical connectivity needs.

Features and Benefits:

•RoHS compliant without exemption.

•Low smoke according to DIN EN 45545-2.

•Plugging cycles rated for ≥ 500 with gold and silver contacts.

•Pollution severity classified as 3.

•Conductor cross-section is 4 mm².
