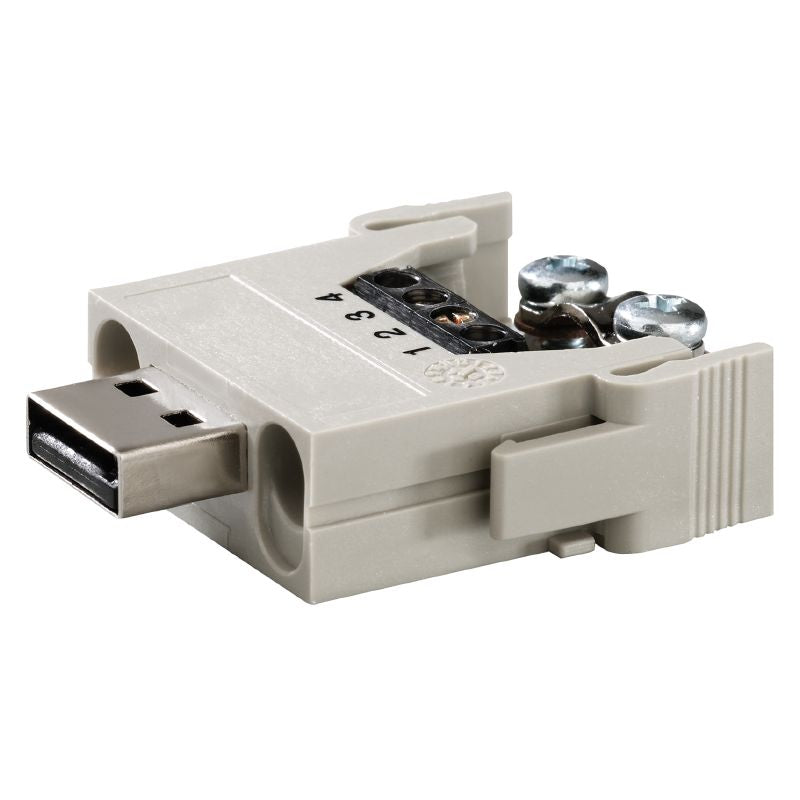

1814310000 - Heavy-Duty HDC Connector with ConCept Module, -20°C to 85°C (Pack of 5)

1814310000 - Heavy-Duty HDC Connector with ConCept Module, -20°C to 85°C (Pack of 5)

SKU: SKU: 1814310000   Download PDF

Select a Variant:
  • 1814310000 - Heavy-Duty HDC Connector with ConCept Module, -20°C to 85°C (Pack of 5)
Qty:
Regular price Now $130.97   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $130.97 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Experience exceptional durability with the HDC CM BUS 4SS heavy-duty connector, equipped with a sturdy HDC insert and a ConCept module Engineered for reliable functionality in challenging environments, this connector meets RoHS compliance standards It operates efficiently across a temperature range of -20 °C to 85 °C, making it suitable for various conditions.

Features and Benefits:

    •Made from polycarbonate and reinforced with glass-fibre.

    •Compliant with low smoke standards according to DIN EN 45545-2.

    •Rated for a maximum current of 1 A.

    •Includes four poles for connections.

    •Allows for screw connections which provide secure engagement.

Specifications:

 Height 43 mm
 Width 11.4 mm
 Length 34 mm
 Limit temperature -20 °C ... 85 °C
 Insulating material PC glass-fibre reinforced (UL-listed and railway-certified)
 Rated impulse voltage 0.8 kV
 Rated voltage 32 V
 Number of poles 4
 Tightening torque max. PE connection 0.6 Nm
 Tightening torque min. PE connection 0.5 Nm
 Stripping length, rated connection 5 mm
 Wire connection cross section AWG max. AWG 16
