1788450000 - IP65 Rated 10A HDC Connection Box, 108.5mm Depth

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

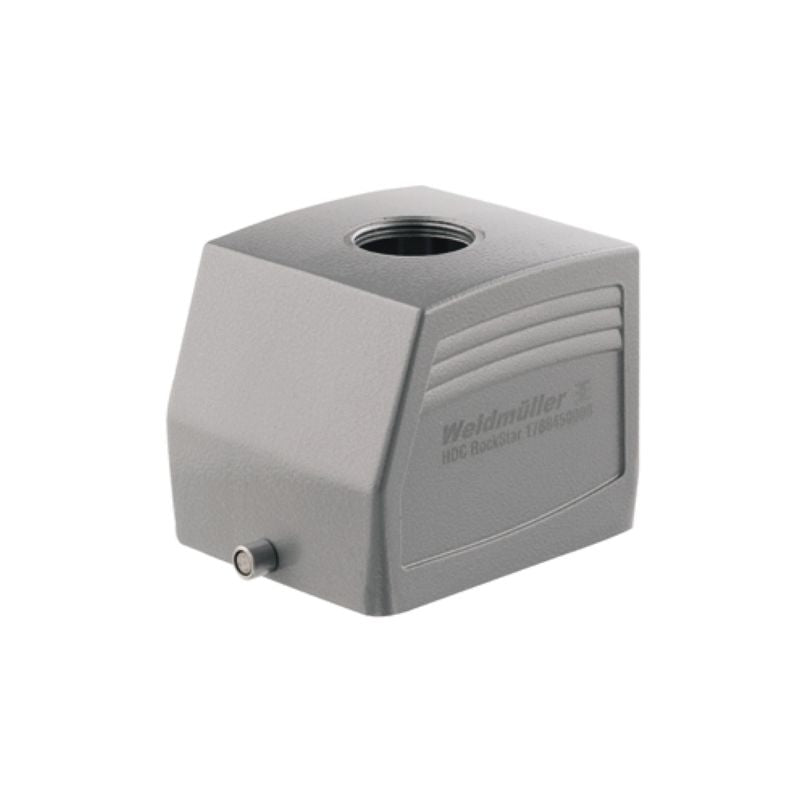

Introducing the HDC 32B TOLU 1M32G, a robust device designed for seamless installation with a size specification of 10 This model boasts an IP65 protection rating when connected, ensuring reliable performance even in challenging conditions With top cable entry, it facilitates straightforward setup and management The construction includes a sturdy plug housing and features an end-locking clamp located at the lower section for added security.

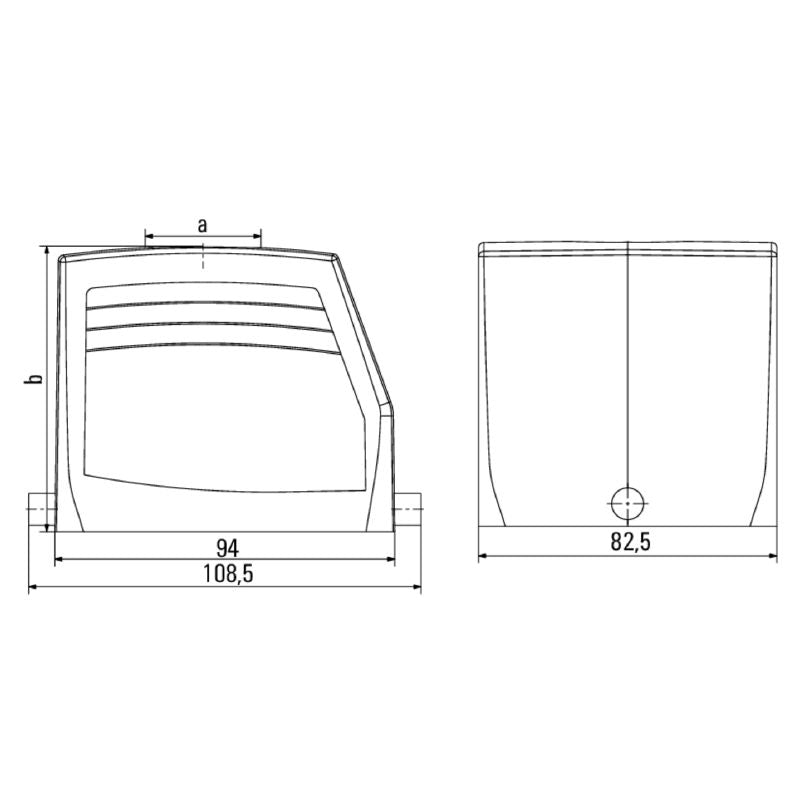

In terms of dimensions, this unit measures 1085 mm in depth, 79 mm in height, and 825 mm in width, with a lightweight net weight of 34496 g Additionally, this device complies with RoHS regulations and can operate effectively in temperatures ranging from -40 °C to 125 °C, making it a versatile choice for various applications.

Features and Benefits:

•Approval for RoHS compliance.

•Plug housing with top cable entry.

•End-locking clamp provided.

•Powder-coated surface finish.

•Made from diecast aluminium housing.

•Stainless steel locking element that is rust-proof.

•Supported tightness torque of 2 Nm.

Specifications:
