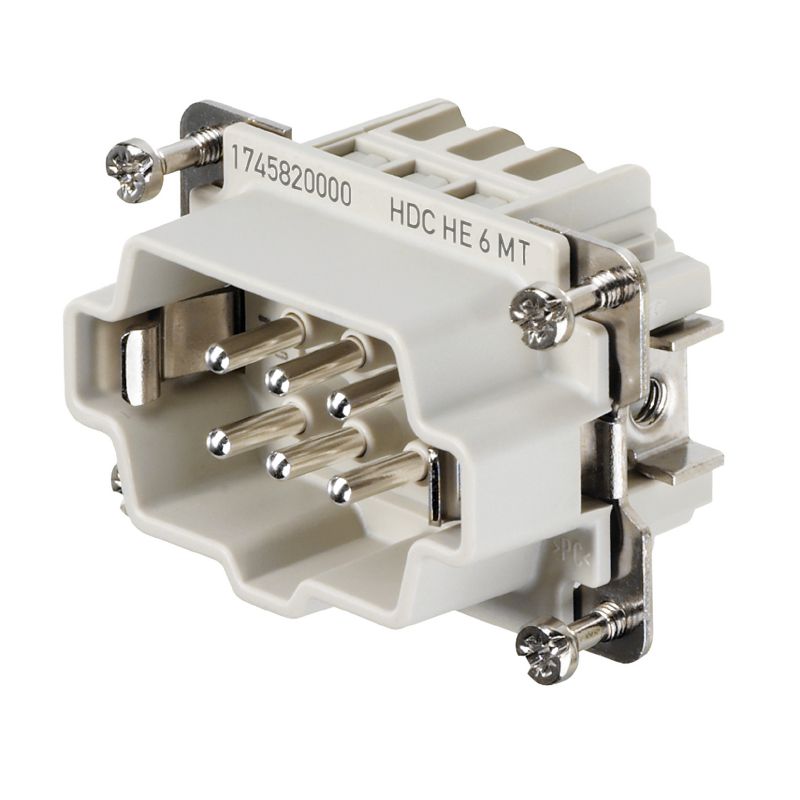

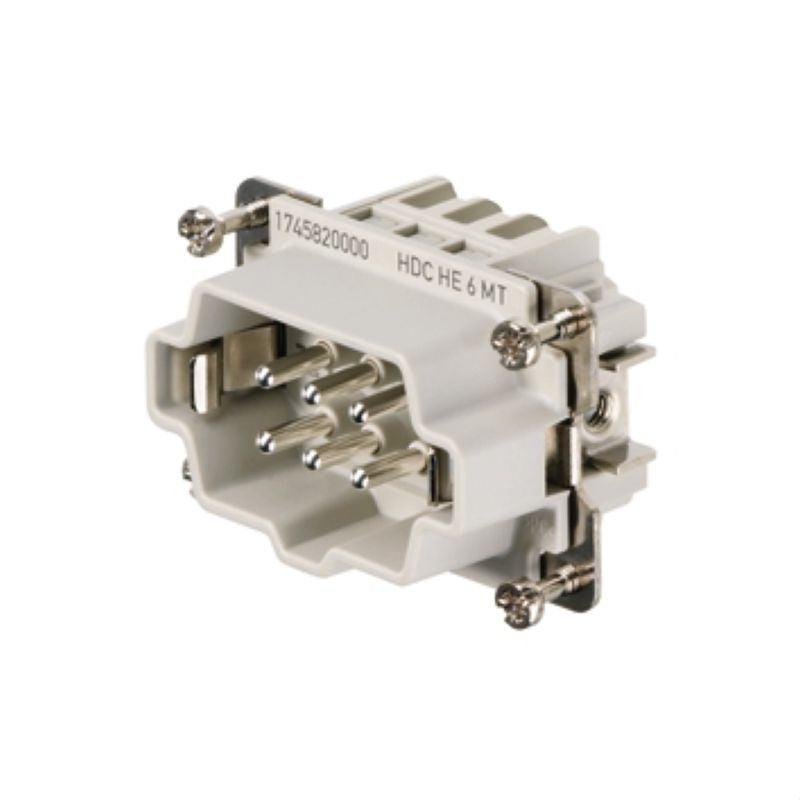

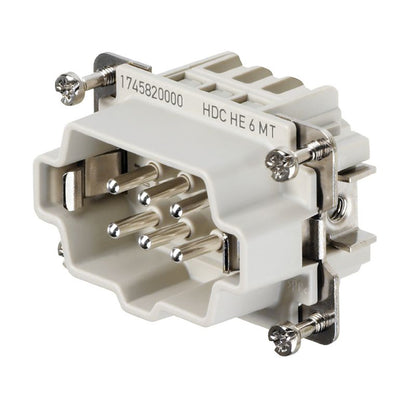

1745820000 - Six-Pole Insert, 500V/24A, 51mm Deep Copper Alloy

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

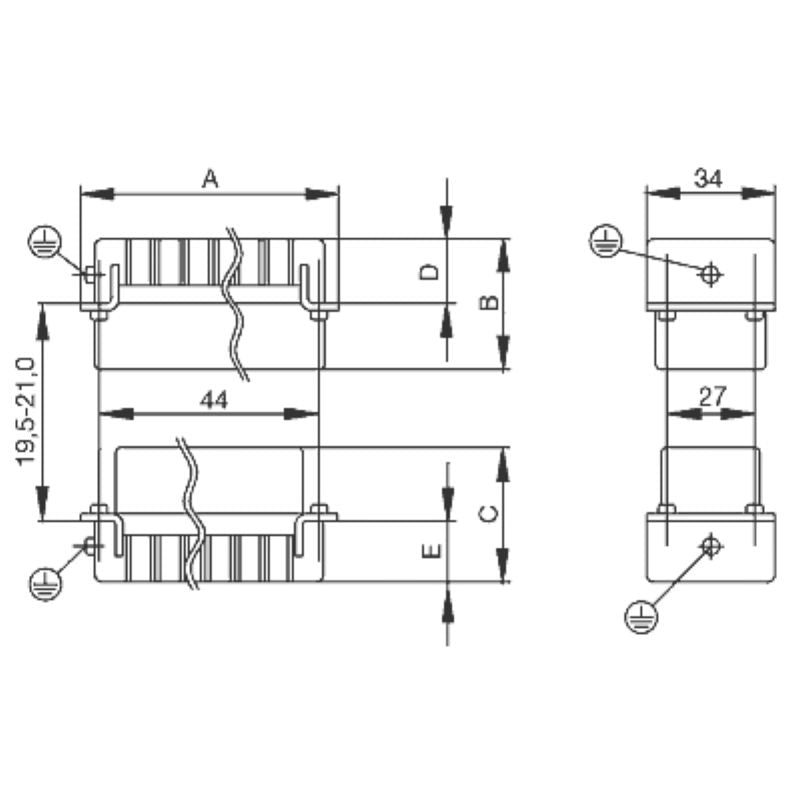

Introducing the HDC HE 6 MT, a reliable male insert engineered for electrical installations up to 500 V and provides a current capacity of 24 A This insert features six poles and utilizes a tension-clamp connection for secure attachment With compact proportions of 51 mm in depth, 335 mm in height, and 34 mm in width, it is lightweight at only 43 g This versatile component can function effectively within a temperature range of -40 °C to 125 °C and adheres to RoHS standards.

Crafted from durable copper alloy, it also incorporates a reinforced insulating material to enhance its longevity and performance.

Features and Benefits:

•Tension-clamp connection.

•Suitable for high voltage up to 500 V.

•Can carry current up to 24 A.

•Made from durable copper alloy.

•Environmentally compliant with RoHS and REACH regulations.

Specifications:
