1745810000 - 24-Pole Female HDC Connector, 8 Size, 500V, RoHS Compliant

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

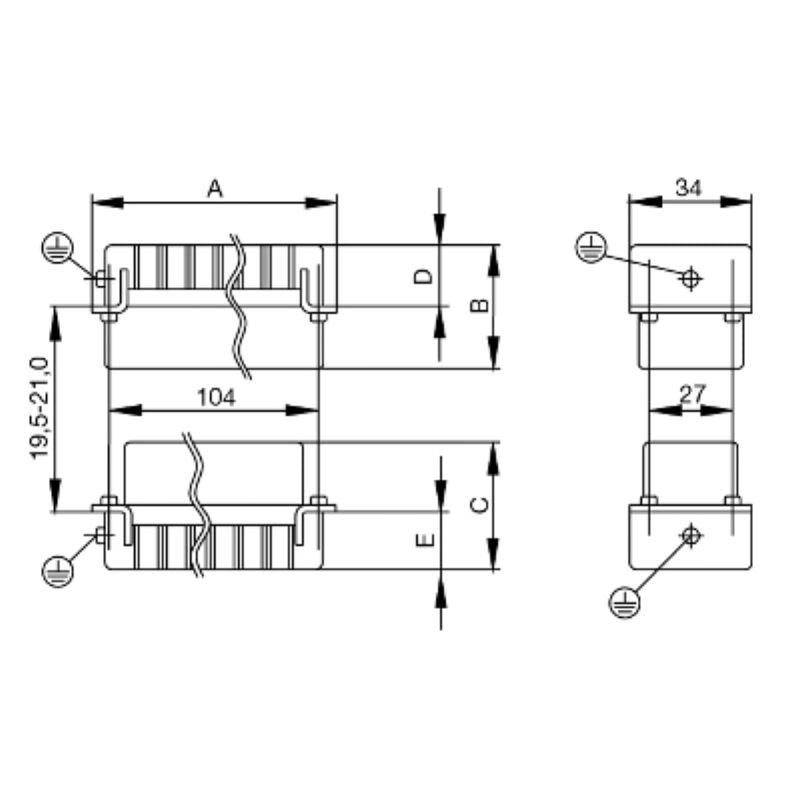

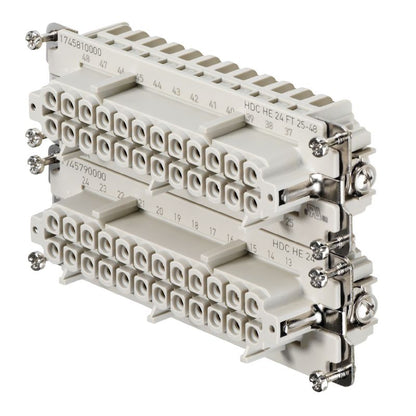

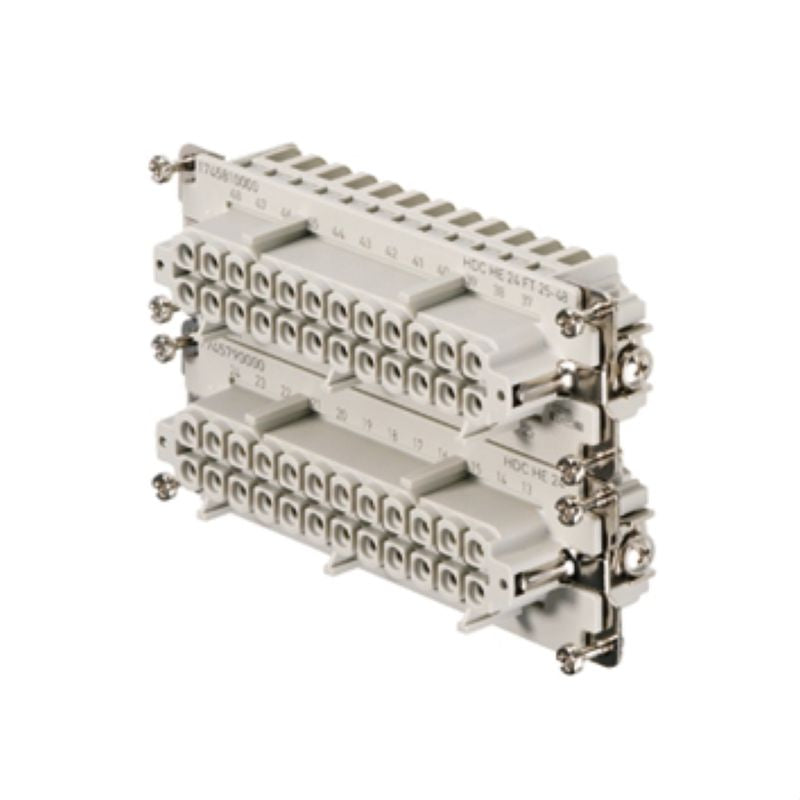

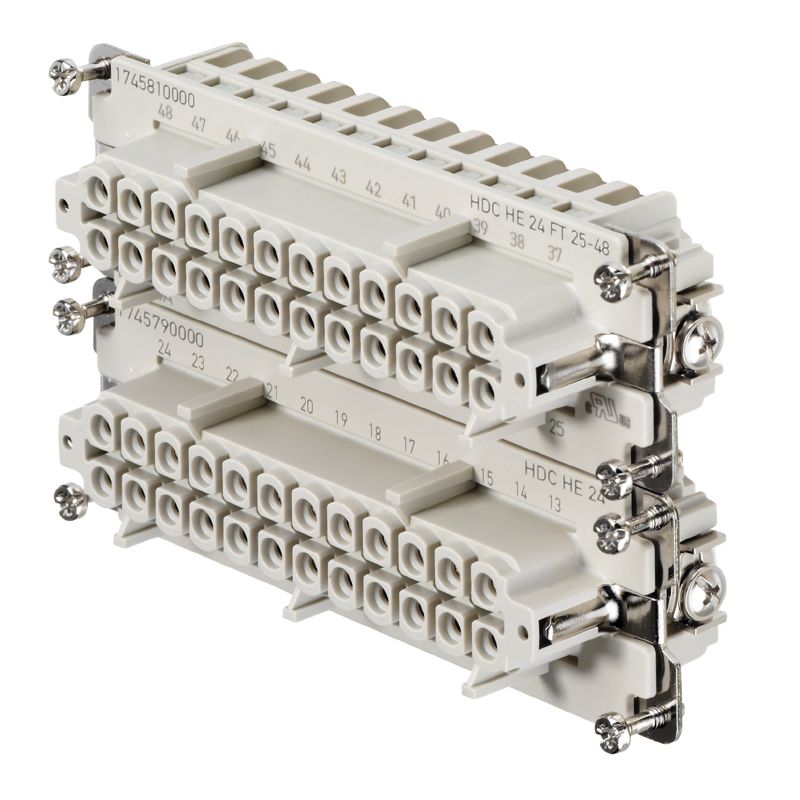

Introducing the HDC insert, equipped with a 24-pole female connection, perfect for a range of applications This robust component operates at a voltage of 500 V and is capable of handling currents up to 16 A Featuring a reliable tension-clamp design, it has an installation size of 8 for easy setup Weighing just 110 grams and measuring 111 mm in depth, 33 mm in height, and 34 mm in width, it offers a compact solution tailored for efficiency.

Constructed from a durable copper alloy, the insert is insulated with reinforced PC glass-fiber, making it suitable for railway industry standards Additionally, it meets RoHS compliance and comes with UL certification, guaranteeing its safety and environmental friendliness with low smoke emissions.

Features and Benefits:

•RoHS compliant and certified.

•UL certified for safe operation.

•Resistant to several chemicals including acetone and petrol.

•Low smoke emission under DIN EN 45545-2 standards.

•Suitable for a wide range of operating temperatures from -40 °C to 125 °C.

•Used in electrical connections requiring high safety standards.

Specifications:
