1651320000 - 5-Pole HDC Connector 64mm for Female Connections, RoHS Compliant

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

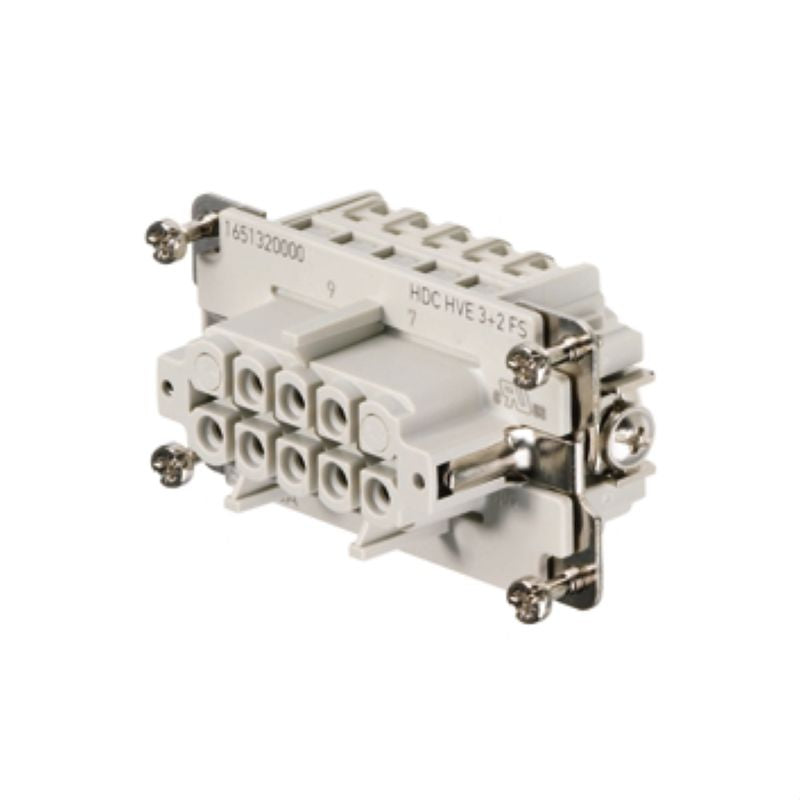

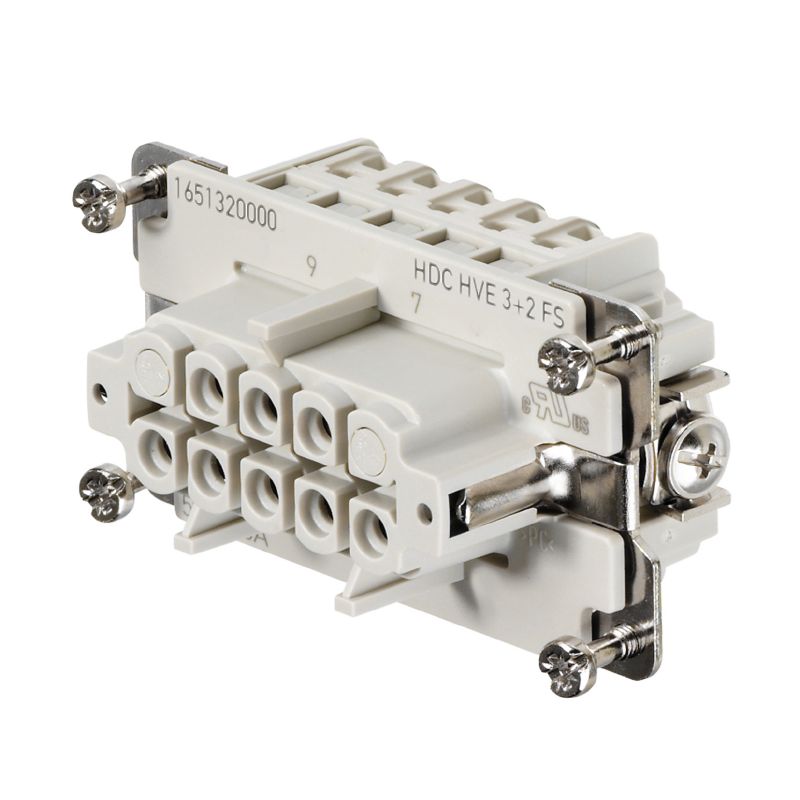

Introducing the HDC insert connector tailored for female connections, engineered to deliver exceptional performance with a voltage rating of 830 V and a current capacity of 20 A This robust component features five poles and utilizes a reliable screw connection with an installation size of 4, accommodating various installation needs Crafted from high-quality copper alloy, it meets RoHS standards, ensuring it is environmentally friendly and suitable for a range of applications.

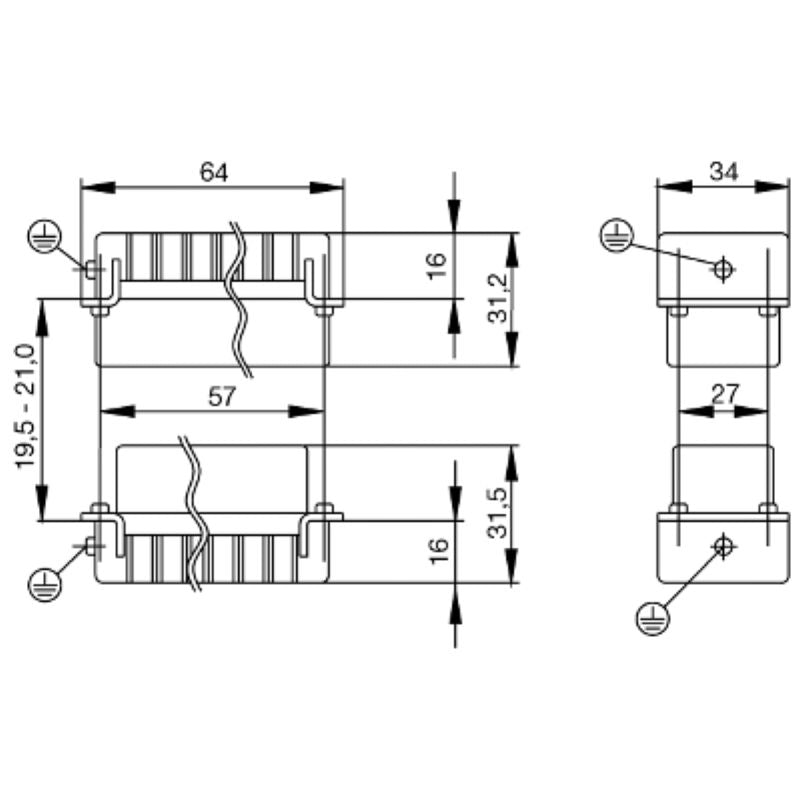

The connector measures 64 mm in depth, 352 mm in height, and 34 mm in width, with a lightweight design of 4928 grams Designed to function effectively in extreme conditions, it operates within a temperature range of -40 °C to 125 °C, providing versatility for different environments.

Features and Benefits:

•Compliant with RoHS.

•Number of poles: 5.

•Screw connection type.

•Insulating material is PC glass-fibre reinforced.

•Low smoke acc. DIN EN 45545-2 certified.

•Volume resistance of ≤2 mΩ.

•Plugging cycles rated at ≥ 500.

Specifications:
