1651310000 - 5-Pole Male Connector 64mm Deep, Copper Alloy, RoHS Certified

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

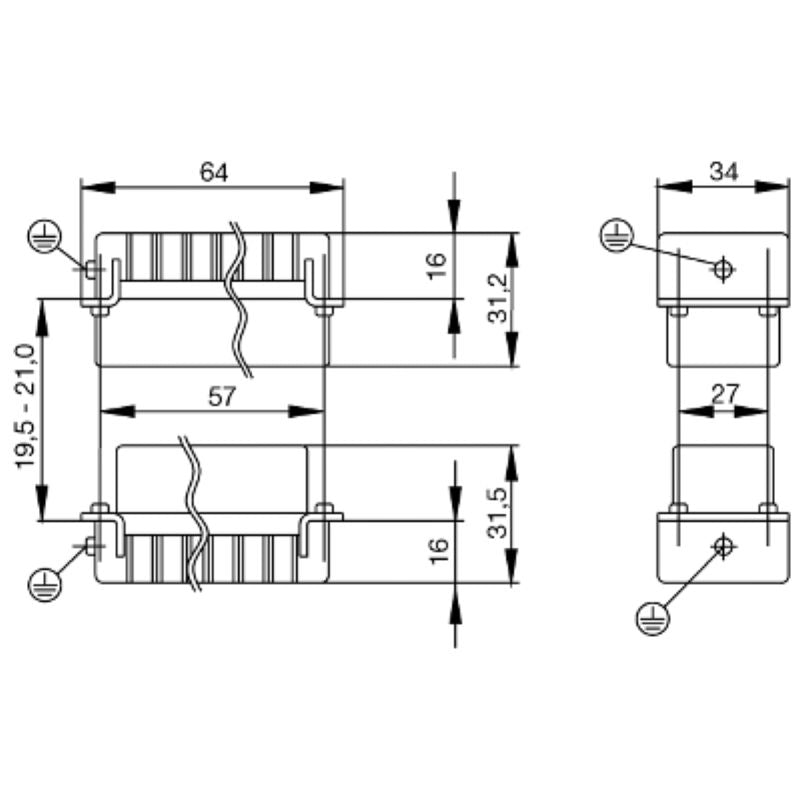

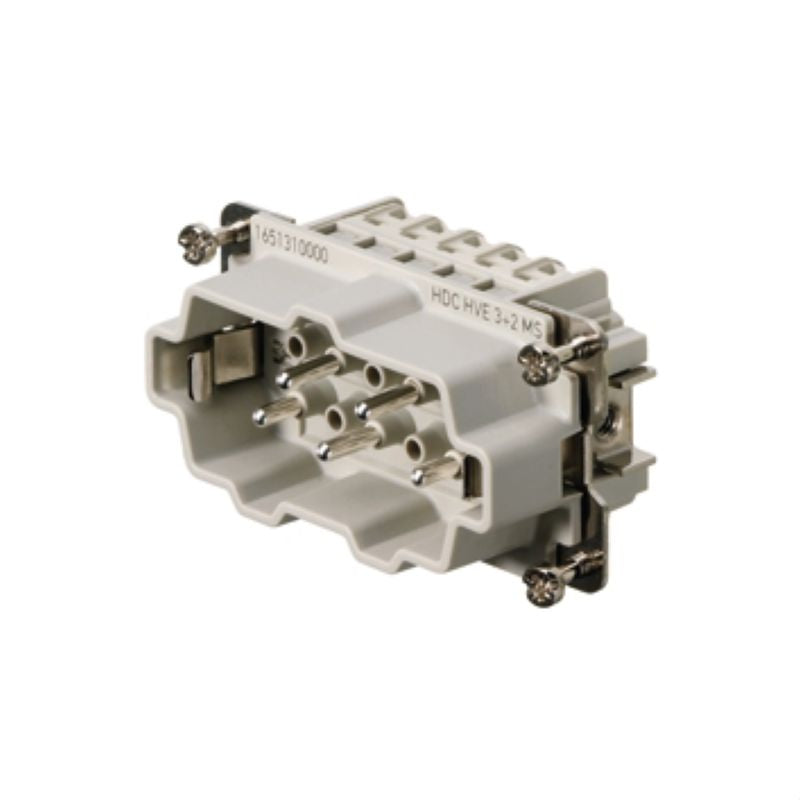

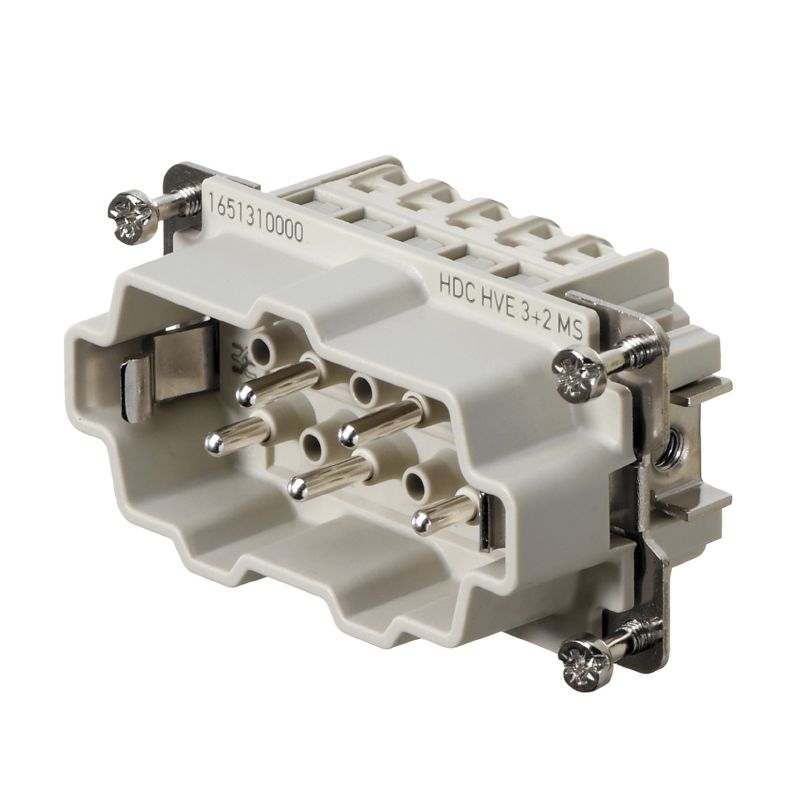

Introducing the HDC HVE 3+2 MS, a premium 5-pole male connector perfect for screw connections It's rated for 20 A and can handle voltages up to 830 V With compact dimensions of 64 mm in depth, 357 mm in height, and 34 mm in width, this connector is both efficient and easy to install Built from a durable copper alloy, it meets RoHS standards and carries the certification number E92202, ensuring quality and compliance for your electrical needs.

Features and Benefits:

•Resistant to various substances including acetone, petrol, and concentrated acetic acid.

•Conditionally resistant to ammonia, diesel oil, methanol, and motor oil.

•Low smoke according to DIN EN 45545-2.

•Surface finish is silver passivated.

•Plugging cycles rated at ≥ 500.

•Torque specifications for connectors are established.

Specifications:
