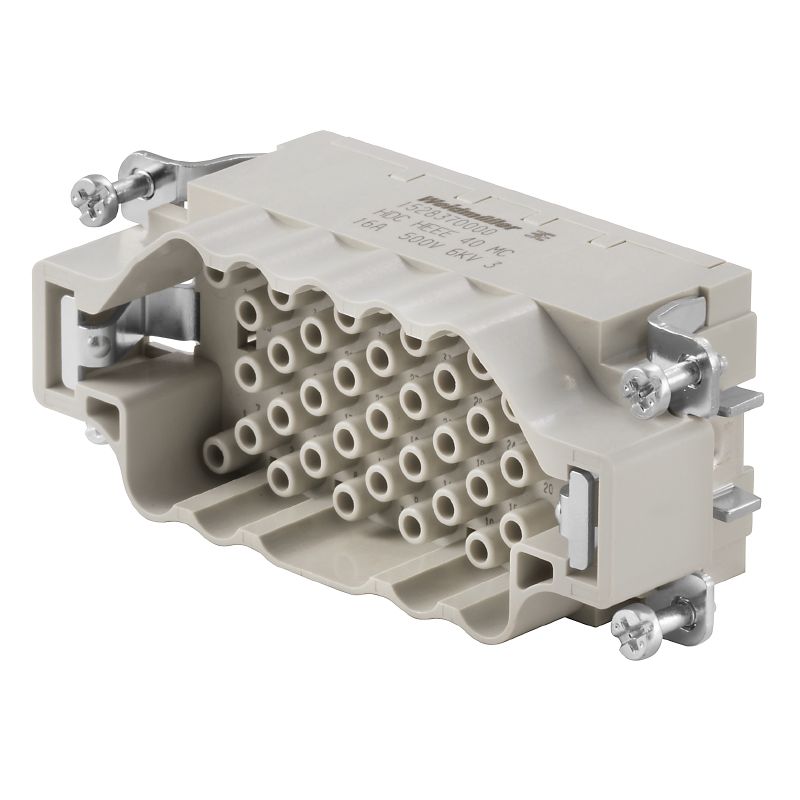

1528370000 - 40 Pole Crimp Male Connector, 16A/500V, RoHS Compliant

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the HDC HEEE 40 MC male pin connector, expertly crafted for reliable use in electrical systems This efficient connector features a crimp connection and is designed to handle a maximum voltage of 500 V and a rated current of 16 A across 40 poles Built with durability in mind, it meets RoHS compliance without exemptions and holds a UL certification (E92202), ensuring its quality and safety in various applications.

Features and Benefits:

•Compliant with RoHS.

•UL certification.

•Constructed with a copper alloy.

•Insulation resistance of 10^10 Ω.

•Rated impulse voltage of 6 kV.

•Low smoke according to DIN EN 45545-2.

•Plugging cycles: gold ≥ 500, silver ≥ 500.

•Volume resistance ≤2 mΩ.

•Conditionally resistant to various chemicals including acetone and petrol.

Specifications:
