1429060000 - HDC MHP 100 MC Power Module, 100A, 1000V, UL Certified

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

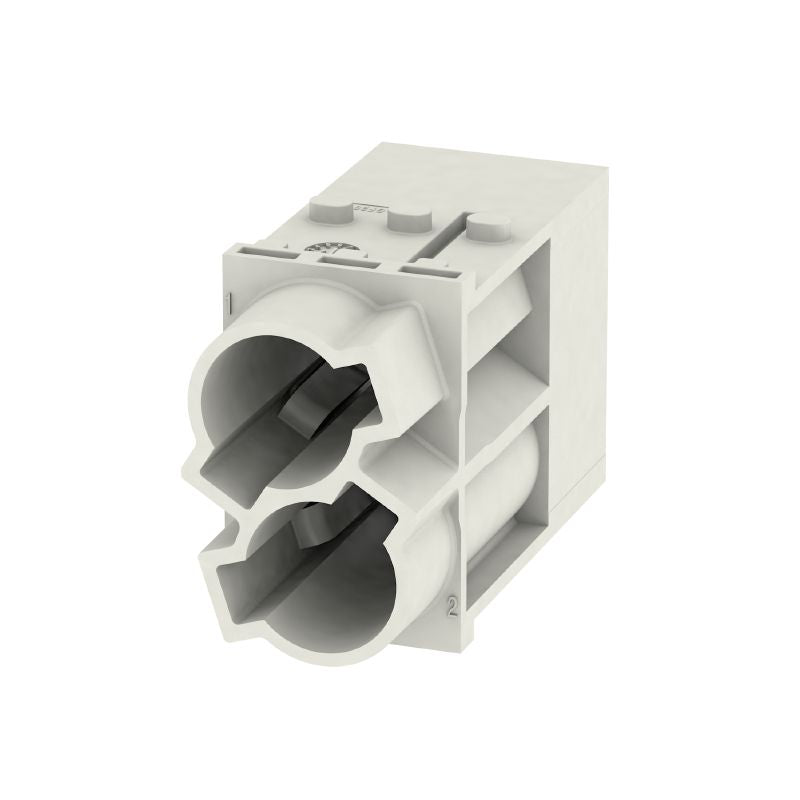

Introducing the HDC MHP 100 MC power module, engineered for optimal performance and durability This unit is designed to manage voltages of up to 1000 V and currents reaching 100 A It features a dual-pole structure with a male crimp connection and requires 15 plug-in slots for seamless installation Meeting RoHS regulations and tested extensively, this power module proudly displays its UL certification number E92202, ensuring its reliability for various applications.

Features and Benefits:

•Compliant with RoHS without exemption.

•Able to withstand temperatures from -40 °C to 125 °C.

•Constructed from polycarbonate with glass fiber reinforcement.

•Insulation resistance rated at 10^12 Ω.

•Surge voltage category III.

•UL 94 flammability rating V-0.

•Plugging cycles of at least 500.

Specifications:
