1270510000 - Copper Alloy Crimp Insert, 550 Size, 160A, RoHS Compliant

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

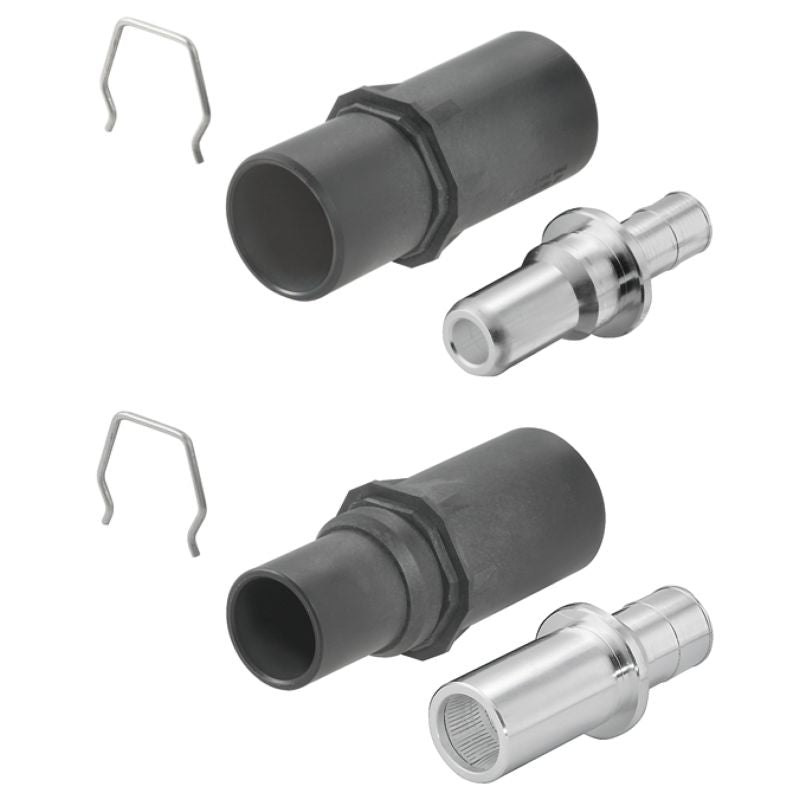

Introducing the HDC HP 550 F 35, a specialized crimp connection insert tailored for installation size 550 This product meets RoHS standards and is crafted from durable copper alloy Capable of withstanding temperatures ranging from -50 °C to 120 °C, it boasts a voltage rating of up to 3,000 V at a maximum temperature of 60 °C With a rated current capacity of 160 A and an impulse voltage rating of 15 kV, this insert is engineered for robust performance.

Weighing in at just 155 g, it measures 983 mm in length and 43 mm in diameter Its silver passivated surface enhances resistance, showcasing an impressive insulation resistance of 10^10 Ω Designed for longevity, it supports over 500 plugging cycles and is appropriate for pollution severity classes PD 2 (PD 3) Additionally, this product comes equipped with detailed stripping lengths for both performance contacts and power connections, ensuring optimal functionality.

Features and Benefits:

•Compliant with RoHS with exemption.

•Rated current of 160 A.

•Max operating voltage of 3,000 V.

•Can handle a wide temperature range from -50 °C to 120 °C.

•Silver passivated surface finish.

•Suitable for a minimum of 500 plugging cycles.

Specifications:
