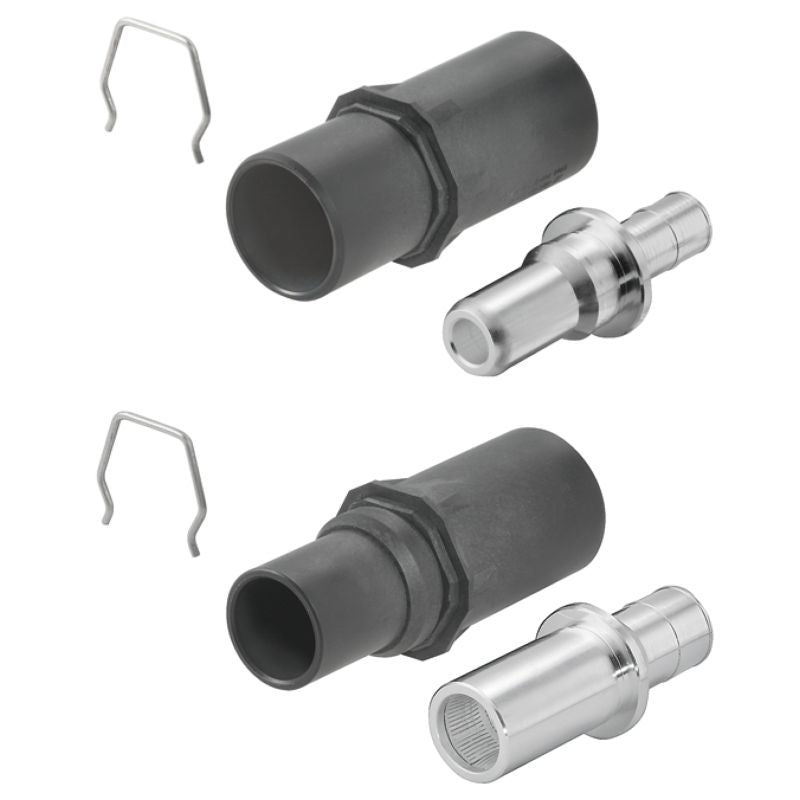

1268820000 - RoHS Compliant Copper Insert for 550 Size Connections

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the HDC HP 550 F 70, a specialized insert tailored for female connections This component features a reliable crimp connection and is specifically designed for installation sizes of 550 Made from a durable copper alloy, the product meets RoHS compliance with applicable exemptions It is capable of operating effectively in temperatures ranging from -50 °C to 120 °C, making it versatile for various applications.

Features and Benefits:

•Copper alloy basic material.

•Net weight of 204 grams.

•Crimp connection type.

•Operating voltage up to 3,000 V.

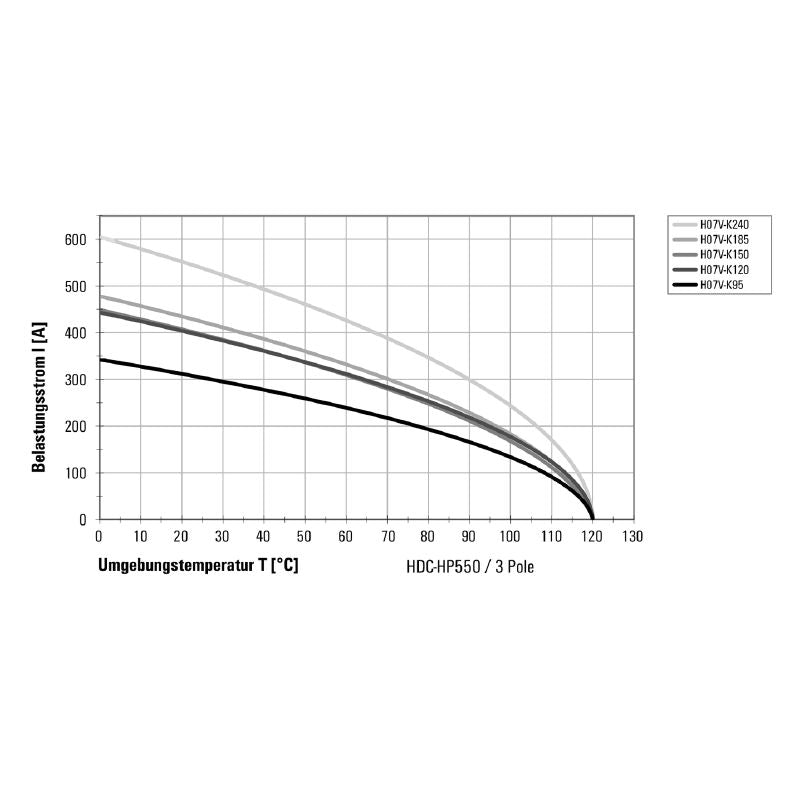

•Rated current of 250 A per DIN EN 61984 at ambient temperature of 20°C.

•Plugging cycles of at least 500.

•Pollution severity rated at PD 2 (PD 3).

•UL 94 flammability rating of V-0.

•Volume resistance of less than or equal to 0.1 mΩ.

•Insulation resistance of 10^10 Ω.

•Power contact rated impulse voltage of 15 kV.

•Electrical installations requiring high voltage and current connections.

Specifications:
