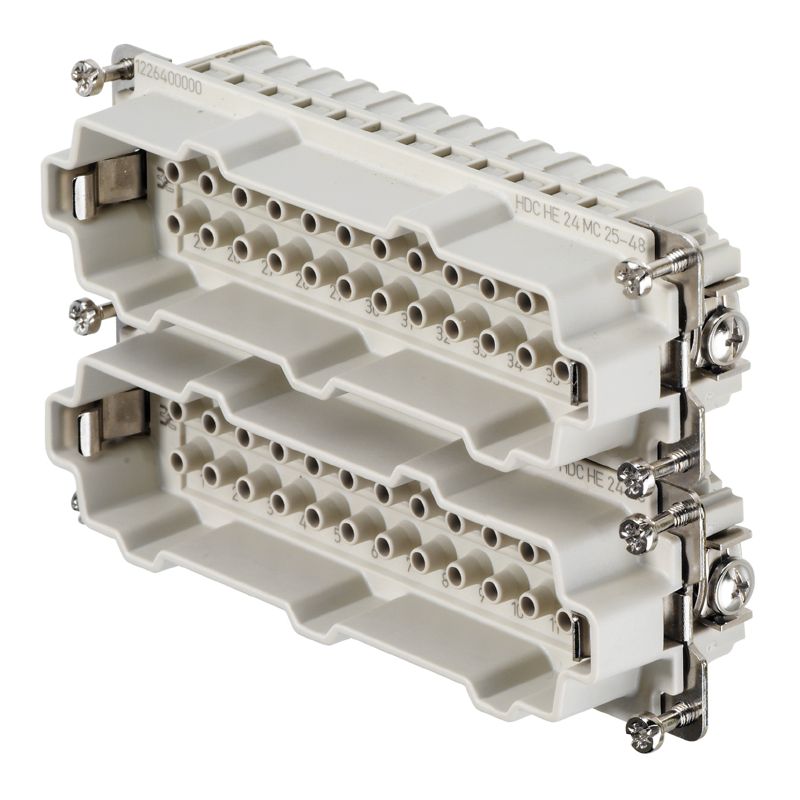

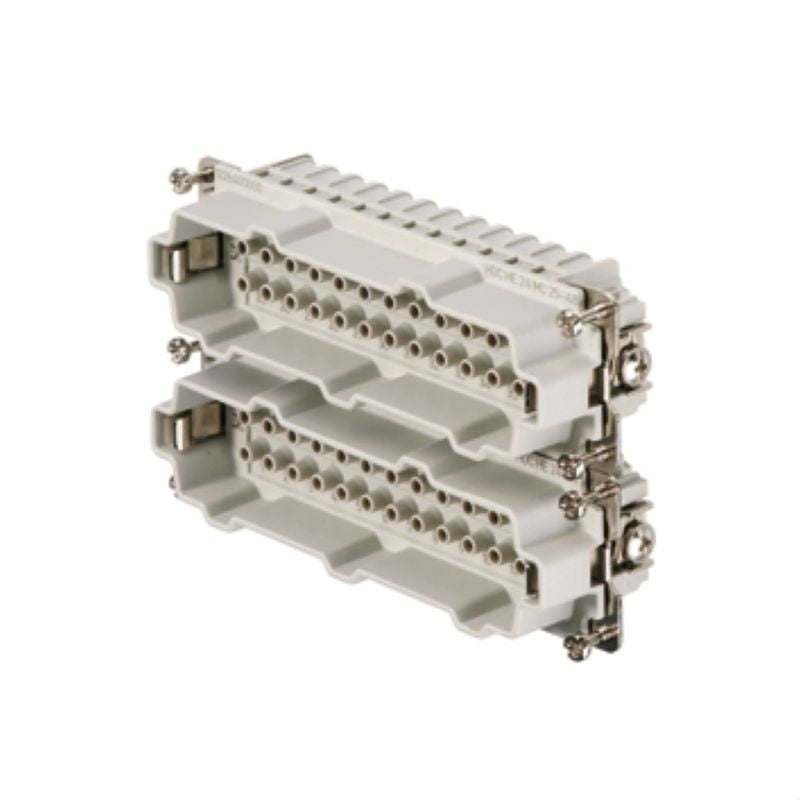

1226400000 - 24-Pole HDC Insert, Crimp Connection, 500V, 111mm Depth

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing this versatile HDC insert featuring a male configuration, designed to deliver high performance with a rating of 500 V and 16 A Built with 24 poles, it utilizes a reliable crimp connection for secure setups Installation dimensions are compact at 8, and it adheres to RoHS compliance standards, ensuring environmental safety Measuring 111 mm in depth, 34 mm in height, and 34 mm in width, this insert has a lightweight profile at just 63 g.

Crafted from a durable copper alloy, it offers resistance to a range of chemicals Additionally, the insulation materials are both UL-listed and railway certified, guaranteeing quality and safety for various applications.

Features and Benefits:

•RoHS compliant.

•Low smoke acc. DIN EN 45545-2.

•Plugging cycles rated ≥ 500.

•Pollution severity rated 3.

Specifications:
