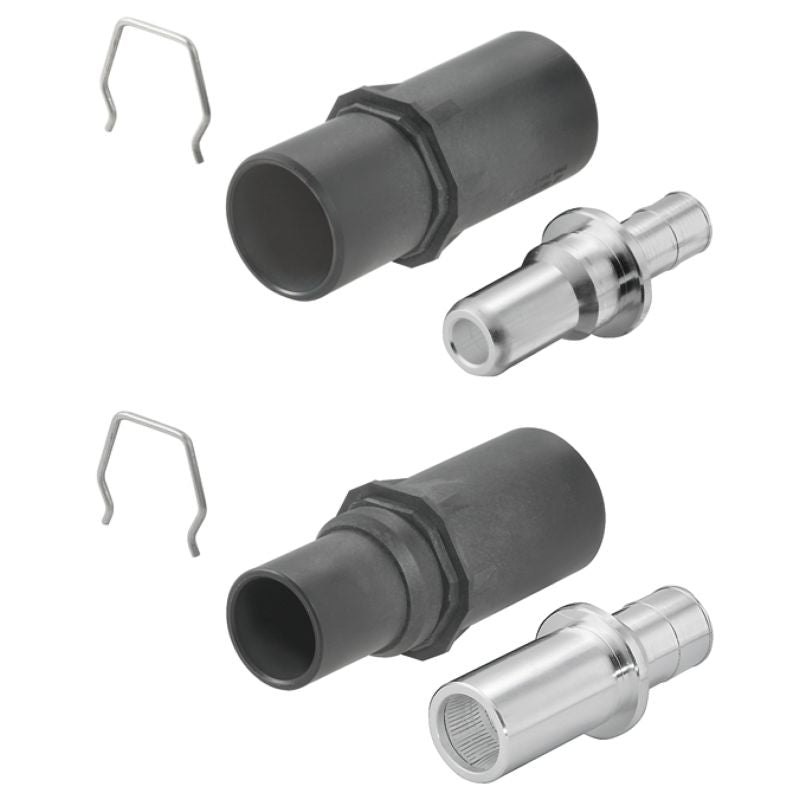

1220580000 - Copper Alloy HDC Insert for Pin Connections, 91mm Length

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the HDC insert, expertly crafted for secure pin connections and efficient crimp installations This component can withstand extreme temperatures, ranging from -50 °C to 120 °C, making it versatile for various applications It boasts a compact size with a length of 91 mm and a diameter of 43 mm, all while maintaining a lightweight design at just 125 g Constructed from a durable copper alloy and featuring a polyamide insulating layer, this insert is built for reliability and performance.

Features and Benefits:

•Compliant with RoHS exemption 6c.

•Rated current of 140 A according to DIN EN 61984 at 20°C.

•Rated maximum voltage of 3,000 V at total temperature of 60°C.

•Rated impulse voltage of 15 kV as per DIN EN 61984.

•Surface finish is silver passivated.

•The connector allows for over 500 plugging cycles.

Specifications:
