1220570000 - RoHS Compliant 25mm² Female Crimp Connector, 550 Size

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

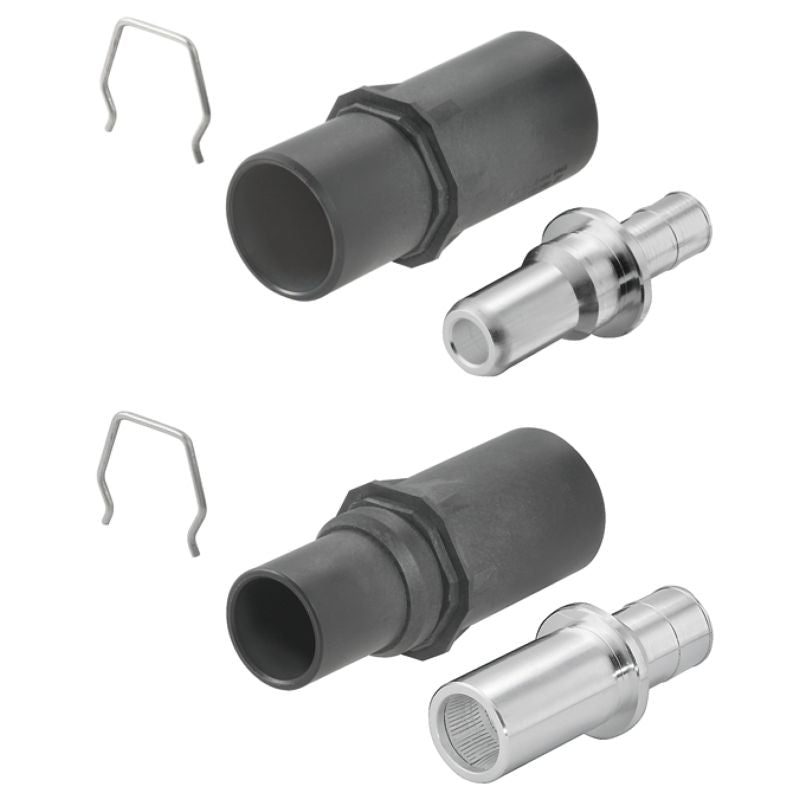

Introducing the HDC HP 550 F 25 insert—a crimp connection female connector with a comprehensive installation size of 550 This connector is RoHS compliant and is engineered to perform in extreme temperatures, ranging from -50 °C to 120 °C Crafted from a durable copper alloy, it features polyamide with fiber optic for outstanding insulation This product boasts an impressive insulation resistance of 10^10 Ω, a maximum operating voltage of 3,000 V, and is rated for a current capacity of 140 A.

Additionally, it can handle impulse voltages up to 15 kV and is built for a minimum of 500 plugging cycles, ensuring reliable and long-lasting performance in various applications.

Features and Benefits:

•Made from copper alloy and polyamide with fiber optic insulation.

•RoHS compliant with exemption for lead 7439-92-1.

•Capable of operating at high temperatures from -50 °C to 120 °C.

•High performance with a rated impulse voltage of 15 kV.

Specifications:
