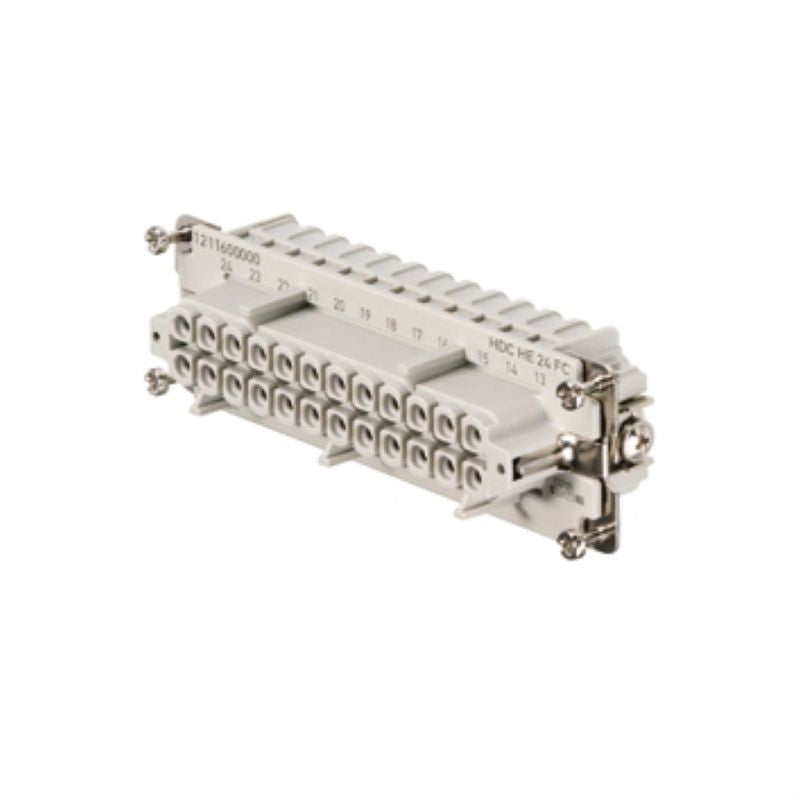

1211600000 - 24-Pole RoHS Compliant Connector, 500V, 68g, Crimp Connection

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

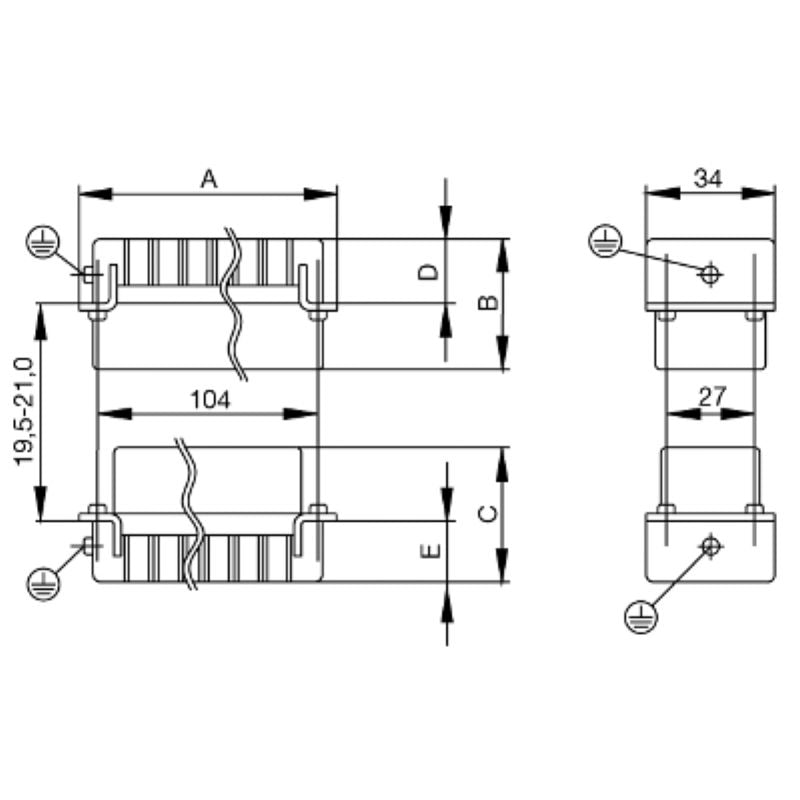

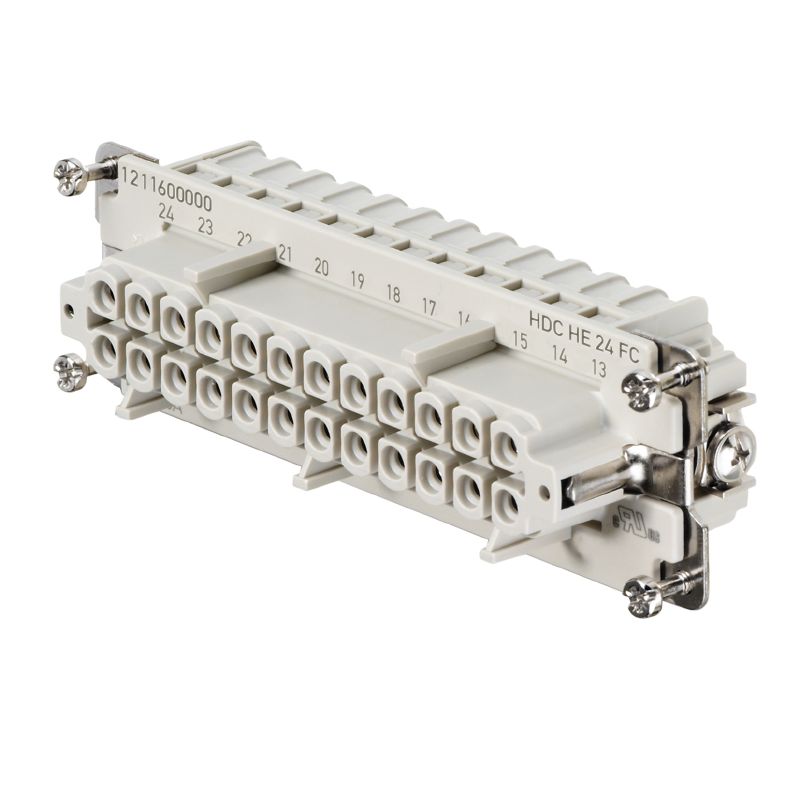

Introducing the HDC HE 24 FC, an exceptional component tailored for female applications This device comes equipped with 24 poles and is engineered to support voltages up to 500 V, boasting a current rating of 16 A It features a reliable crimp connection and an installation size of 8 Adhering to RoHS standards, it is also UL listed under certificate number E92202 With dimensions of 111 mm in depth, 33.

5 mm in height, and 34 mm in width, this component weighs a net of 68 grams, making it both compact and efficient for various applications.

Features and Benefits:

•RoHS compliant without exemption.

•Chemical resistant to substances like Acetone and Petrol.

•Uses copper alloy as the basic material.

•UL 94 flammability rating of V-0.

•Plugging cycles rated at ≥ 500.

•Low smoke generation as per DIN EN 45545-2.

Specifications:
