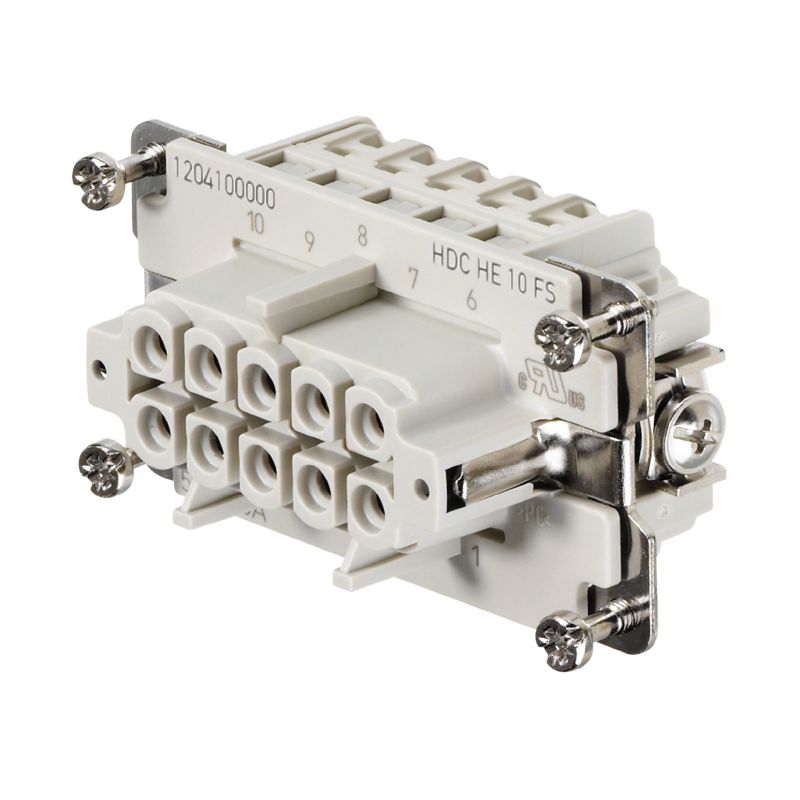

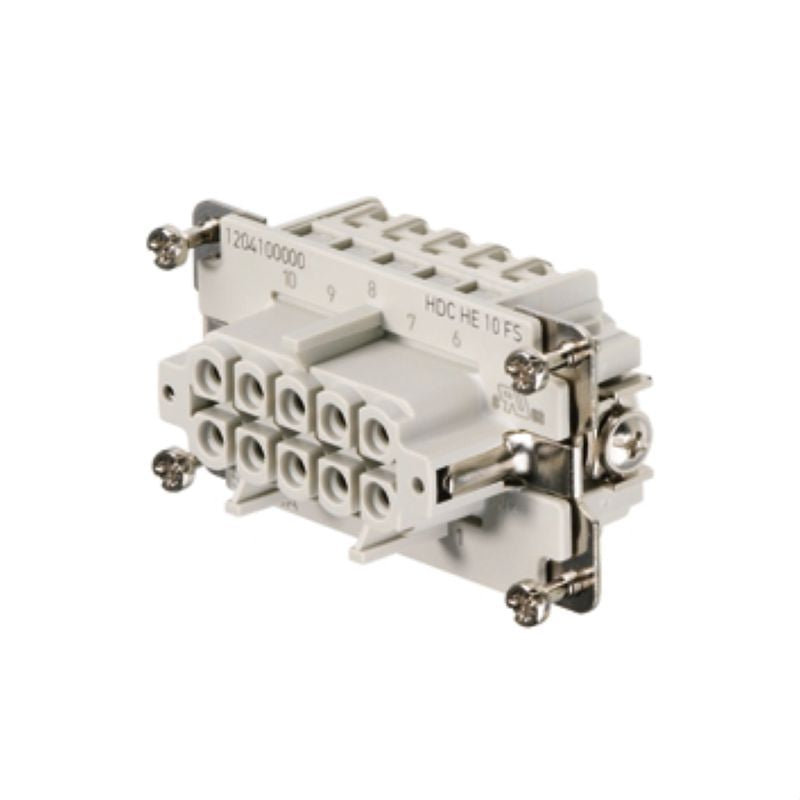

1204100000 - 10-Pole Female Connector, 500V, RoHS Compliant, 64mm Depth

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the HDC HE 10 FS female connector, a robust solution rated for 500 V and 16 A This connector is designed with ten poles and features a reliable screw connection in an installation size of 4 It adheres to RoHS standards and is certified with UL number E92202 Crafted from a durable copper alloy, it also utilizes high-quality insulating material reinforced with glass fiber for enhanced performance.

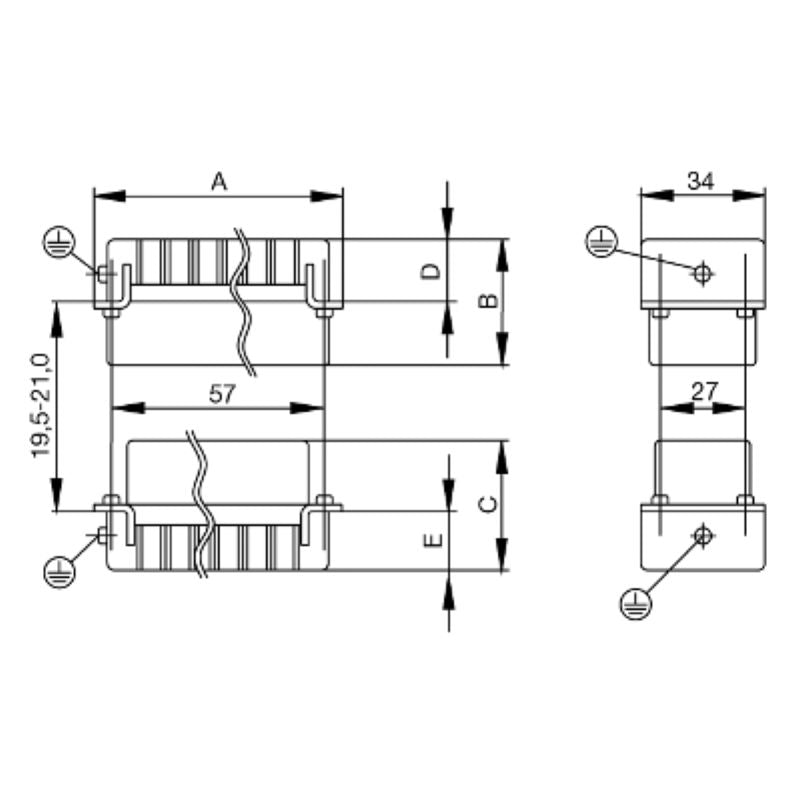

The connector's dimensions are 64 mm deep, 352 mm tall, and 34 mm wide, with a lightweight design of just 616 grams Functioning efficiently in temperature ranges from -40 °C to 125 °C, it accommodates a variety of wire sizes from AWG 12 to AWG 20, making it a versatile choice for your connectivity needs.

Features and Benefits:

•RoHS compliant with exemption.

•Constructed from a copper alloy.

•Includes a glass-fibre reinforced insulating material.

•Rated for 500 V and 16 A.

•Supports multiple wire sizes from AWG 12 to AWG 20.

Specifications:
