1120590000 - HDC Connector, 550A, Copper Alloy, 91mm Length, RoHS Compliant

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

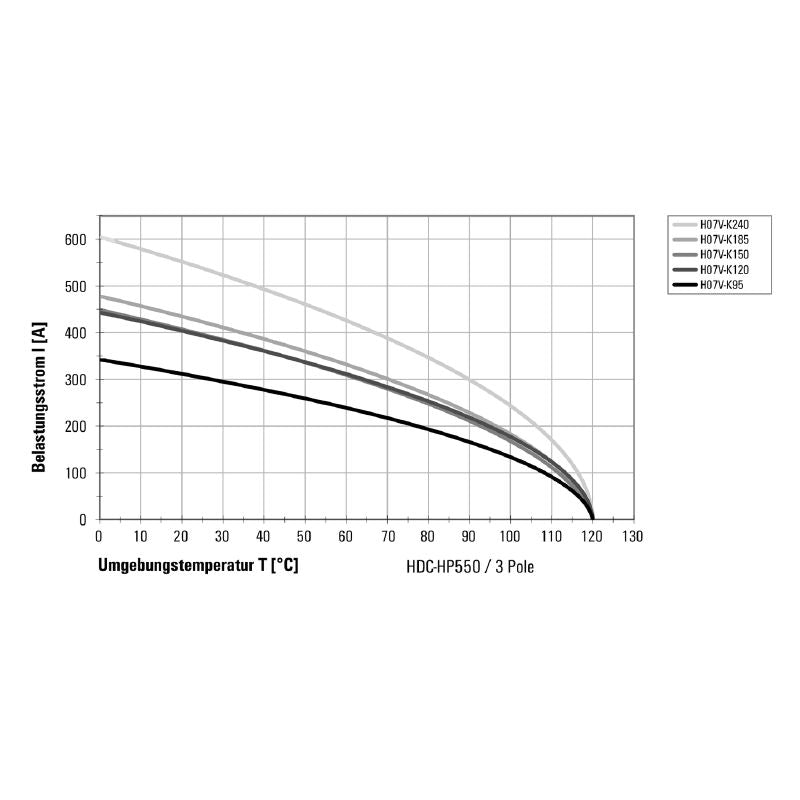

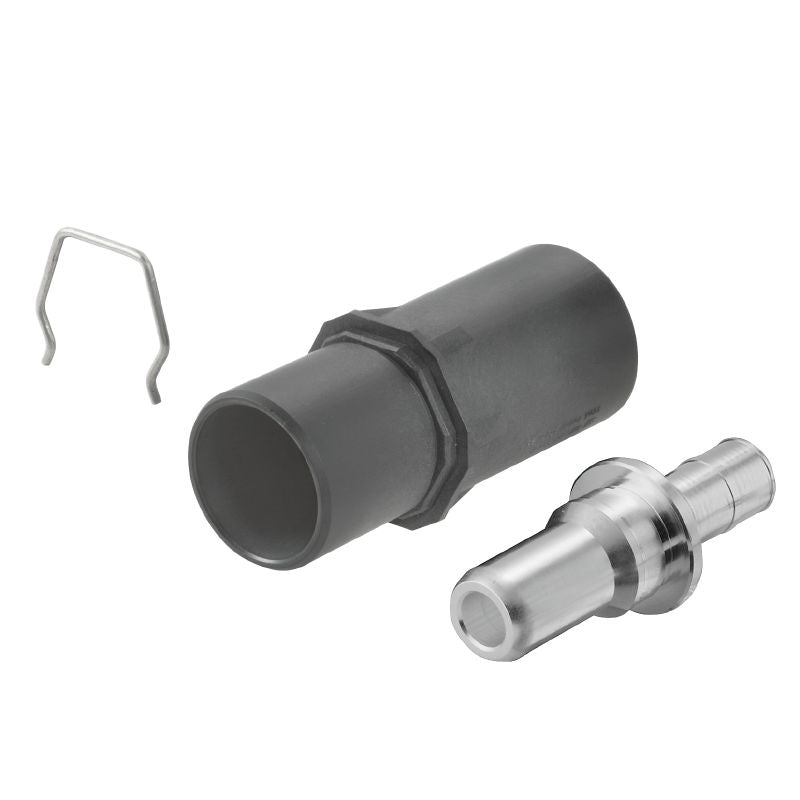

Introducing the HDC HP 550 M 240 connector, crafted with a pin crimp connection specifically for installation sizes of 550 Constructed from durable copper alloy, this connector supports a maximum rated current of 550 A in accordance with DIN EN 61984, even at a standard ambient temperature of 20°C Designed to endure extreme temperatures ranging from -50 °C to 120 °C, it boasts a voltage rating of 3,000 V.

With a compact diameter of 43 mm and a length of 91 mm, this lightweight connector weighs only 234 g, making it ideal for a range of demanding installations It meets RoHS compliance with an exemption status, and its environmental credentials include SVHC, particularly concerning lead The silver passivated surface enhances its resilience, ensuring reliability in various applications .

Features and Benefits:

•RoHS compliant with exemption 6c.

•Rated for 500 plugging cycles.

•Volume resistance of ≤0.1 mΩ.

•UL 94 flammability rating of V-0.

•Plugging connection of crimp type.

Specifications:
