1119110000 - Copper Alloy Crimp Connector, 550 Size, 91mm Long, 3,000V

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

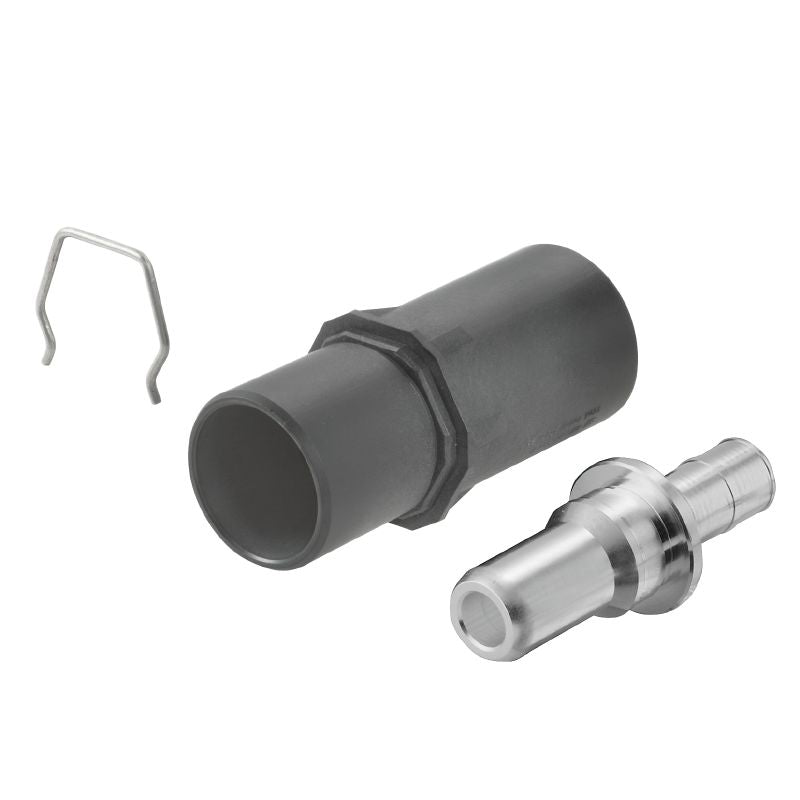

Introducing the HDC HP 550 M 150, expertly crafted for crimp connections with a capacity of 550 This robust component measures 91 mm in length and has a diameter of 43 mm, constructed from high-quality copper alloy and compliant with RoHS standards It operates efficiently within a temperature range of -50 °C to 120 °C and supports a maximum voltage of 3,000 V, ensuring reliability under various conditions.

Designed for durability, it withstands up to 500 plugging cycles and delivers a rated current of 405 A, meeting the DIN EN 61984 requirements.

Features and Benefits:

•RoHS compliant.

•Working temperature range of -50 °C to 120 °C.

•Made from copper alloy.

•Maximum operating voltage of 3,000 V.

•Can support up to 500 plugging cycles.

•Rated current capacity of 405 A.

•Insulated with polyamide and optical fiber.

•Surface is silver passivated.

Specifications:
