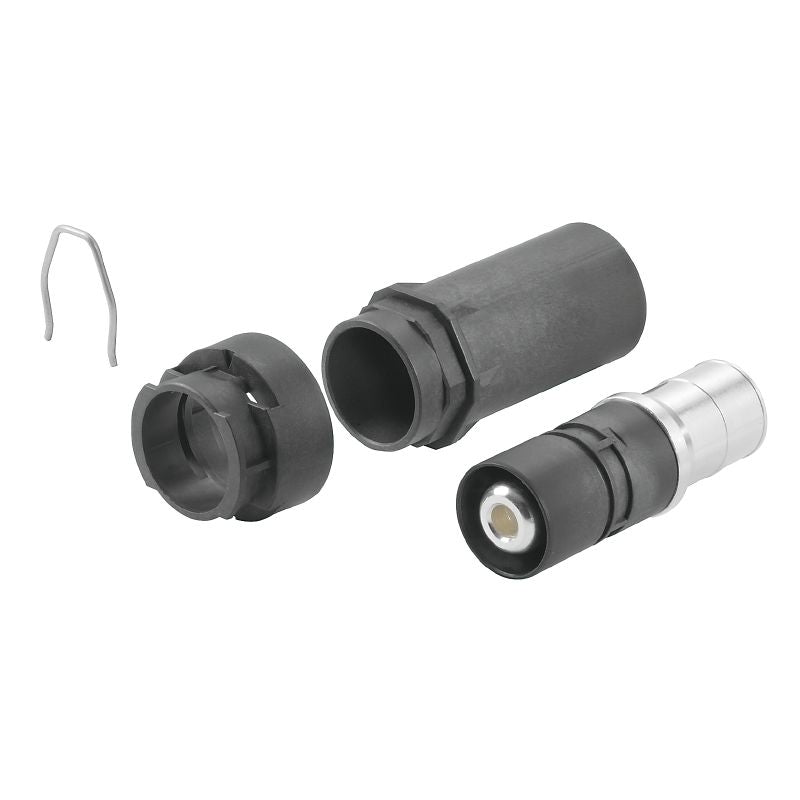

1119090000 - HDC HP 250 M 70 Crimp Connector, 250A, -50°C to 120°C

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the HDC HP 250 M 70, a reliable component designed for crimp connections with an extensive installation size of 250 This model can withstand temperatures as low as -50 °C and as high as 120 °C, making it suitable for varied environments It adheres to RoHS standards, with exemption 6c, ensuring eco-friendly compliance Crafted from a combination of copper alloy and PA GF for insulation, this component weighs 128 grams and supports a maximum operating voltage of 2,300 V, with a rated current capacity of 250 A.

Additionally, it’s robust enough for over 500 plugging cycles and boasts a rated impulse voltage of 15 kV, ensuring its effectiveness in multiple applications Notably, it contains lead categorized under REACH SVHC, reflecting thorough environmental compliance.

Features and Benefits:

•RoHS compliant with exemption.

•Operating voltage up to 2,300 V.

•Rated for a maximum current of 250 A.

•Surface finish is silver passivated.

•Insulation resistance of 10^10 Ω.

•High durability with ≥ 500 plugging cycles.

Specifications:
