1082690000 - IP68 Diecast Aluminum Enclosure, 144mm Depth, 101mm Height

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the HDC IP68 10B TSS, a robust enclosure engineered for exceptional protection with ratings of IP66, IP68, and IP69 when connected This model features a plug housing coupled with a clamping yoke for secure cable entry, specifically designed for M20 cable sizes Crafted from diecast aluminum, it also includes a rust-resistant stainless steel locking component Meeting RoHS standards, this product contains no substances of very high concern (SVHC) above the 0.

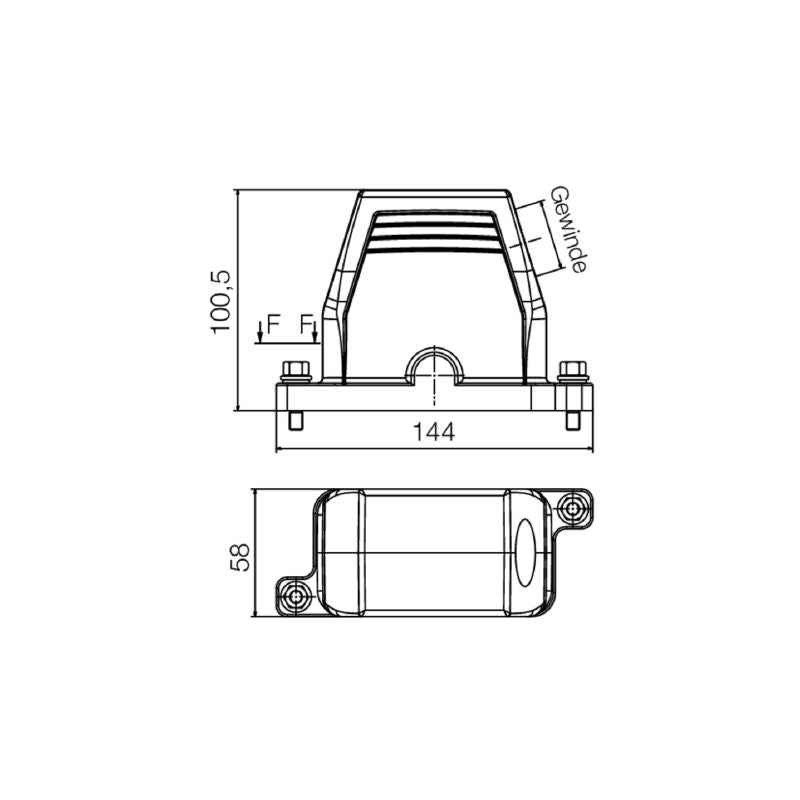

1 wt% threshold Built to endure harsh environments, it operates efficiently in extreme temperatures ranging from -50 °C to 125 °C and offers impressive resistance to a variety of chemicals including acetone, ethyl alcohol, water, and UV exposure With dimensions of 144 mm in depth, 101 mm in height, and 58 mm in width, this enclosure has a net weight of 495 g, making it a durable choice for your protective needs.

Features and Benefits:

•Compatible with ModuPlug.

•Powder-coated surface finish.

•EMC housings available.

•Clamping yoke connection for secure locking.

•Tightening torque of 6.5 Nm.

•Standard design for versatility.

Specifications:
