1079840000 - HDC 550 Crimp Insert, 98.3mm Copper Alloy, 430A Rating

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

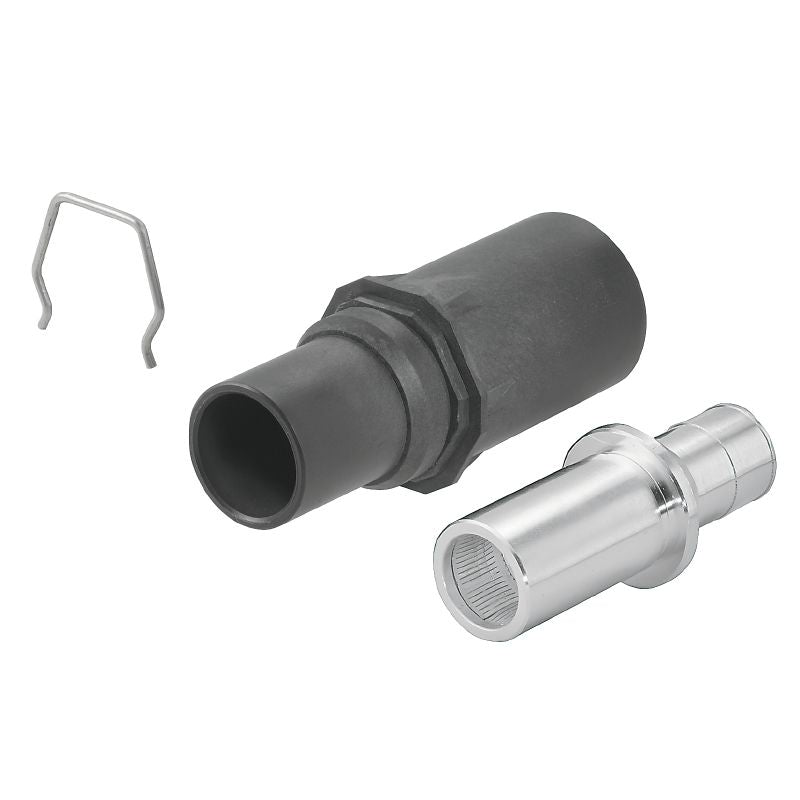

Introducing our HDC insert specifically crafted for female connections with crimp installations, measuring 550 This compliant product adheres to RoHS standards and meets the exemption 6c criteria Constructed from durable copper alloy, it boasts dimensions of 983 mm in length and 43 mm in diameter, weighing in at 228 g Engineered to function within a temperature range of -50 °C to 120 °C, it supports a maximum operating voltage of 3,000 V at 60°C.

The insert is designed forcrimp connections supporting power contacts and handles a rated current of 430 A, with rated impulse voltage up to 15 kV With a lifespan of at least 500 plugging cycles and a volume resistance of 01 mΩ or less, this product exemplifies reliability and efficiency in your electrical applications.

Features and Benefits:

•RoHS compliant with exemption.

•Copper alloy construction.

•Stripping length for performance contact is 30 mm.

•Silver passivated surface finish.

•Pollution severity rated at PD 2 (PD 3).

Specifications:
