1079830000 - High-Performance Crimp Connector, 150 mm², Copper Alloy

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

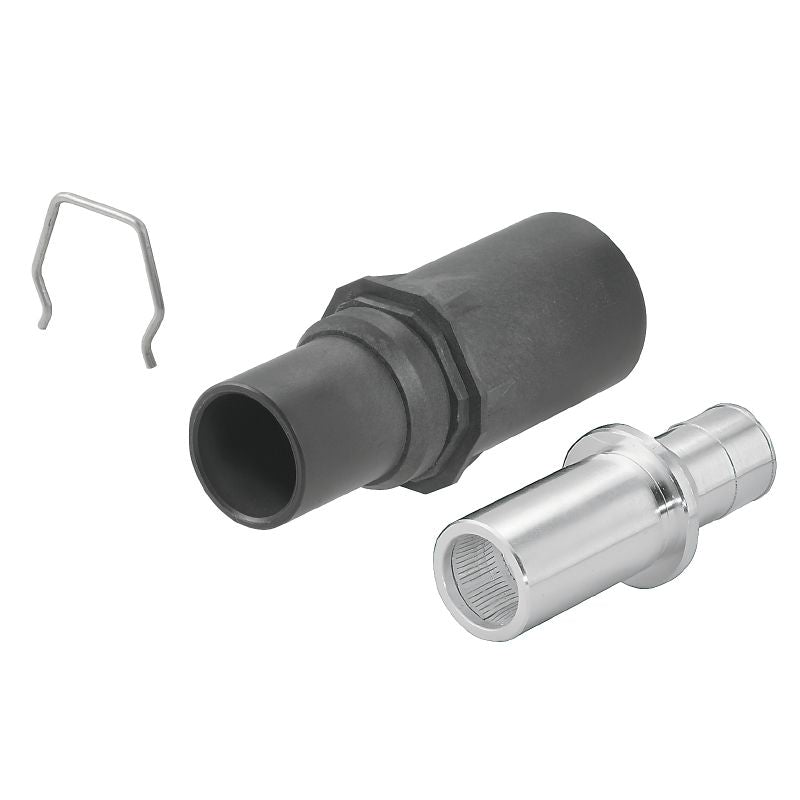

Introducing the HDC HP 550 F 150 female connector, expertly engineered for crimp connections and optimized for an installation size of 550 Made from a durable copper alloy, it features a silver passivated surface finish that enhances its performance This connector meets RoHS compliance and functions effectively within a temperature range of -50 °C to 120 °C With a conductor cross-section of 150 mm², it is ideal for high current applications, handling an operating voltage of up to 3,000 V at 60 °C.

Designed for longevity, it supports over 500 plugging cycles and offers exceptional performance with a minimal volume resistance of ≤01 mΩ.

Features and Benefits:

•Constructed from copper alloy with a silver passivated surface finish.

•RoHS compliant with exemption.

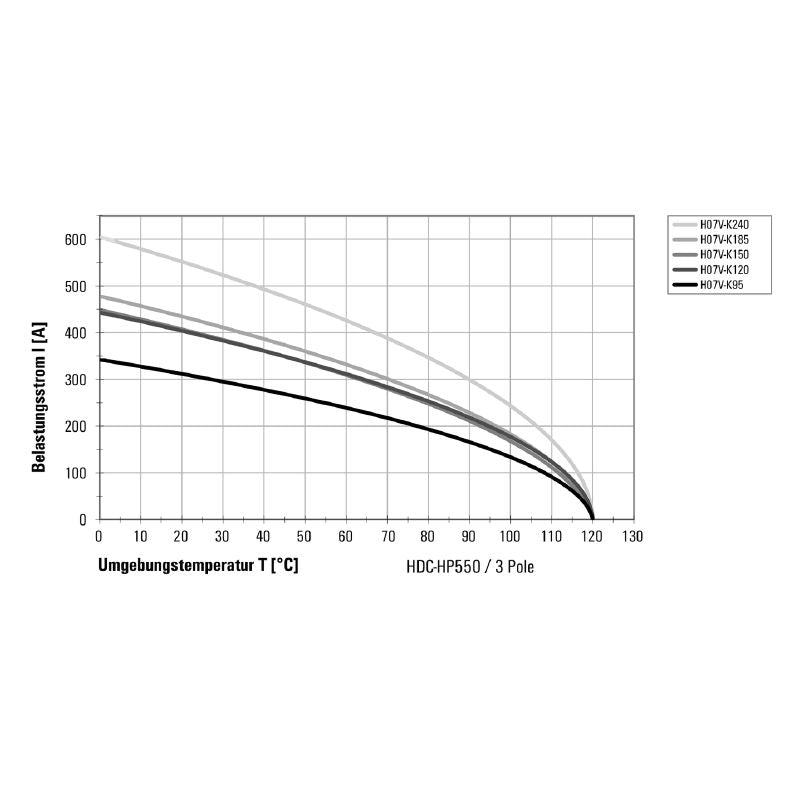

•Rated current capacity of 405 A at ambient temperature of 20°C.

•Operating voltage of 3,000 V at a total temperature of 60°C.

•Minimum volume resistance of ≤0.1 mΩ.

•Designed for at least 500 plugging cycles.
